| MODEL | HONDA CBR 600F2 1994 |
| Year | 1994 |
| Engine Type | Four stroke, transverse inline four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 598 cc / 36.5 cu in |
| Bore X Stroke | 65 x 45.2 mm |
| Compression Ratio | 11.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 72.9 kW / 100 hp @ 12000 rpm |
| Max Torque | 63.7 Nm / 47 lb-ft @ 10500 rpm |
| Ignition | Digital |
| Induction | 4x 34 mm Mikuni carburetors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel |
| Front Suspension | 41 mm telescopic fork, stepless preload and rebound adjustable, 130 mm / 5.1 in travel |
| Rear Suspension | Pro-Link monoshock, 7-step preload, stepless rebound and compression adjustable damper with gas-charged remote reservoir, 109 mm / 4.3 in travel |
| Front Brakes | 2x 276 mm discs, 2-piston calipers |
| Rear Brakes | Single 218 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2150 mm / 84.6 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 810 mm / 31.9 in |
| Wheelbase | 1410 mm / 55.5 in |
| Ground Clearance | — |
| Dry Weight | 195 kg / 429 lbs |
| Wet Weight | 206 kg / 455 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/60 ZR17 |
| Rear Tyre | 160/60 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 17 Litres / 4.4 US gal |
| Fuel Consumption | 4.9 L/100 km / 20.4 km/l / 48 US mpg |
| Top Speed | 236 km/h / 147 mph |

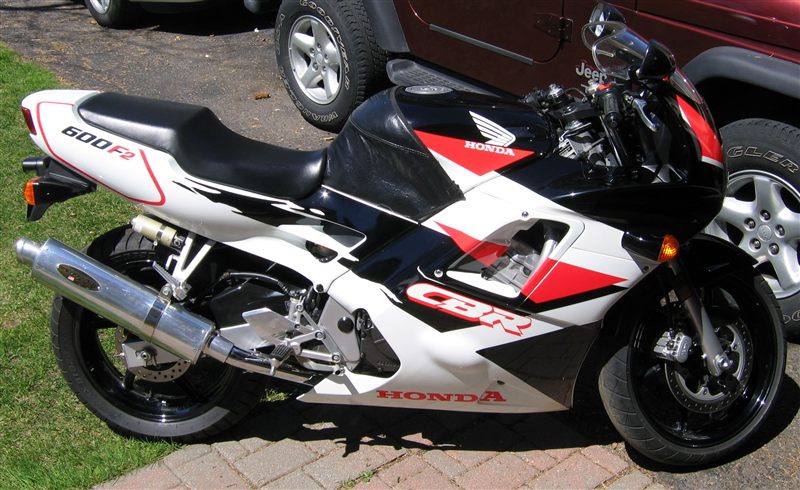

Photo: Skeough at English Wikipedia, Public domain, via Wikimedia Commons

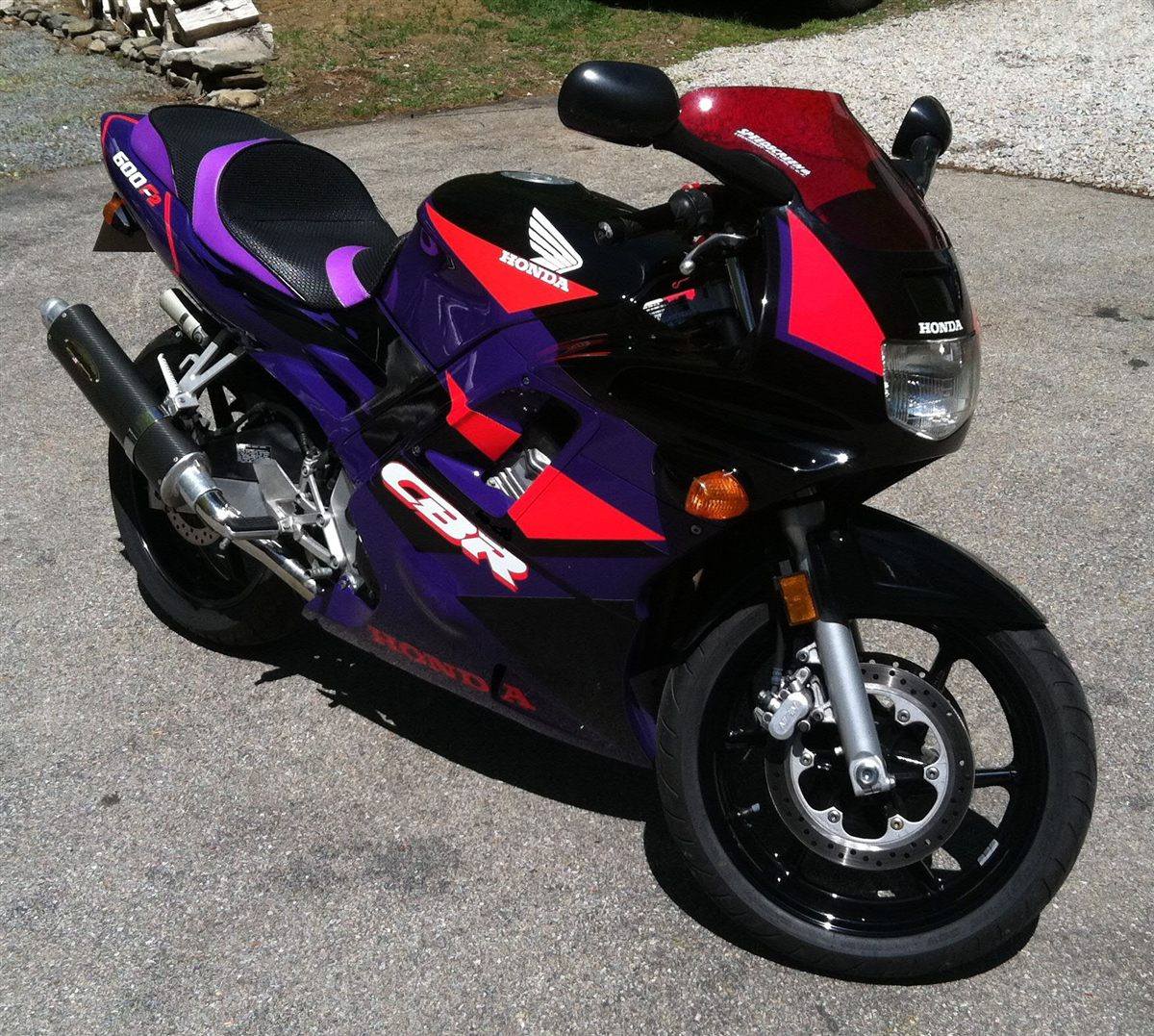

Photo: Ronjoe, CC BY-SA 3.0, via Wikimedia Commons
1994 was the last year of the CBR600F2 before the F3 took over. Facing newer rivals such as Yamaha's FZR600R, the ageing Honda was still judged the class benchmark in contemporary group tests, though some rivals offered better value. It carried over the same engine and chassis used since 1991.
