| MODEL | HONDA CBR 600F4 1999 |
| Year | 1999 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 599 cc / 36.55 cu in |
| Bore X Stroke | 67 x 42.5 mm |
| Compression Ratio | 12.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 81 kW / 110.2 hp @ 12500 rpm |
| Max Torque | 65 Nm / 6.6 kgf-m / 47.9 lb-ft @ 10500 rpm |
| Ignition | Digital transistorized |
| Induction | 4x 36.5 mm slanted flat-side CV carburetors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 Speed |
| Clutch | Multi-plate wet, cable operated |
| Final Drive | Chain, #525 O-ring sealed |
| CHASSIS SPECS | |
| Frame | Aluminium twin spar |
| Front Suspension | 43 mm fully adjustable cartridge fork, 120 mm / 4.7 in travel |
| Rear Suspension | Pro-Link with fully adjustable gas-charged remote-reservoir damper, 120 mm / 4.7 in travel |
| Front Brakes | 2x 296 mm discs, 4-piston calipers |
| Rear Brakes | Single 220 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2065 mm / 81.3 in |
| Overall Width | 685 mm / 27.0 in |
| Overall Height | 1135 mm / 44.7 in |
| Seat Height | 810 mm / 31.9 in |
| Wheelbase | 1395 mm / 54.9 in |
| Ground Clearance | 135 mm / 5.3 in |
| Dry Weight | 168 kg / 370 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 18 Litres / 4.8 US gal |
| Fuel Consumption | — |
| Top Speed | 257.5 km/h / 160 mph |

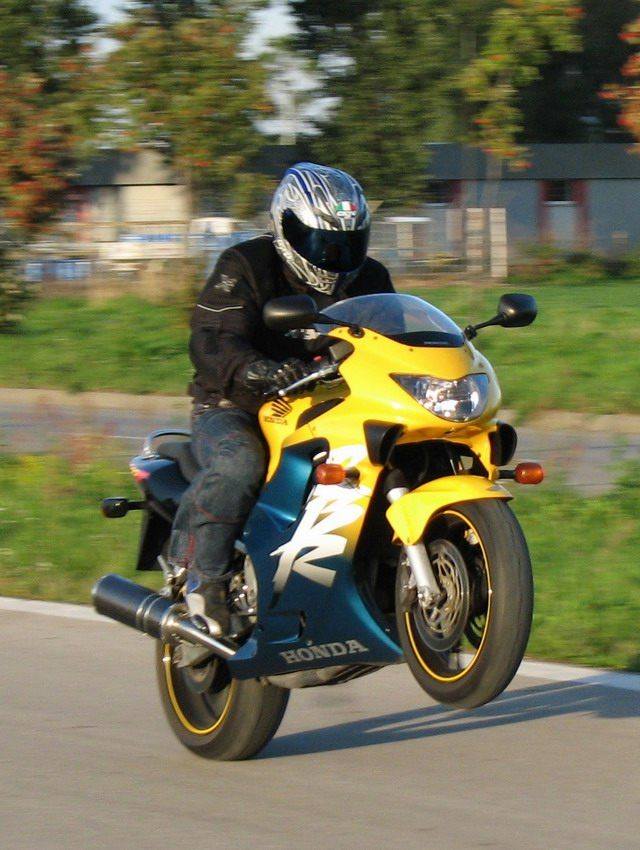

Photo: Gojo at Polish Wikipedia, CC BY-SA 3.0, via Wikimedia Commons
Photo: Maxquijano, Public domain, via Wikimedia Commons
The 1999 CBR600F4 was a ground-up redesign and the biggest change in the CBR600 line since 1987: a new aluminium twin-spar frame replaced the steel one, and the engine got a bigger bore, shorter stroke, larger valves and a higher rev ceiling for about 110 hp. Weight dropped substantially, it gained four-piston front calipers and a wider 180-section rear tyre. It tied with Yamaha's R6 in contemporary shootouts, praised as the more versatile of the two.
