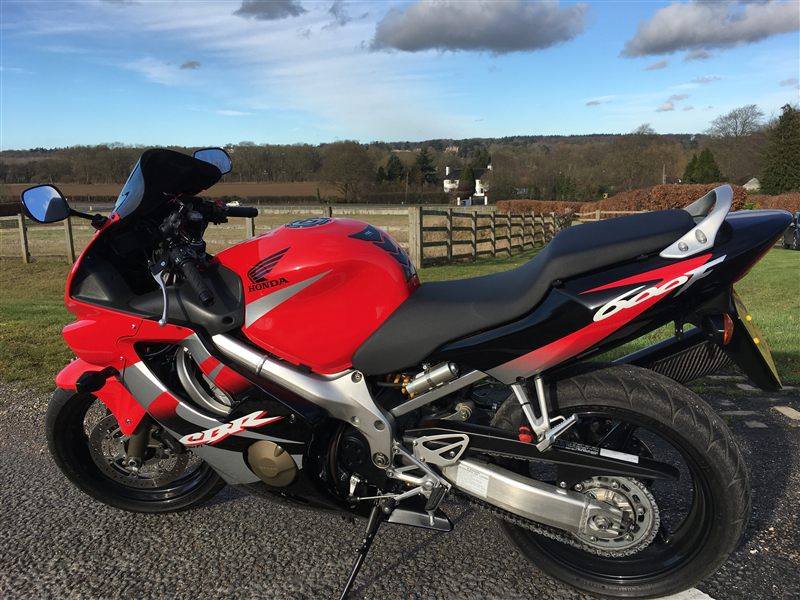

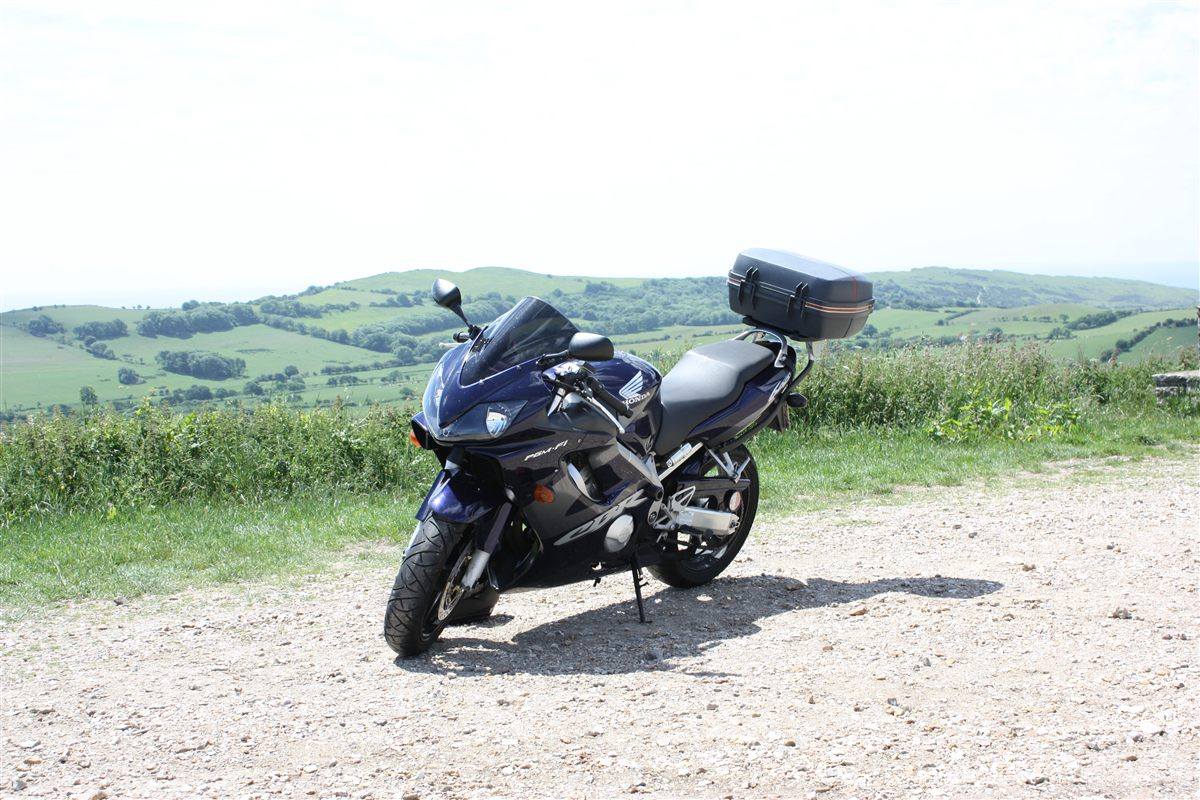

| MODEL | HONDA CBR 600F4I 2004 |
| Year | 2004 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 599 cc / 36.5 cu in |
| Bore X Stroke | 67 x 42.5 mm |
| Compression Ratio | 12.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 81 kW / 110.2 hp @ 12500 rpm |
| Max Torque | 65 Nm / 6.6 kgf-m @ 10500 rpm |
| Ignition | Digital transistorized, computer-controlled with 3-D mapping |
| Induction | Electronic fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 Speed |
| Clutch | Wet, multiple discs, cable operated |
| Final Drive | #525 O-ring-sealed chain |
| CHASSIS SPECS | |
| Frame | Aluminium twin spar |
| Front Suspension | 43 mm fully adjustable cartridge-type fork, 120 mm / 4.7 in travel |
| Rear Suspension | Pro-Link with fully adjustable gas-charged remote-reservoir damper, 120 mm / 4.7 in travel |
| Front Brakes | 2 x 296 mm discs, 4-piston calipers |
| Rear Brakes | Single 220 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2060 mm / 81.1 in |
| Overall Width | 685 mm / 26.9 in |
| Overall Height | 1135 mm / 44.6 in |
| Seat Height | 805 mm / 31.9 in |
| Wheelbase | 1386 mm / 54.9 in |
| Ground Clearance | 135 mm / 5.3 in |
| Dry Weight | 170 kg |
| Wet Weight | 193 kg / 425.5 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 18 Litres / 4.8 US gal |
| Fuel Consumption | 19 km/L |
| Top Speed | 256.3 km/h |
The 2004 F4i continued as the sensible alternative to the sharper CBR600RR, offering fuel injection, an aluminium chassis and adjustable suspension with a roomier riding position and a one-piece seat. It was pitched at riders wanting one bike for the commute, canyon roads and occasional track days.
