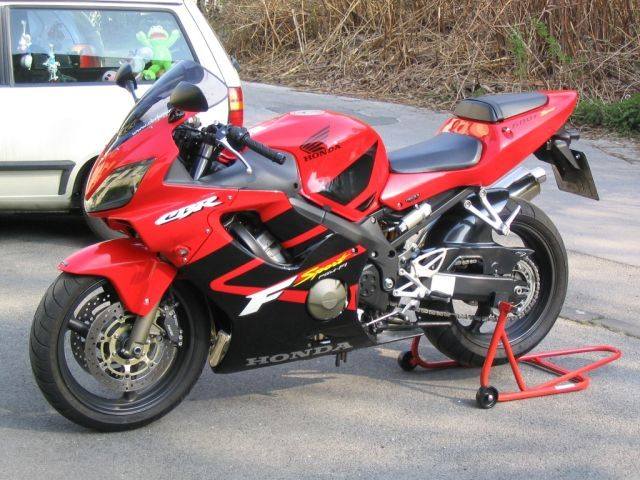

| MODEL | HONDA CBR 600F4I SPORT 2002 |
| Year | 2002 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 599 cc / 36.5 cu in |
| Bore X Stroke | 67 x 42.5 mm |
| Compression Ratio | 12.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 81 kW / 110.2 hp @ 12500 rpm |
| Max Torque | 65 Nm / 6.6 kgf-m @ 10500 rpm |
| Ignition | Digital transistorized, computer-controlled with 3-D mapping |
| Induction | Electronic fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 Speed |
| Clutch | Wet, multiple discs, cable operated |
| Final Drive | #525 O-ring-sealed chain |
| CHASSIS SPECS | |
| Frame | Aluminium twin spar |
| Front Suspension | 43 mm fully adjustable cartridge-type fork, 120 mm / 4.7 in travel |
| Rear Suspension | Pro-Link with fully adjustable gas-charged remote-reservoir damper, 120 mm / 4.7 in travel |
| Front Brakes | 2 x 296 mm discs, 4-piston calipers |
| Rear Brakes | Single 220 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2060 mm |
| Overall Width | 685 mm / 26.9 in |
| Overall Height | 1135 mm / 44.6 in |
| Seat Height | 805 mm / 31.9 in |
| Wheelbase | 1386 mm / 54.9 in |
| Ground Clearance | 135 mm / 5.3 in |
| Dry Weight | 167 kg / 368 lb |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 18 Litres / 4.8 US gal |
| Fuel Consumption | 19 km/L |
| Top Speed | 256.3 km/h |
The 2002 Sport continued the track-biased variant of the F4i: split seat, black frame, no centre stand and no grab rail, making it slightly lighter than the standard bike. Engine and chassis figures are listed as identical to the regular CBR600F4i.
