| MODEL | HONDA CBR 600RR 2006 |
| Year | 2006 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 599 cc / 36.5 cu in |
| Bore X Stroke | 67 x 42.5 mm |
| Compression Ratio | 12.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 87.2 kW / 117 hp @ 13000 rpm |
| Max Torque | 66 Nm / 48.7 lb-ft @ 11000 rpm |
| Ignition | Computer-controlled digital transistorized with three-dimensional mapping |
| Induction | Dual Stage Fuel Injection (DSFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 Speed close-ratio |
| Clutch | — |
| Final Drive | #525 O-ring chain |
| CHASSIS SPECS | |
| Frame | Aluminium twin spar |
| Front Suspension | 41 mm inverted HMAS cartridge fork, adjustable preload, rebound and compression damping, 119.5 mm travel |
| Rear Suspension | Unit Pro-Link HMAS single shock, adjustable preload, rebound and compression damping, 129.5 mm / 5.1 in travel |
| Front Brakes | 2 x 310 mm discs, radial-mounted 4-piston calipers |
| Rear Brakes | Single 220 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2065 mm / 81.3 in |
| Overall Width | 685 mm / 26.9 in |
| Overall Height | 1135 mm / 44.6 in |
| Seat Height | 820 mm / 32.3 in |
| Wheelbase | 1370 mm / 53.9 in |
| Ground Clearance | — |
| Dry Weight | 163.7 kg / 361 lb |
| Wet Weight | 191 kg / 421 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 18 Litres / 4.8 US gal |
| Fuel Consumption | — |
| Top Speed | 255.9 km/h |

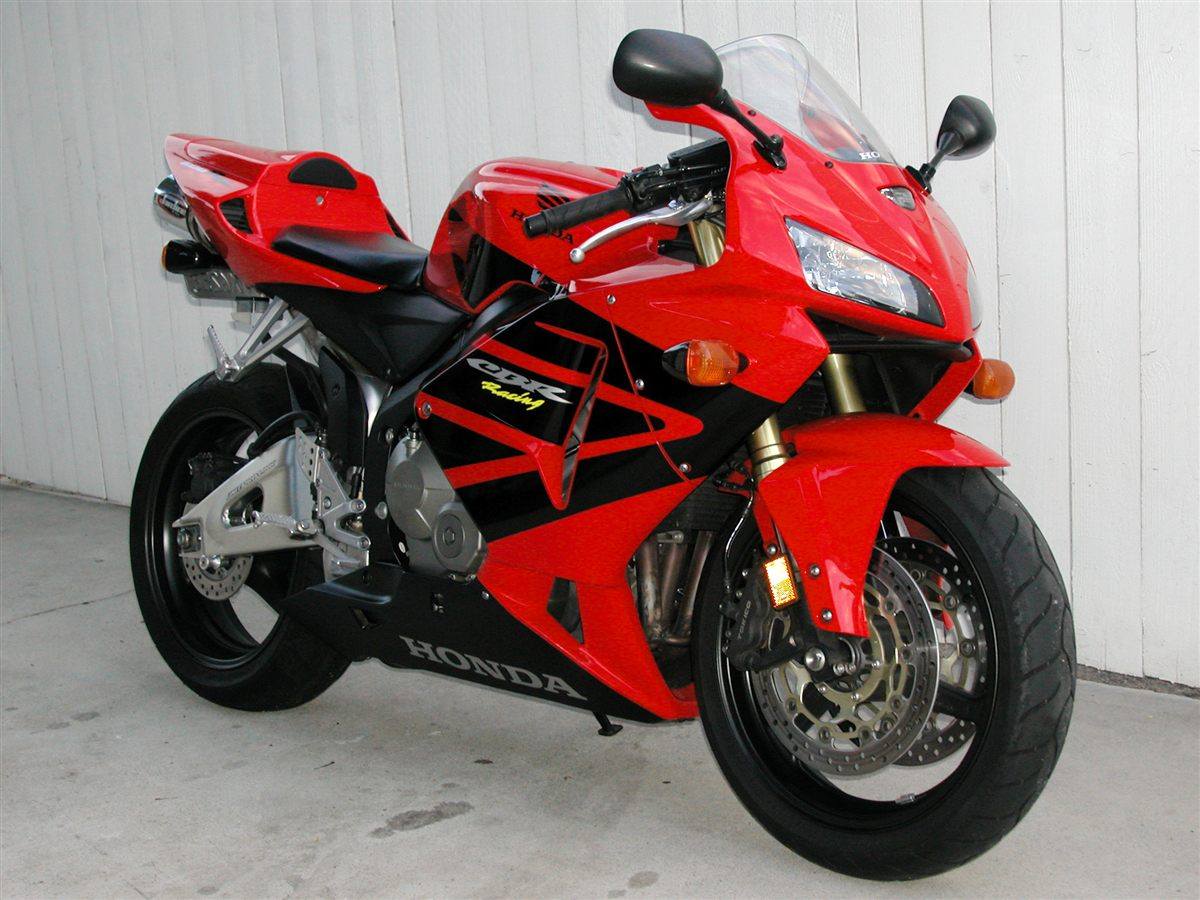

Photo: Rich Niewiroski Jr., CC BY 2.5, via Wikimedia Commons
Photo: Future daughter, CC BY 2.5, via Wikimedia Commons
The 2006 CBR600RR was mechanically unchanged from the revised 2005 bike, with new Pearl Orange/Black Tribal and Light Metallic Silver colour schemes. It was the last year of the second-generation RR before the all-new 2007 model.
