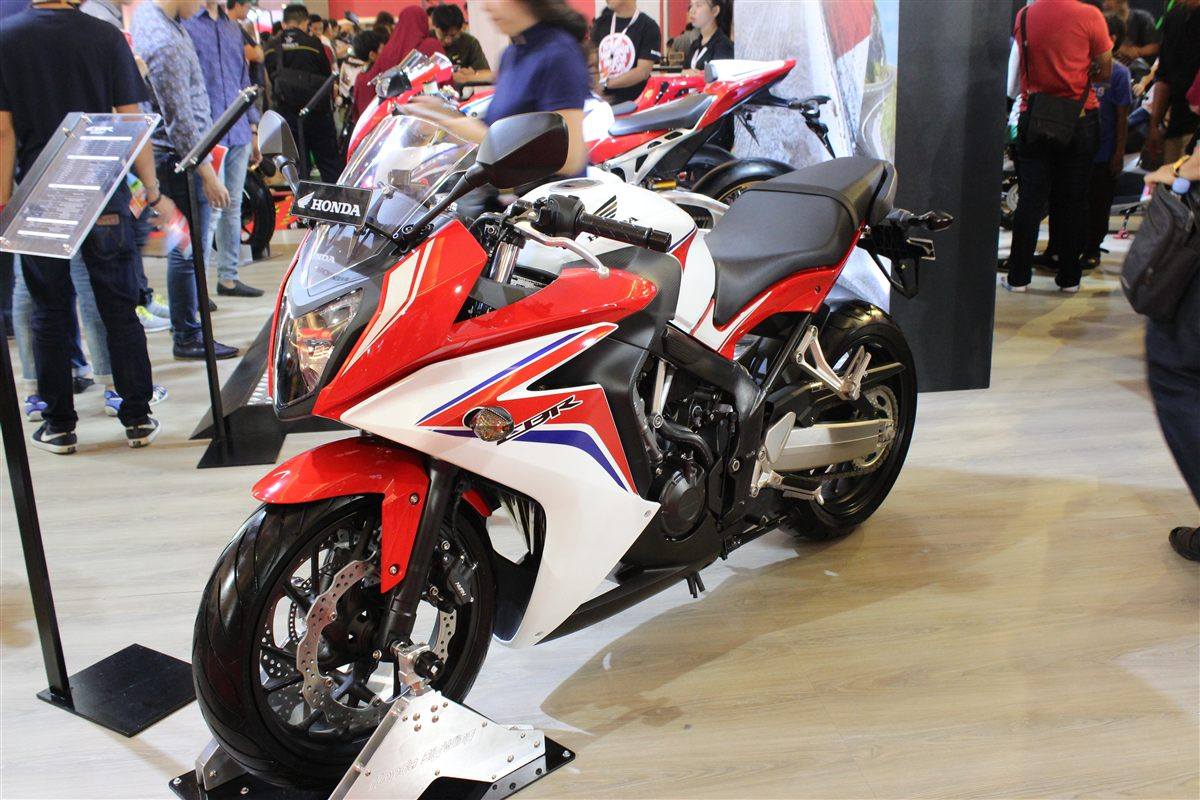

| MODEL | HONDA CBR 650F 2016 |
| Year | 2016 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 649 cc / 39.6 cu in |
| Bore X Stroke | 67 x 46 mm |
| Compression Ratio | 11.4:1 |
| Cooling System | Liquid cooled |
| Max Power | 64 kW / 85.8 hp @ 11000 rpm |
| Max Torque | 63 Nm / 46.4 lb-ft @ 8000 rpm |
| Ignition | Digital transistorised with electronic advance |
| Induction | PGM-FI electronic fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed, close-ratio |
| Clutch | Wet, multiplate with coil springs |
| Final Drive | #525 O-ring chain |
| CHASSIS SPECS | |
| Frame | Steel diamond |
| Front Suspension | 41 mm conventional telescopic fork, 108 mm / 4.3 in travel |
| Rear Suspension | Monoshock with adjustable preload, 127 mm / 5.0 in travel |
| Front Brakes | 2 x 320 mm discs, 2 piston calipers |
| Rear Brakes | Single 220 mm disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2110 mm / 83 in |
| Overall Width | 755 mm / 29.7 in |
| Overall Height | 1145 mm / 45.0 in |
| Seat Height | 810 mm / 31.9 in |
| Wheelbase | 1450 mm / 57.0 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | — |
| Wet Weight | 212 kg / 461 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70-ZR17M/C (58W) |
| Rear Tyre | 180/55-ZR17M/C (73W) |
| FUEL SYSTEM | |
| Fuel Capacity | 17.3 Litres / 4.5 US gal |
| Fuel Consumption | — |
| Top Speed | — |
2016 was the last year of the original CBR650F before Honda's 2017 update. It kept the smooth 649 cc four, steel twin-spar chassis and comfortable half-faired layout, positioned against rival twins and fours in the 650 class as a practical, easy-going sports bike.
