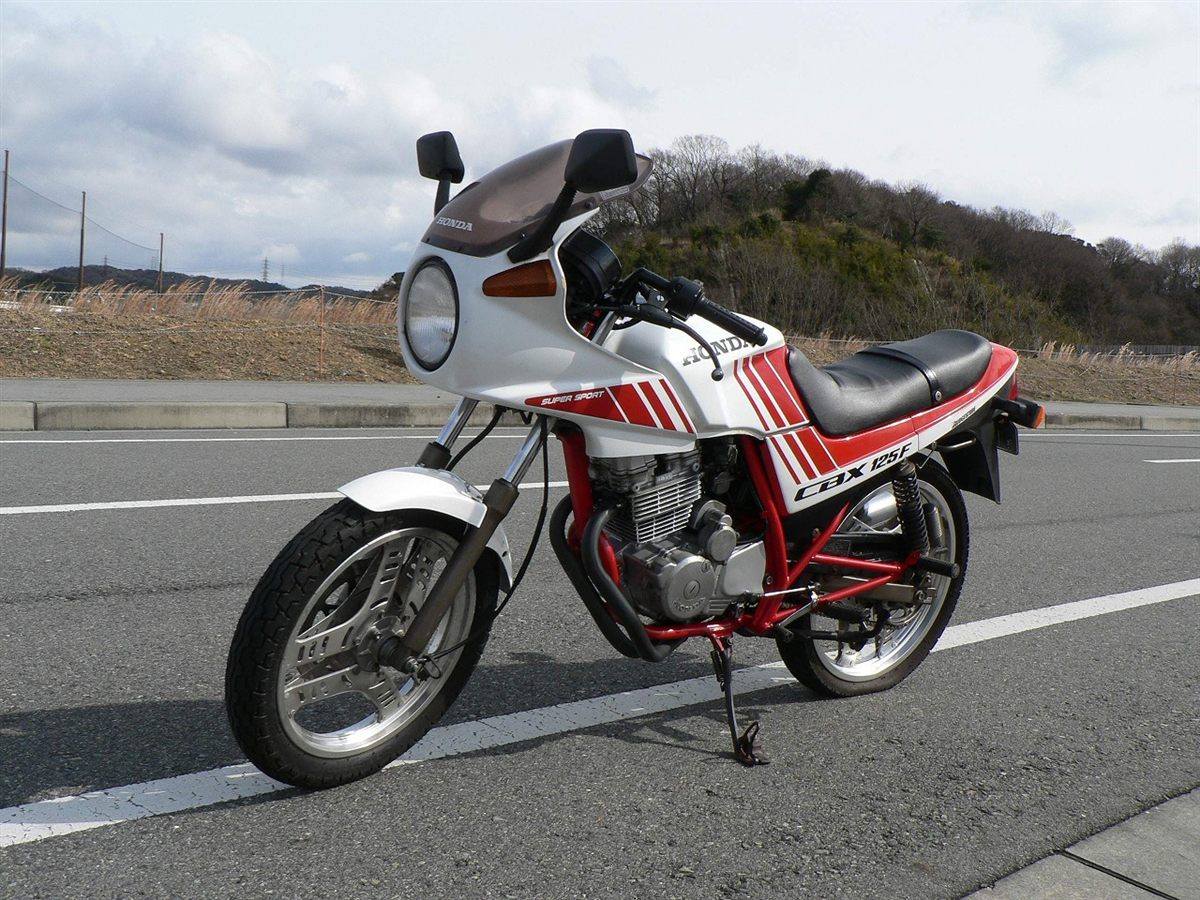

| MODEL | HONDA CBX 125F 1984 - 1986 |
| Year | 1984 - 1986 |
| Engine Type | Four stroke, single cylinder, DOHC, 4 valve (RFVC) |
| Displacement / Capacity | 124 cc / 7.5 cu in |
| Bore X Stroke | 58 x 47 mm |
| Compression Ratio | 11.0:1 |
| Cooling System | Air cooled |
| Max Power | 12.6 kW / 17 hp @ 11500 rpm |
| Max Torque | 10.8 Nm / 8.0 lb-ft @ 9500 rpm |
| Ignition | CDI |
| Induction | PF40 carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Semi-double cradle |
| Front Suspension | Telescopic forks |
| Rear Suspension | Swinging arm |
| Front Brakes | Single disc, 2 piston caliper |
| Rear Brakes | Drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | — |
| Ground Clearance | 180 mm / 7.1 in |
| Dry Weight | 105 kg / 231 lbs |
| Wet Weight | 117 kg / 258 lbs |
| WHEEL SPECS | |
| Front Tyre | 80/100-16 |
| Rear Tyre | 90/90-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 12 Litres / 3.2 US gal |
| Fuel Consumption | 64 km/L @ 50 km/h (test figure) |
| Top Speed | — |
Honda's CBX125F replaced the CB125JX with a high-revving four-valve DOHC single using radial valves and twin carburettors, wrapped in sporty styling with a small cockpit fairing and six-speed gearbox. Revving past 11,000 rpm for its 17 PS, it was one of the livelier learner-legal 125s of the mid-1980s.
