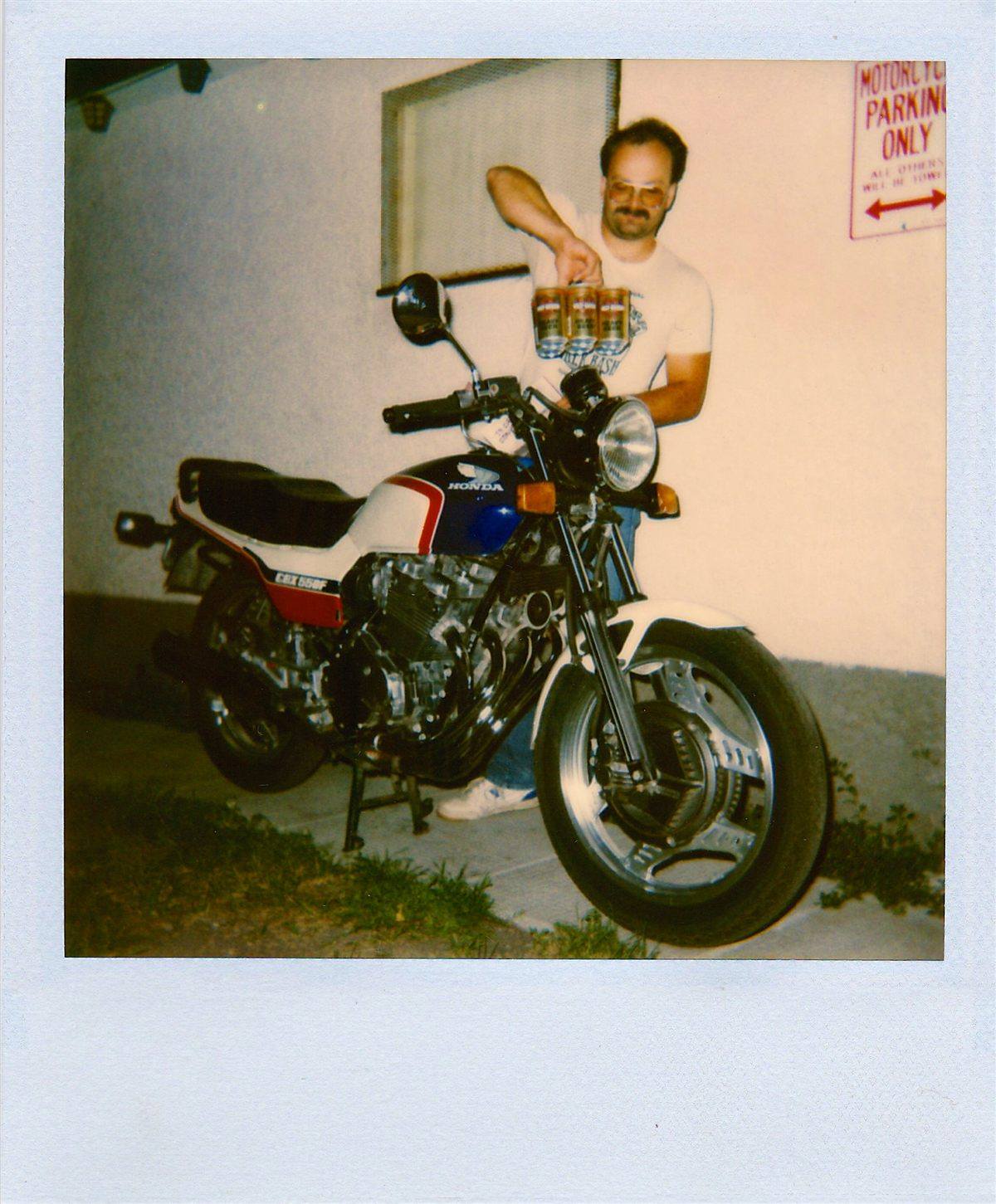

| MODEL | HONDA CBX 550F 1984 - 1986 |
| Year | 1984 - 1986 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder |
| Displacement / Capacity | 572 cc / 34.9 cu in |
| Bore X Stroke | 59.2 x 52 mm |
| Compression Ratio | 9.5:1 |
| Cooling System | Air cooled |
| Max Power | 47.4 kW / 65 hp @ 10000 rpm |
| Max Torque | 49 Nm / 36.1 lb-ft @ 8000 rpm |
| Ignition | Transistorised |
| Induction | 4x 30 mm Keihin CV carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Duplex cradle, tubular steel |
| Front Suspension | Air-assisted telescopic forks with anti-dive |
| Rear Suspension | Pro-Link, air-assisted |
| Front Brakes | 2x 230 mm inboard discs, 2 piston calipers |
| Rear Brakes | Single 230 mm inboard disc |
| DIMENSION SPECS | |
| Overall Length | 2085 mm / 82.1 in |
| Overall Width | 740 mm / 29.1 in |
| Overall Height | 1080 mm / 42.5 in |
| Seat Height | 785 mm / 30.9 in |
| Wheelbase | 1380 mm / 54.3 in |
| Ground Clearance | — |
| Dry Weight | 184 kg / 406 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 3.60 H18 |
| Rear Tyre | 4.10 H18 |
| FUEL SYSTEM | |
| Fuel Capacity | 17 Litres / 4.5 US gal |
| Fuel Consumption | — |
| Top Speed | — |
Later CBX550Fs continued with little change until the model ended in 1986, keeping the 572 cc 16-valve four, six-speed gearbox and inboard disc brakes. It remained a compact, nimble middleweight that magazines rated alongside Kawasaki's GPz550.
