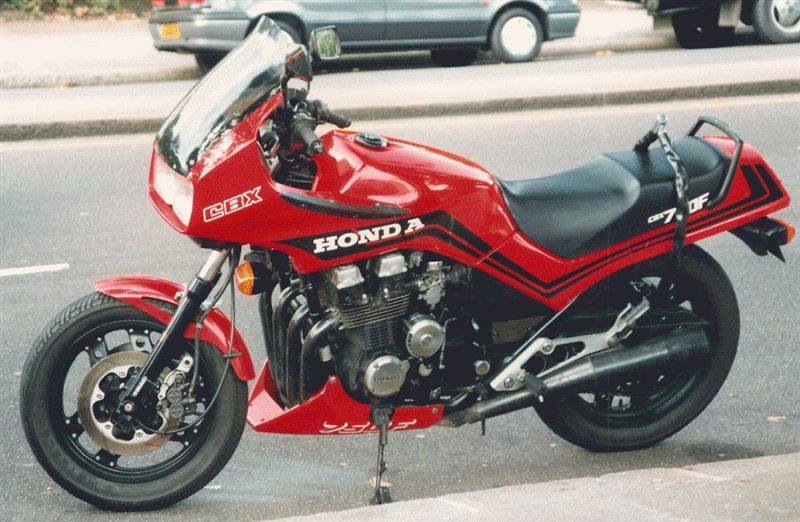

| MODEL | HONDA CBX 750F 1983 - 1984 |
| Year | 1983 - 1984 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, hydraulic valve adjustment |
| Displacement / Capacity | 747 cc / 45.0 cu in |
| Bore X Stroke | 67 x 53 mm / 2.6 x 2.1 in |
| Compression Ratio | 9.3:1 |
| Cooling System | Air cooled |
| Max Power | 67.8 kW / 93 hp @ 9500 rpm |
| Max Torque | 70.6 Nm / 52 lb-ft @ 8500 rpm |
| Ignition | Full transistor |
| Induction | 4 x 34 mm Keihin CV carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Wet multiplate, hydraulic |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Tubular steel duplex cradle |
| Front Suspension | 39 mm air-assisted fork, TRAC anti-dive, rebound adjustable, 150 mm / 5.9 in travel |
| Rear Suspension | Pro-Link single shock, air-assisted, 3-way rebound adjustable, 115 mm / 4.5 in travel |
| Front Brakes | 2 x 280 mm discs, 2-piston calipers |
| Rear Brakes | Single 280 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2200 mm / 86.6 in |
| Overall Width | 780 mm / 30.7 in |
| Overall Height | 1195 mm / 47.0 in |
| Seat Height | 810 mm / 31.9 in |
| Wheelbase | 1465 mm / 57.7 in |
| Ground Clearance | — |
| Dry Weight | 215 kg / 474 lbs |
| Wet Weight | 241 kg / 531.3 lbs |
| WHEEL SPECS | |
| Front Tyre | 110/90-V16 tubeless |
| Rear Tyre | 130/80-V18 tubeless |
| FUEL SYSTEM | |
| Fuel Capacity | 22 Litres / 5.8 US gal |
| Fuel Consumption | 34 mpg |
| Top Speed | 217 km/h / 135 mph |
The CBX750F replaced the long-running air-cooled CB750 fours as Honda's 750 sports bike, running alongside the V4 VF750. Its new 16-valve DOHC engine had hydraulic tappets, an alternator tucked behind the cylinders and a compact layout, and drove through a six-speed gearbox to a chain. A half fairing with twin headlights, Pro-Link rear suspension, anti-dive forks and a 16-inch front Comstar wheel gave it a sporty but practical character.
