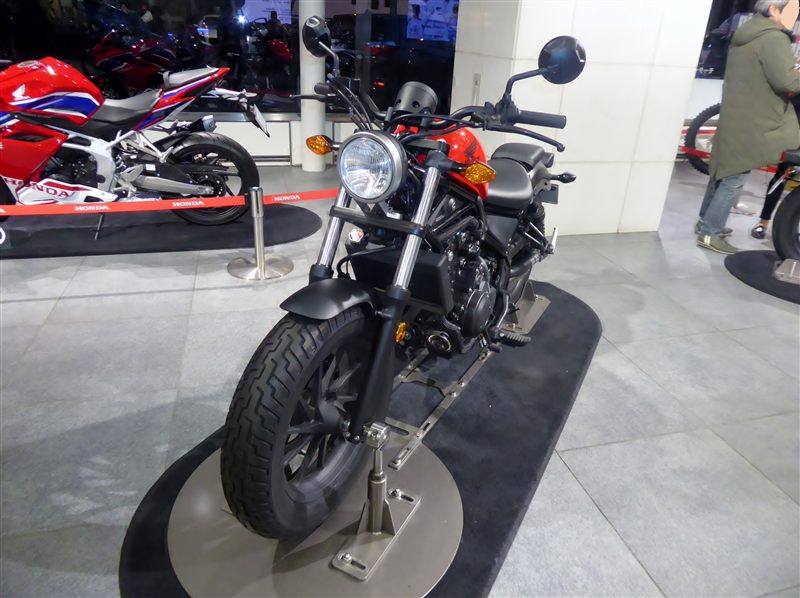

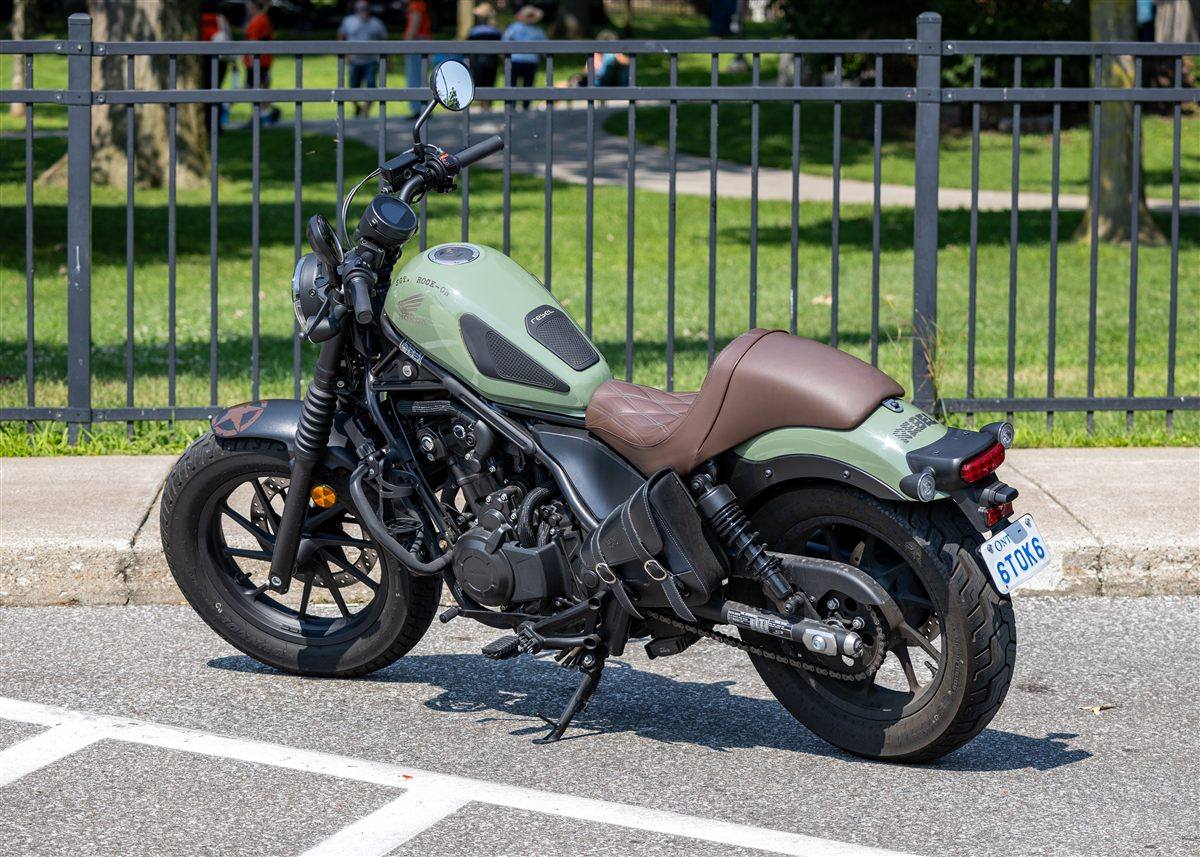

| MODEL | HONDA CMX 500 REBEL 2025 |
| Year | 2025 |
| Engine Type | Four stroke, parallel twin, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 471 cc / 28.7 cu in |
| Bore X Stroke | 67 x 66.8 mm |
| Compression Ratio | 10.7:1 |
| Cooling System | Liquid cooled |
| Max Power | 34.3 kW / 46.9 hp @ 8500 rpm |
| Max Torque | 43.3 Nm / 31.8 lb-ft @ 6000 rpm |
| Ignition | Computer-controlled digital transistorized with electronic advance |
| Induction | PGM-FI fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump, 3.2 Litres oil |
| Gear Box | 6 Speed |
| Clutch | Wet multiplate, assist and slipper clutch |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Diamond steel |
| Front Suspension | 41 mm telescopic fork, 121 mm / 4.8 in travel |
| Rear Suspension | Dual Showa shocks, five-position spring preload adjustment, 95 mm / 3.8 in travel |
| Front Brakes | Single 296 mm disc, Nissin axial-mount 2-piston caliper, 2-channel ABS |
| Rear Brakes | Single 240 mm hydraulic disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2205 mm / 86.8 in |
| Overall Width | 810 mm / 31.9 in |
| Overall Height | 1090 mm / 42.9 in |
| Seat Height | 690 mm / 27.2 in |
| Wheelbase | 1490 mm / 58.7 in |
| Ground Clearance | 137 mm / 5.4 in |
| Dry Weight | — |
| Wet Weight | 191 kg / 421 lbs |
| WHEEL SPECS | |
| Front Tyre | 130/90-16M/C (67H) |
| Rear Tyre | 150/80-16M/C (71H) |
| FUEL SYSTEM | |
| Fuel Capacity | 11.2 Litres / 2.95 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The 2025 (25YM) Rebel 500 brought a mid-life refresh: new ECU settings and exhaust sensor for the A2-friendly 471 cc twin, a new seat material, revised handlebar position and reshaped rear shock bump stops for comfort. The LCD became easier to read in sunlight and colours were updated. An S Edition added a headlight cowl, retro fork covers and bronze wheels.
