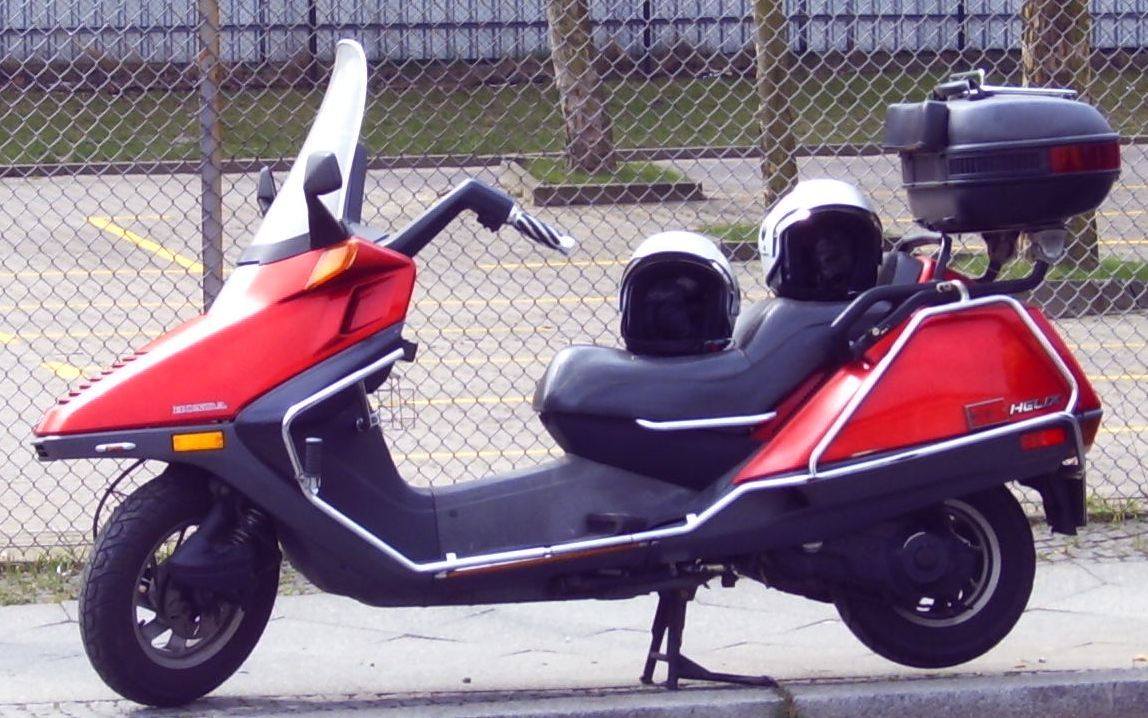

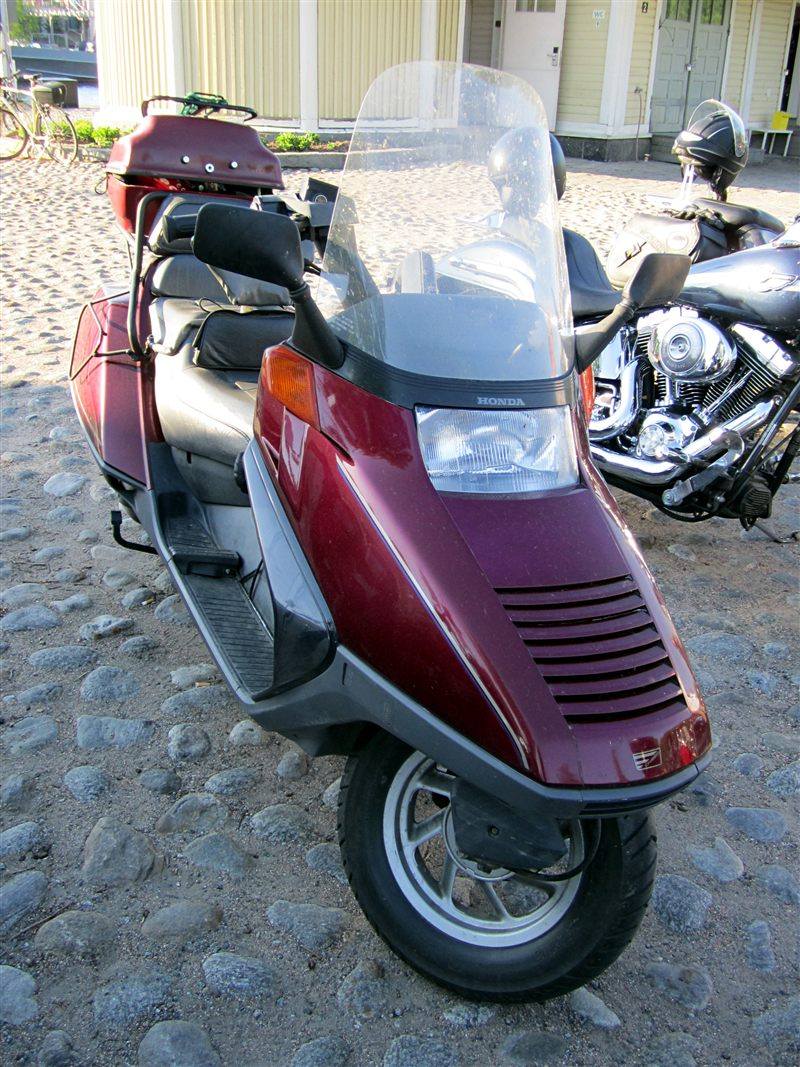

| MODEL | HONDA CN 250 HELIX / FUSION 1986 - 2009 |
| Year | 1986 - 2009 |
| Engine Type | Four stroke, single cylinder, SOHC |
| Displacement / Capacity | 244 cc / 14.9 cu in |
| Bore X Stroke | — |
| Compression Ratio | — |
| Cooling System | Liquid cooled |
| Max Power | 12.4 kW / 17 hp |
| Max Torque | 20.5 Nm / 15.1 lb-ft |
| Ignition | — |
| Induction | — |
| Start System | — |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | V-Matic continuously variable transmission |
| Clutch | — |
| Final Drive | — |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Trailing link fork |
| Rear Suspension | Swingarm |
| Front Brakes | Single disc |
| Rear Brakes | Drum |
| DIMENSION SPECS | |
| Overall Length | 2265 mm / 89.2 in |
| Overall Width | 745 mm / 29.3 in |
| Overall Height | 1355 mm / 53.3 in |
| Seat Height | 665 mm / 26.2 in |
| Wheelbase | 1625 mm / 64.0 in |
| Ground Clearance | — |
| Dry Weight | 157 kg / 346 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 110/100-12 |
| Rear Tyre | 120/90-10 |
| FUEL SYSTEM | |
| Fuel Capacity | 12 Litres / 3.2 US gal |
| Fuel Consumption | — |
| Top Speed | 113 - 121 km/h / 70 - 75 mph (limited) |
The CN250, sold as the Helix in the US and Fusion or Spazio elsewhere, was a long, low touring scooter with a feet-forward seat and built-in rear trunk, replacing the CH250 Elite. Its liquid-cooled 244 cc single and CVT made it relaxed rather than fast. It changed little over two decades and became a cult custom base in Japan, which helped bring it back after Honda tried to drop it.
