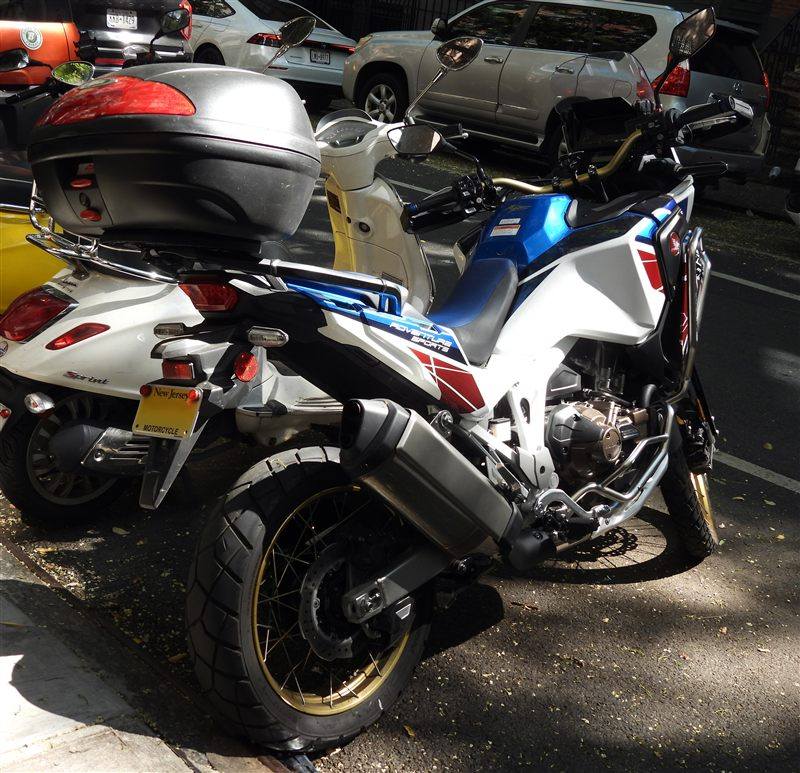

| MODEL | HONDA CRF 1100L AFRICA TWIN ADVENTURE SPORTS ES / DCT 2020 |
| Year | 2020 |
| Engine Type | Four-stroke, parallel twin, 270° crank, SOHC Unicam, 4 valves per cylinder |
| Displacement / Capacity | 1084 cc / 66.1 cu in |
| Bore X Stroke | 92.0 x 81.5 mm |
| Compression Ratio | 10.1:1 |
| Cooling System | Liquid cooled |
| Max Power | 75 kW / 100.5 hp @ 7500 rpm |
| Max Torque | 105 Nm / 77.4 lb-ft @ 6250 rpm |
| Ignition | Full transistorized |
| Induction | PGM-FI fuel injection, 46 mm throttle bodies, throttle-by-wire |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Semi-dry sump |
| Gear Box | 6-speed manual / 6-speed DCT with on- and off-road riding modes |
| Clutch | Manual: wet multiplate with coil springs, aluminium cam assist and slipper; DCT: 2 wet multiplate clutches with coil springs |
| Final Drive | 525 chain |
| CHASSIS SPECS | |
| Frame | Steel semi-double cradle with high-tensile steel rear sub-frame |
| Front Suspension | 45 mm Showa EERA electronically adjustable inverted cartridge fork, 230 mm / 9.0 in travel |
| Rear Suspension | Monoblock aluminium swingarm, Pro-Link, Showa EERA gas-charged damper with hydraulic preload adjuster, 220 mm / 8.6 in travel |
| Front Brakes | 2 x 310 mm wave floating discs, radial-mount 4-piston calipers, sintered pads, 2-channel IMU ABS |
| Rear Brakes | Single 256 mm wave disc, single-piston caliper, sintered pads, rear ABS off mode |
| DIMENSION SPECS | |
| Overall Length | 2330 mm / 91.7 in |
| Overall Width | 960 mm / 37.8 in |
| Overall Height | 1560 mm / 61.4 in (1620 mm / 63.8 in with screen raised) |
| Seat Height | 850 - 870 mm / 33.5 - 34.2 in (low seat 825 mm / 32.5 in, high seat 895 mm / 35.2 in) |
| Wheelbase | 1575 mm / 62.0 in |
| Ground Clearance | 250 mm / 9.8 in |
| Dry Weight | — |
| Wet Weight | 240 kg / 529.1 lbs (DCT 250 kg / 551.1 lbs) |
| WHEEL SPECS | |
| Front Tyre | 90/90-21 M/C 54H tubeless |
| Rear Tyre | 150/70R18 M/C 70H tubeless |
| FUEL SYSTEM | |
| Fuel Capacity | 24.8 Litres / 6.5 US gal |
| Fuel Consumption | 20.4 km/l (WMTC) |
| Top Speed | — |
The 2020 Adventure Sports ES moved to the new 1084 cc CRF1100L platform and was repositioned as the long-range touring Africa Twin, with a 24.8-litre tank, tall adjustable screen, cruise control, cornering lights, tubeless tyres and Showa EERA semi-active suspension (the ES part of the name). Compared with the standard bike it is heavier and more road-oriented, with lower seat heights than the previous Adventure Sports. Manual and DCT versions were offered.
