| MODEL | HONDA CRF 250L 2012 - 2013 |
| Year | 2012 - 2013 |
| Engine Type | Four stroke, single cylinder, DOHC, 4 valves |
| Displacement / Capacity | 249 cc / 15.28 cu in |
| Bore X Stroke | 76 x 55 mm |
| Compression Ratio | 10.7:1 |
| Cooling System | Liquid cooled |
| Max Power | 17 kW / 23 hp @ 8500 rpm |
| Max Torque | 22 Nm / 16.2 lb-ft @ 7000 rpm |
| Ignition | Full-transistor battery ignition |
| Induction | PGM-FI electronic fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 Speed |
| Clutch | Wet multiplate with coil springs |
| Final Drive | #520 chain, 14T/40T |
| CHASSIS SPECS | |
| Frame | Steel semi-double cradle |
| Front Suspension | 43 mm Showa inverted fork, 221 mm / 8.7 in travel |
| Rear Suspension | Pro-Link single shock, adjustable preload, 239 mm / 9.4 in travel |
| Front Brakes | Single 256 mm wave disc, 2 piston caliper |
| Rear Brakes | Single 220 mm wave disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2195 mm / 86.4 in |
| Overall Width | 815 mm / 32.1 in |
| Overall Height | 1195 mm / 47.0 in |
| Seat Height | 875 mm / 34.4 in |
| Wheelbase | 1445 mm / 56.9 in |
| Ground Clearance | 255 mm / 10.0 in |
| Dry Weight | — |
| Wet Weight | 147 kg / 320 lbs |
| WHEEL SPECS | |
| Front Tyre | 3.00-21 |
| Rear Tyre | 120/80-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 7.7 Litres / 2.0 US gal |
| Fuel Consumption | — |
| Top Speed | 130 km/h / 80 mph |

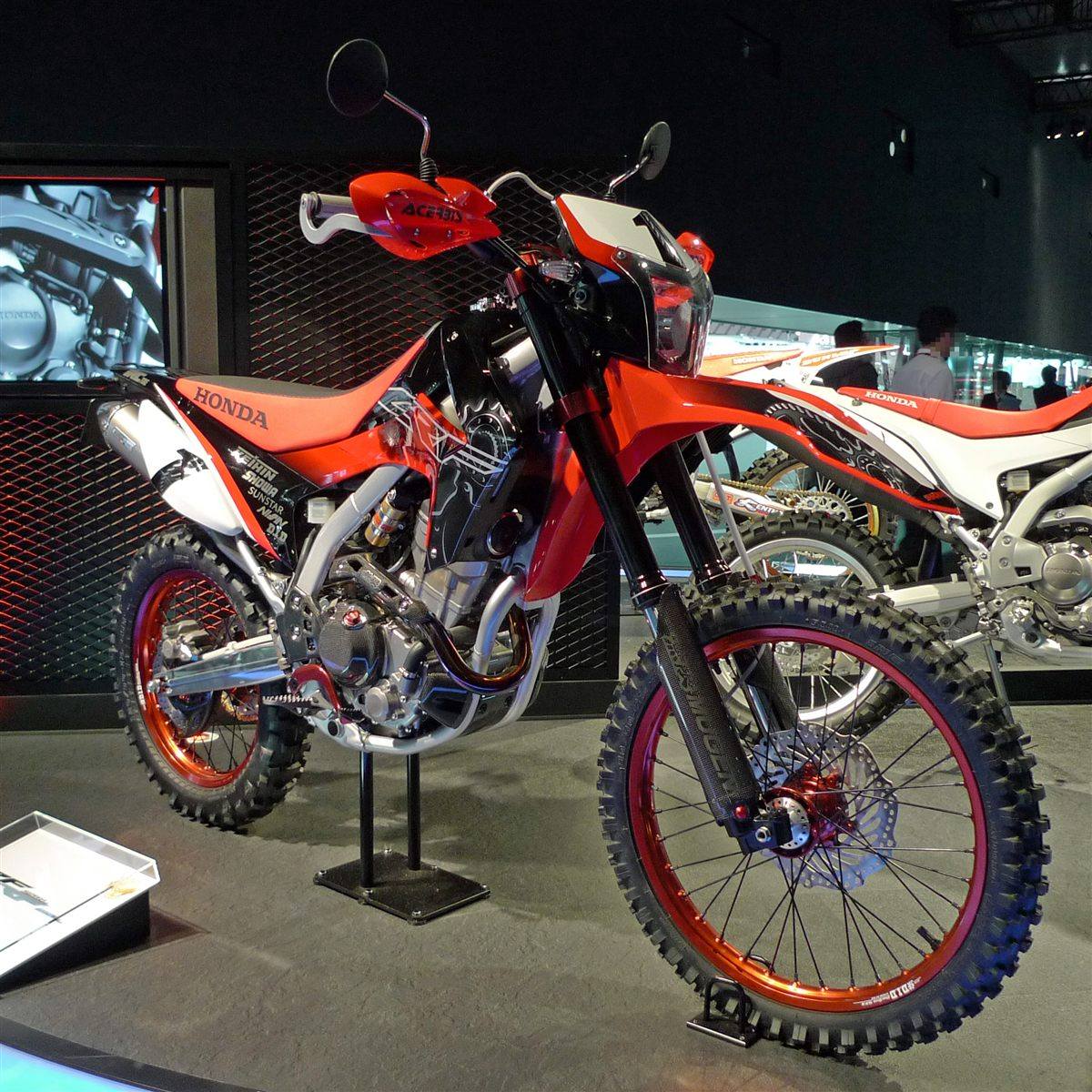

Photo: Takeaway, CC BY-SA 3.0, via Wikimedia Commons

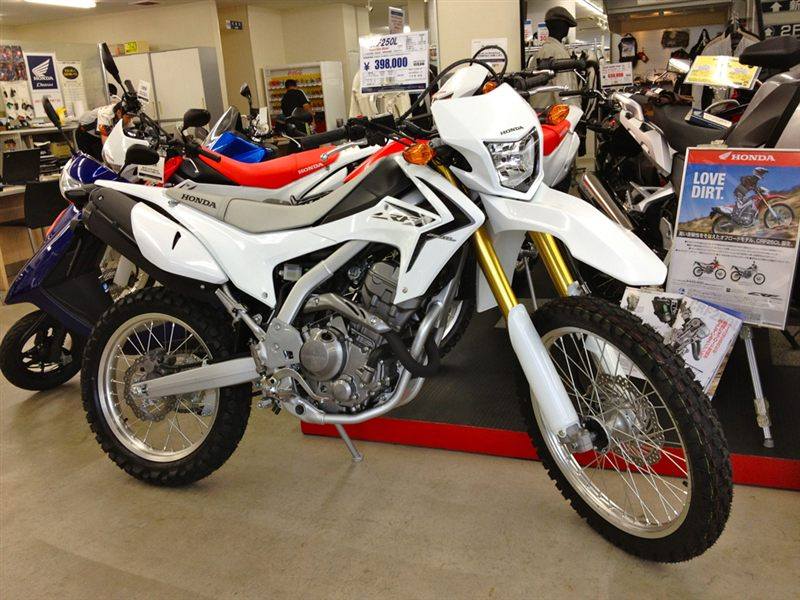

Photo: Takoyashi, CC BY-SA 3.0, via Wikimedia Commons
The CRF250L replaced the air-cooled CRF230L in 2012 with a much more modern package: a liquid-cooled, fuel-injected 249 cc DOHC single derived from the CBR250R, built in Thailand. It added a 43 mm upside-down fork, Pro-Link rear suspension with an aluminium swingarm, wave-pattern discs and a digital dash. Reviewers praised its low price, frugal engine and easy manners on both tar and dirt.
