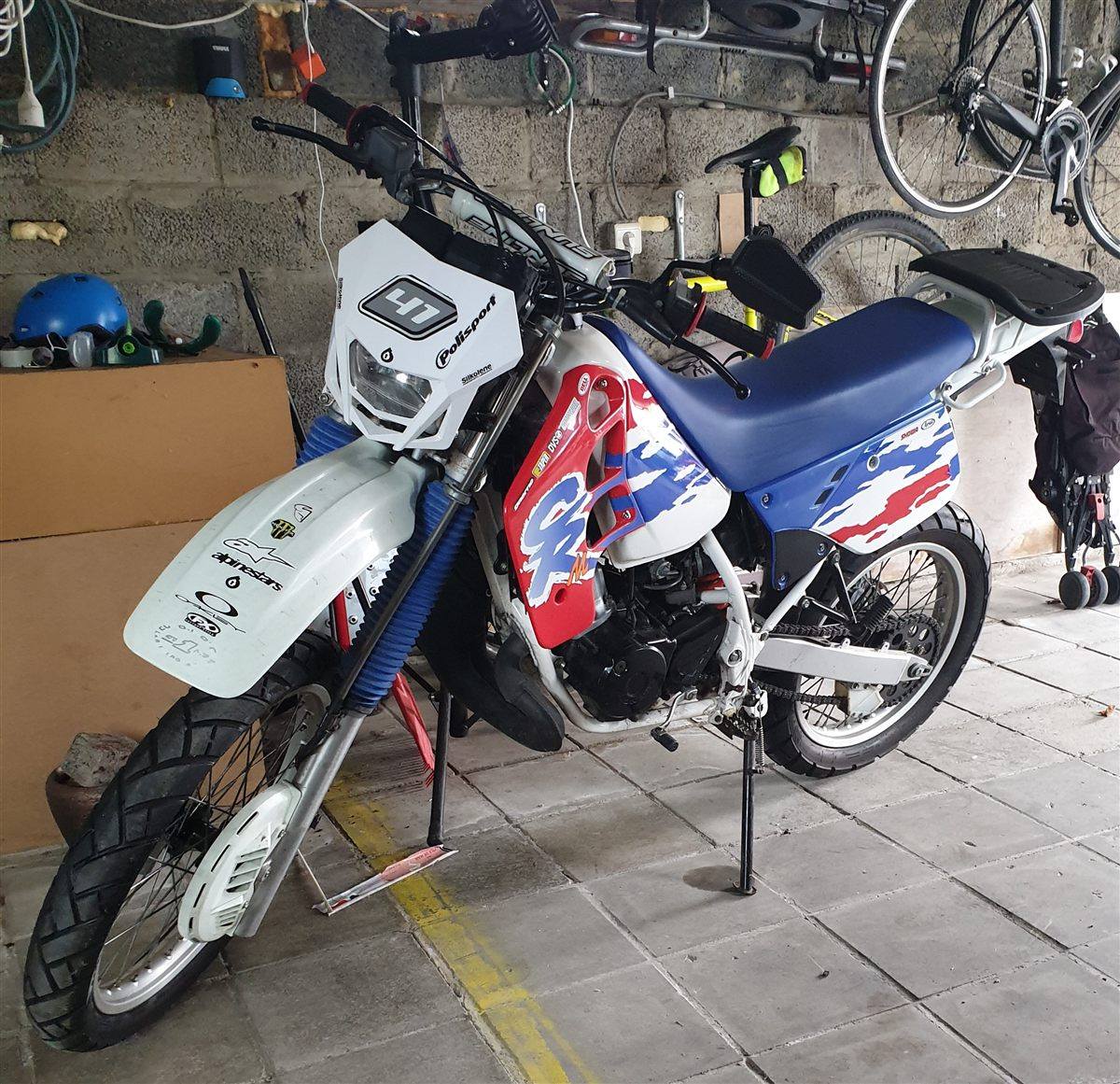

| MODEL | HONDA CRM 125R 1989 - 1993 |
| Year | 1989 - 1993 |
| Engine Type | Two-stroke, single cylinder |
| Displacement / Capacity | 124 cc / 7.6 cu in |
| Bore X Stroke | 54.0 x 54.5 mm |
| Compression Ratio | 6.8:1 |
| Cooling System | Liquid cooled |
| Max Power | 21.2 kW / 29 hp @ 10200 rpm |
| Max Torque | 20 Nm / 14.8 lb-ft @ 9000 rpm |
| Ignition | CDI |
| Induction | Dell'Orto 28 mm carburettor |
| Start System | Kick |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed |
| Clutch | Wet multiplate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic fork, 270 mm / 10.6 in travel |
| Rear Suspension | Monoshock, gas charged |
| Front Brakes | Single 240 mm disc |
| Rear Brakes | Single 220 mm disc |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | 118 kg / 260.1 lbs |
| Wet Weight | 130 kg / 286.6 lbs |
| WHEEL SPECS | |
| Front Tyre | 90/90-21 |
| Rear Tyre | 4.60-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 10 Litres / 2.6 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The CRM 125R was Honda's liquid-cooled two-stroke 125 enduro for European markets, a road-legal trail bike with a 21-inch front wheel, long-travel suspension and disc brakes at both ends. With close to 30 hp it was one of the livelier learner-class dual-sports of its day and was a common sight in Italy, where it competed with the local 125 enduros.
