| MODEL | HONDA CX 500E EURO 1982 |
| Year | 1982 |
| Engine Type | Four stroke, longitudinal 80 deg V-twin, OHV pushrod, 4 valves per cylinder |
| Displacement / Capacity | 497 cc / 30.3 cu in |
| Bore X Stroke | 78 x 52 mm |
| Compression Ratio | 10.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 37.2 kW / 50 hp @ 9000 rpm |
| Max Torque | 46 Nm / 33.9 lb-ft @ 7000 rpm |
| Ignition | CDI |
| Induction | 2 x 35 mm Keihin VB1AA-A carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 speed |
| Clutch | Wet multi-plate |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | Pressed steel and tubular diamond |
| Front Suspension | 37 mm air-assisted Showa telescopic fork with TRAC anti-dive |
| Rear Suspension | Pro-Link rising-rate single shock, air/oil damped |
| Front Brakes | 2 x 275 mm discs, 2 piston floating calipers |
| Rear Brakes | Single 275 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | 1495 mm / 58.9 in |
| Ground Clearance | — |
| Dry Weight | 208 kg / 458.5 lbs |
| Wet Weight | 225 kg / 496 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90-18 |
| Rear Tyre | 120/80-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 19 Litres / 5.0 US gal |
| Fuel Consumption | — |
| Top Speed | 172 km/h / 107 mph |

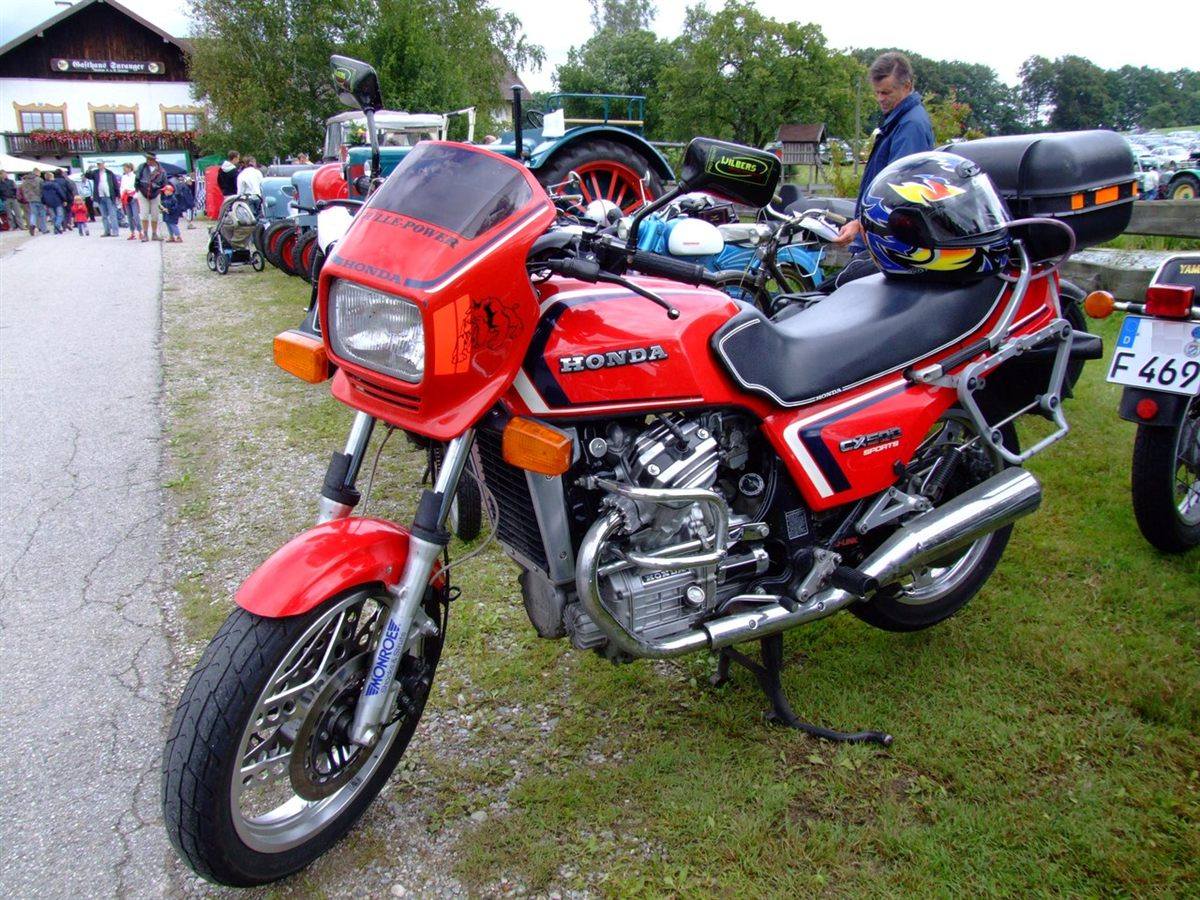

The CX500E, known as the Eurosport, was the sportiest 500 cc CX, built for European tastes in 1982. It gained an air-assisted fork with TRAC anti-dive, a Pro-Link single-shock rear end, 18-inch wheels with a rear disc, an automatic cam-chain tensioner and a small handlebar fairing with restyled bodywork. It was a short-lived model, succeeded by the CX650E the following year.
