| MODEL | HONDA CX 650TC TURBO 1983 |
| Year | 1983 |
| Engine Type | Four stroke, turbocharged, 80° V-twin, longitudinal crankshaft, OHV pushrod, 4 valves per cylinder |
| Displacement / Capacity | 673 cc / 41.07 cu in |
| Bore X Stroke | 82.5 x 63 mm |
| Compression Ratio | 7.8:1 |
| Cooling System | Liquid cooled |
| Max Power | 73 kW / 100 hp @ 8000 rpm |
| Max Torque | 93 Nm / 68.5 lb-ft @ 6000 rpm |
| Ignition | Electronic |
| Induction | Computerised digital fuel injection, turbocharger |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | Wet, multi-plate |
| Final Drive | Shaft, 3.400:1 |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 37 mm Showa fork, TRAC anti-dive and air pressure adjustment, 130 mm / 5.1 in travel |
| Rear Suspension | Pro-Link, single Showa damper, air pressure and rebound damping adjustment, 104 mm / 4.1 in travel |
| Front Brakes | 2x 280 mm discs |
| Rear Brakes | Single 300 mm disc |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | 1496 mm / 58.9 in |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 260 kg / 572 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90 V18 |
| Rear Tyre | 120/90 V17 |
| FUEL SYSTEM | |
| Fuel Capacity | 20 Litres / 5.3 US gal |
| Fuel Consumption | 47 mpg |
| Top Speed | 200 km/h / 125 mph |

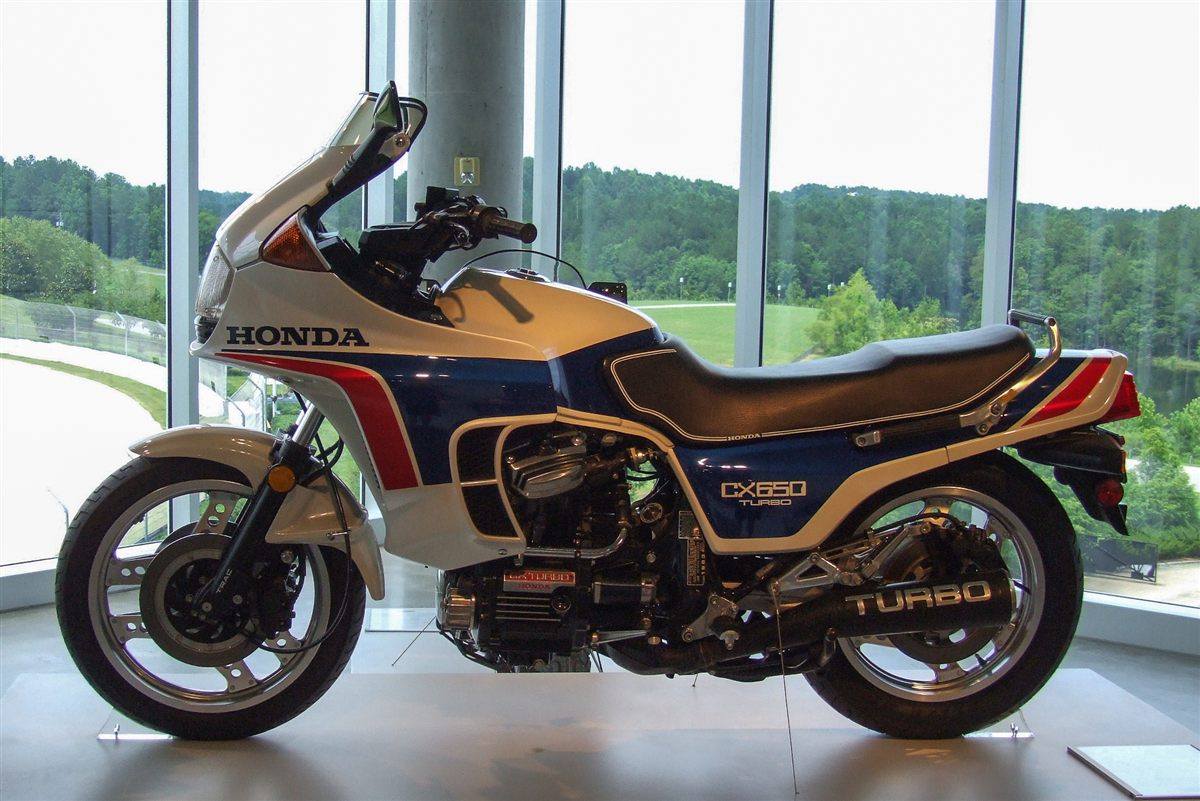

Photo: Mike Schinkel, CC BY 2.0, via Wikimedia Commons

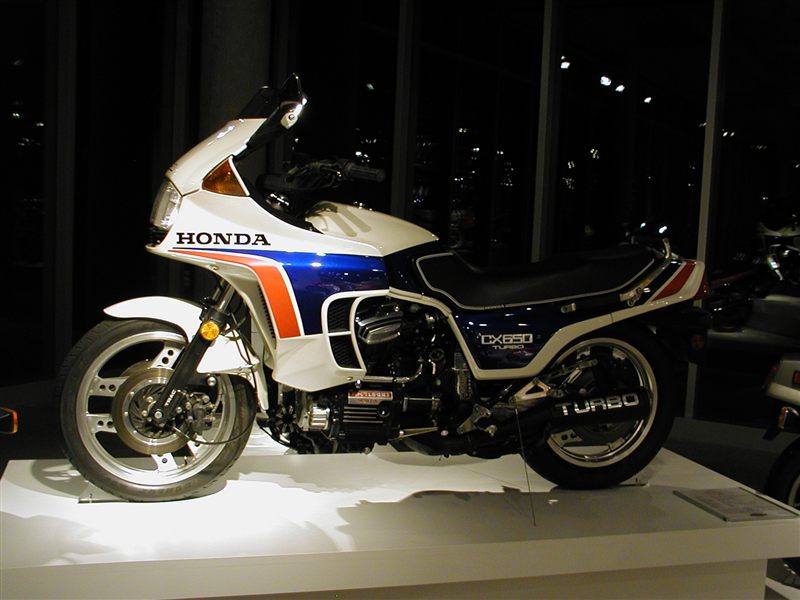

Photo: Rainmaker47, CC BY-SA 3.0, via Wikimedia Commons
The CX650 Turbo was Honda's second-generation turbo bike, using a larger 673 cc engine with higher compression, bigger valves and a larger turbocharger to reach 100 hp. Off-boost response was much better than the 500 Turbo, though the boost still arrived abruptly. Revised suspension damping made it more stable, and it was a comfortable fast tourer, but it was heavy and sold in small numbers, with fewer than 1,200 going to the US and Canada.
