| MODEL | HONDA DN-01 2008 - 2010 |
| Year | 2008 - 2010 |
| Engine Type | Four stroke, 52° V-twin, SOHC, 4 valves per cylinder |
| Displacement / Capacity | 680 cc / 41.4 cu in |
| Bore X Stroke | 81 x 66 mm |
| Compression Ratio | 10.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 45 kW / 61 hp @ 7500 rpm |
| Max Torque | 64 Nm / 6.5 kgf-m @ 6000 rpm |
| Ignition | Digital transistorised with electronic advance |
| Induction | PGM-FI electronic fuel injection, 40 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | Continuously variable hydro-mechanical (HFT) two-mode automatic with six-speed manual mode |
| Clutch | HFT automatic, hydraulic control |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | Double cradle steel tube |
| Front Suspension | 41 mm telescopic forks, 106 mm / 4.0 in travel |
| Rear Suspension | Single-sided swingarm, single damper with 7-step spring preload adjustment, 120 mm / 4.7 in travel |
| Front Brakes | 2x 296 mm discs, 3-piston calipers, combined braking with ABS |
| Rear Brakes | Single 276 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 1830 mm / 72.0 in |
| Overall Width | — |
| Overall Height | 1020 mm / 40.0 in |
| Seat Height | 713 mm / 28.1 in |
| Wheelbase | 1609 mm / 63.3 in |
| Ground Clearance | — |
| Dry Weight | 268 kg / 591 lbs |
| Wet Weight | 270 kg / 595 lbs |
| WHEEL SPECS | |
| Front Tyre | 130/70 ZR17 |
| Rear Tyre | 190/50 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 15 Litres / 4.0 US gal |
| Fuel Consumption | 19.2 km/l |
| Top Speed | 182.9 km/h / 113.6 mph |

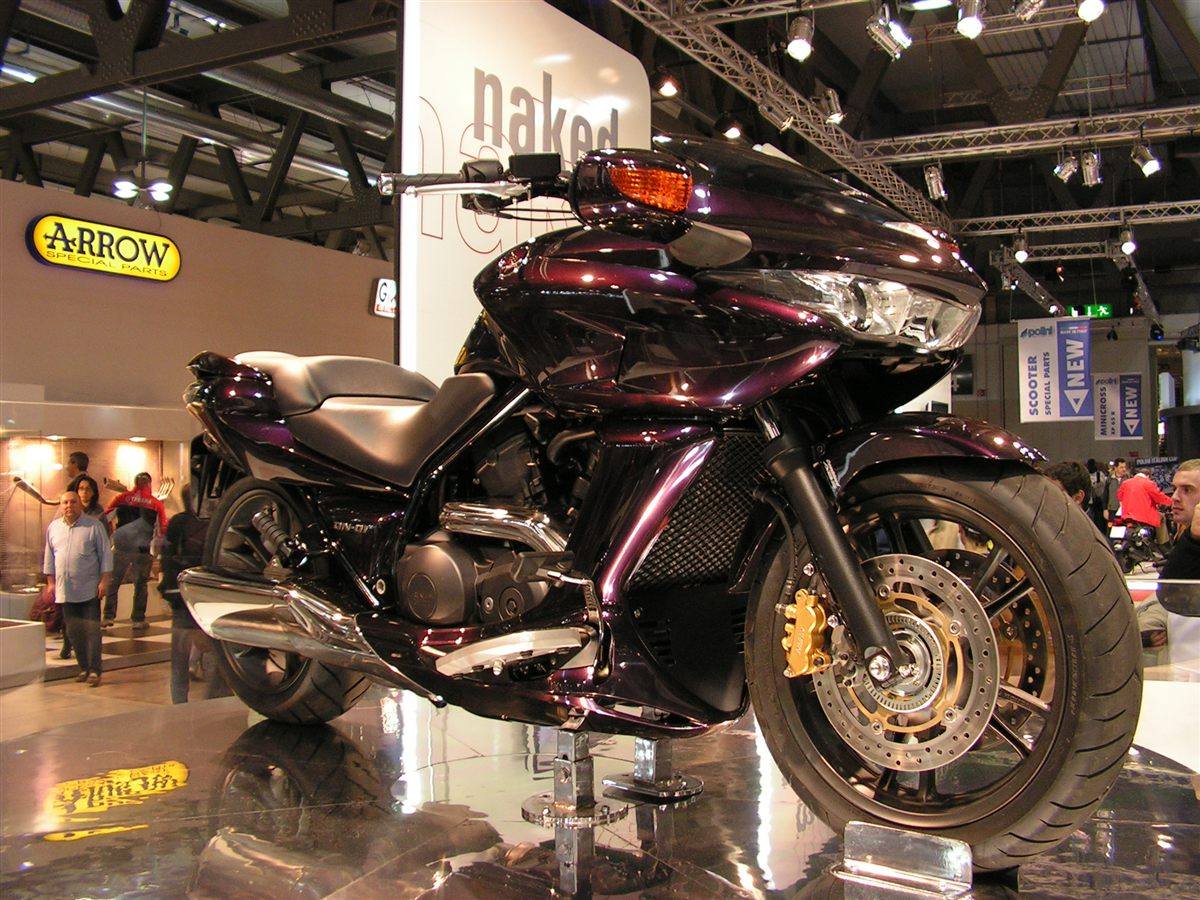

Photo: Rainmaker47, CC BY-SA 3.0, via Wikimedia Commons

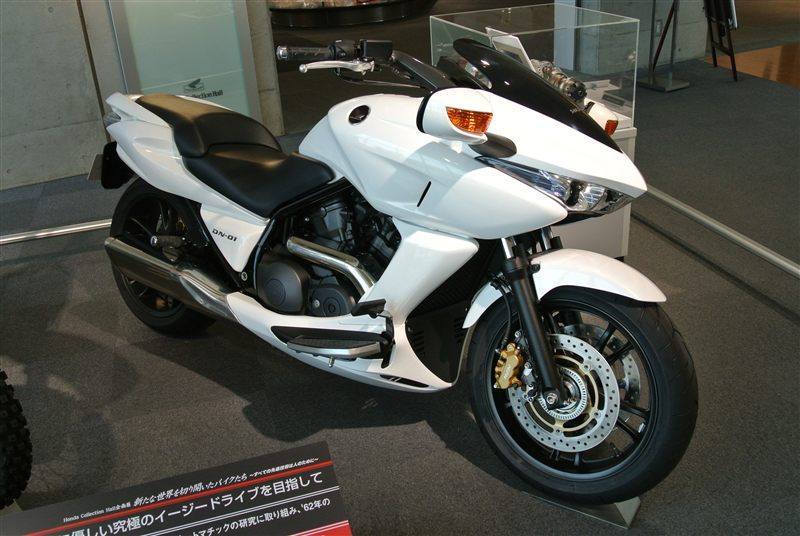

Photo: Rama, CC BY-SA 2.0 fr, via Wikimedia Commons
The production DN-01 arrived in Japan and Europe in 2008 and the US in 2009 as a 'performance cruiser' with no clutch lever or gear pedal, using Honda's Human-Friendly Transmission, a hydro-mechanical CVT with automatic modes and a six-step manual mode. The 680 cc V-twin sat in long, low bodywork with a very low seat, combined ABS brakes and shaft drive. Its price and unusual concept limited sales and it was dropped after 2010.
