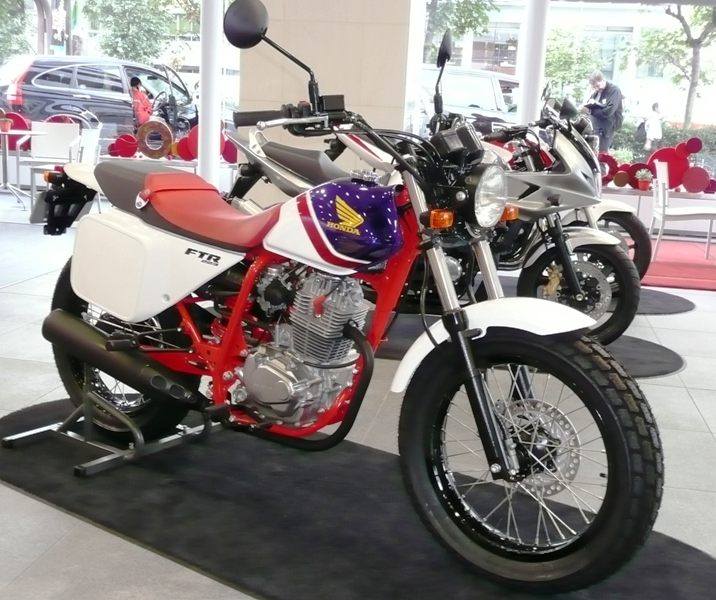

| MODEL | HONDA FTR 223 STREET FLAT TRACKER 2000 - 2016 |
| Year | 2000 - 2016 |
| Engine Type | Four-stroke, single cylinder, SOHC |
| Displacement / Capacity | 223 cc / 13.6 cu in |
| Bore X Stroke | 65.5 x 66.2 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Max Power | 14 kW / 19 PS @ 7000 rpm |
| Max Torque | 21 Nm / 15.5 lb-ft @ 6000 rpm |
| Ignition | CDI |
| Induction | Keihin VE3DA carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | Wet multi-plate, coil springs |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel semi-double cradle |
| Front Suspension | Telescopic forks |
| Rear Suspension | Swingarm |
| Front Brakes | Single disc |
| Rear Brakes | Drum |
| DIMENSION SPECS | |
| Overall Length | 2080 mm / 81.9 in |
| Overall Width | 910 mm / 35.8 in |
| Overall Height | 1115 mm / 43.9 in |
| Seat Height | 780 mm / 30.7 in |
| Wheelbase | 1395 mm / 54.9 in |
| Ground Clearance | 180 mm / 7.1 in |
| Dry Weight | 119 kg / 262.4 lbs |
| Wet Weight | 126 kg / 277.8 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/90-18 |
| Rear Tyre | 120/90-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 7.2 Litres / 1.9 US gal |
| Fuel Consumption | 42.0 km/l at 60 km/h steady speed |
| Top Speed | — |
The FTR223 was a light, low-seat street tracker for the Japanese market, drawing on Honda's 1980s FTR250 flat-track racer and aimed at the Yamaha TW200 crowd. It used a simple air-cooled 223 cc single with fat 18-inch tyres front and rear, a front disc and a rear drum. Over its 16 years it gained colour options, a limited FTR223D in 2002, minor styling changes and, from late 2007, a catalytic converter that cut its power slightly.
