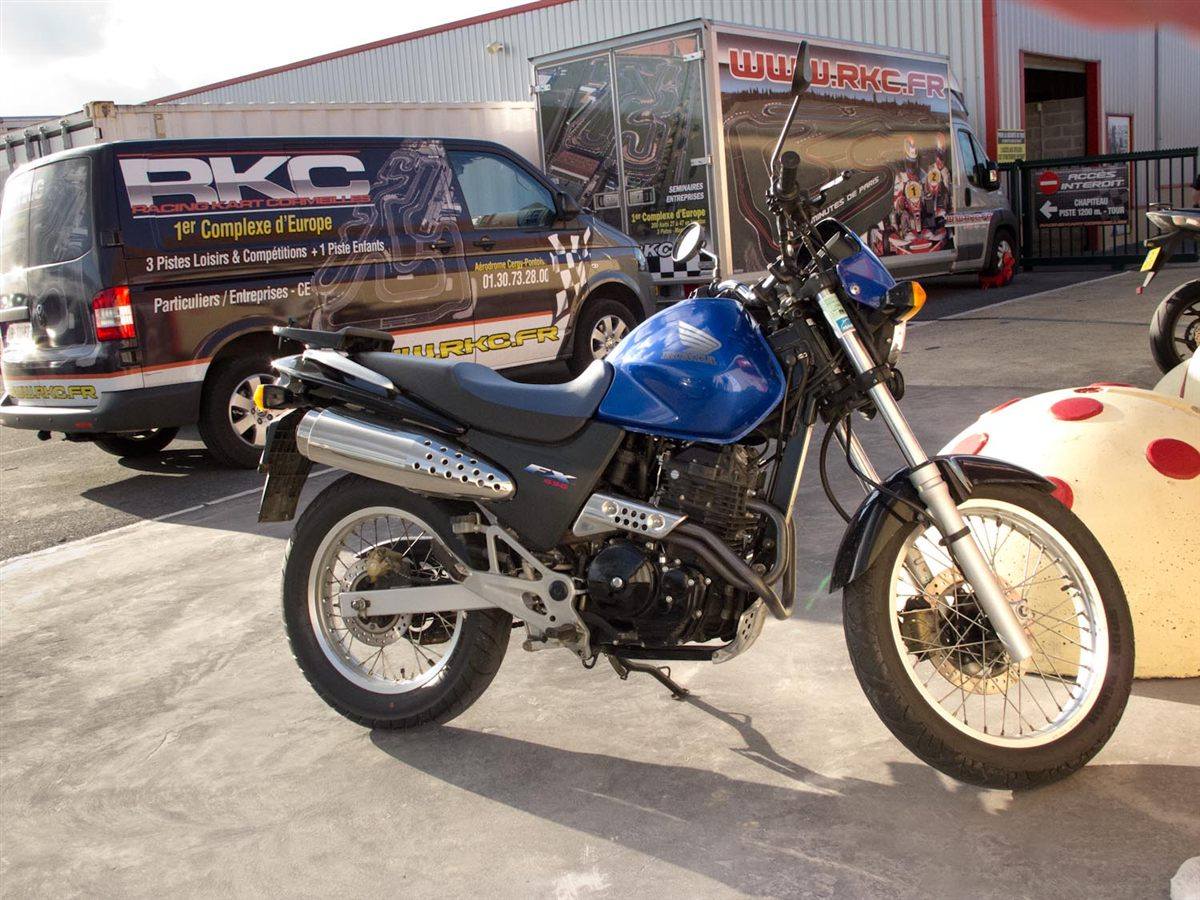

| MODEL | HONDA FX 650 VIGOR 1998 |
| Year | 1998 |
| Engine Type | Four-stroke, single cylinder, SOHC, 4 valves |
| Displacement / Capacity | 644 cc / 39.2 cu in |
| Bore X Stroke | 100 x 82 mm |
| Compression Ratio | 8.3:1 |
| Cooling System | Air cooled |
| Max Power | 28.7 kW / 39.4 hp @ 5750 rpm |
| Max Torque | 54 Nm / 39.8 lb-ft @ 4500 rpm |
| Ignition | Capacitor discharge (CDI) |
| Induction | Single 40 mm Keihin VE-type carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic forks |
| Rear Suspension | Swingarm |
| Front Brakes | Single 296 mm disc, 2 piston caliper |
| Rear Brakes | Single 220 mm disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 845 mm / 33.3 in |
| Wheelbase | 1440 mm / 56.7 in |
| Ground Clearance | — |
| Dry Weight | 161 kg / 354.9 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 100/90-19 |
| Rear Tyre | 120/90-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 13 Litres / 3.4 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The FX 650 Vigor was the reworked version of Honda's Spanish-built SLR 650 road-going single, launched at the end of 1998. It kept the air-cooled 644 cc four-valve engine and chassis but gained a rev counter, a small cockpit fairing, a new seat with side and tail panels, and an XR-style tank. It is a characterful, torquey big single for back roads and town rather than a fast bike.
