| MODEL | HONDA GB 400TT CLUBMAN TOURIST TROPHY 1985 - 1987 |
| Year | 1985 - 1987 |
| Engine Type | Four-stroke, single cylinder, SOHC, 4 valves |
| Displacement / Capacity | 399 cc / 24.3 cu in |
| Bore X Stroke | 84 x 72 mm |
| Compression Ratio | 9.2:1 |
| Cooling System | Air cooled |
| Max Power | 25 kW / 34 PS @ 7500 rpm |
| Max Torque | 33.3 Nm / 3.4 kgf-m / 24.6 lb-ft @ 6000 rpm |
| Ignition | CDI |
| Induction | Keihin VE10 carburettor |
| Start System | Electric and kick |
| TRANSMISSION SPECS | |
| Lubrication | Pressure feed, 2.3 L oil |
| Gear Box | 5 Speed |
| Clutch | Wet multi-plate, coil spring |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel semi-double cradle |
| Front Suspension | 35 mm telescopic forks |
| Rear Suspension | Dual shocks, adjustable preload |
| Front Brakes | Single 256 mm disc |
| Rear Brakes | 138 mm drum, leading-trailing |
| DIMENSION SPECS | |
| Overall Length | 2100 mm / 82.7 in |
| Overall Width | 690 mm / 27.2 in |
| Overall Height | 1060 mm / 41.7 in |
| Seat Height | 780 mm / 30.7 in |
| Wheelbase | 1400 mm / 55.1 in |
| Ground Clearance | 160 mm / 6.3 in |
| Dry Weight | 150 kg / 330.7 lbs |
| Wet Weight | 168 kg / 370.4 lbs |
| WHEEL SPECS | |
| Front Tyre | 90/90-18 |
| Rear Tyre | 110/90-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 17 Litres / 4.5 US gal |
| Fuel Consumption | 45.0 km/l at 60 km/h steady speed |
| Top Speed | — |

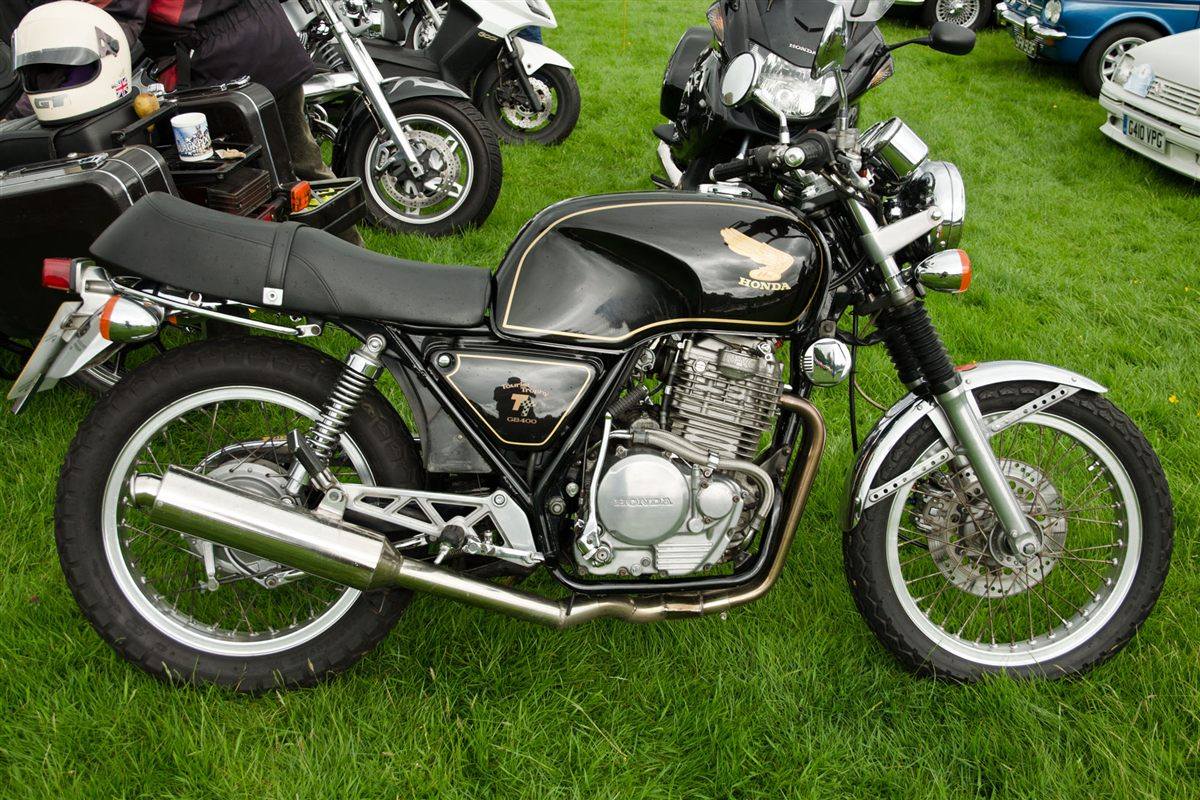

Photo: yoppy, CC BY 2.0, via Wikimedia Commons

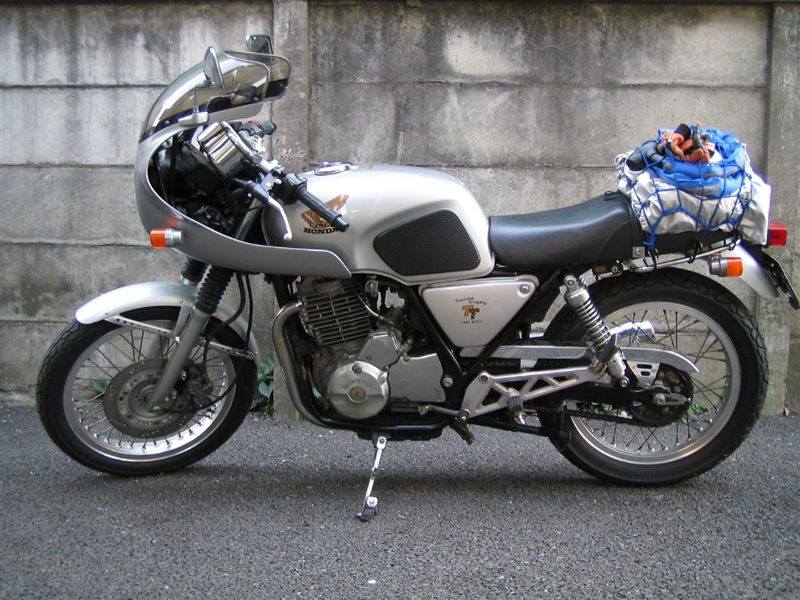

Photo: yoppy, CC BY 2.0, via Wikimedia Commons
The GB400TT was Honda's 1985 Japanese-market cafe racer, named after the Isle of Man Tourist Trophy and styled like the British racing singles of the 1950s and 60s. Its air-cooled, four-valve 399 cc single drew on Honda's XR/XL dirt-bike engines and sat in a semi-double-cradle frame with spoked 18-inch wheels. The standard model had a dual seat, while the limited MkII added a half fairing and solo seat.
