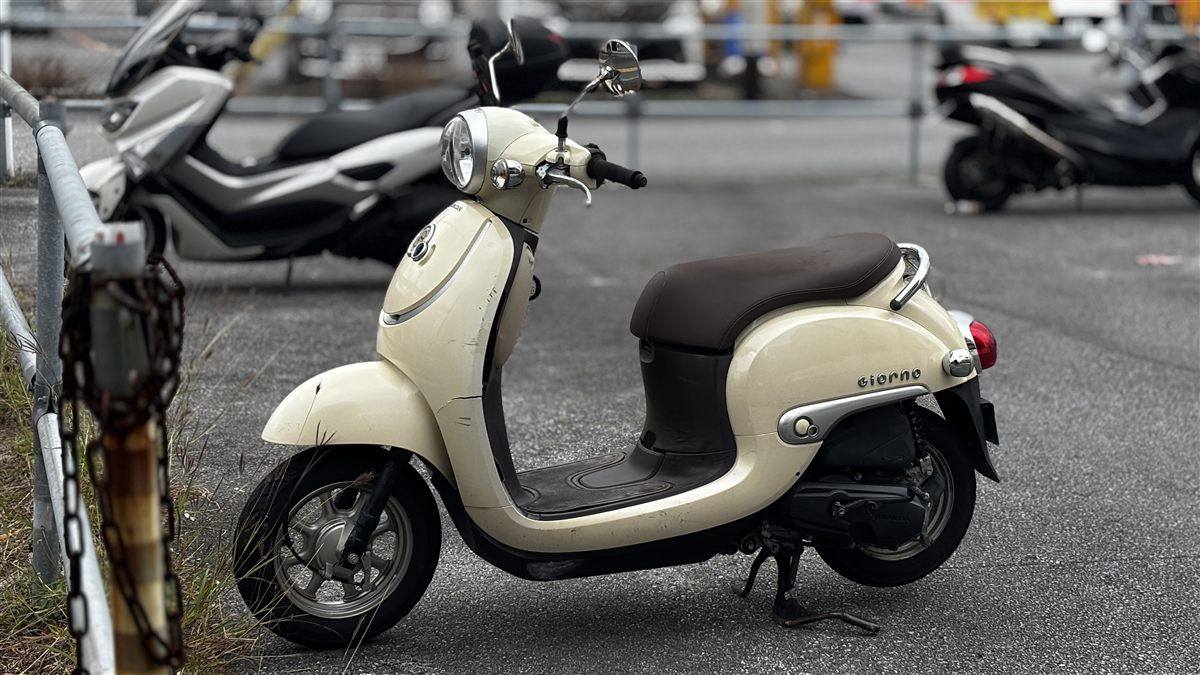

| MODEL | HONDA GIORNO AF77 2015 |
| Year | 2015 |
| Engine Type | Four stroke, single cylinder, SOHC, 2 valves |
| Displacement / Capacity | 49 cc / 3.0 cu in |
| Bore X Stroke | 39.5 x 40.2 mm |
| Compression Ratio | 12.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 3.3 kW / 4.5 PS @ 8000 rpm |
| Max Torque | 4.1 Nm / 0.42 kgf-m |
| Ignition | CDI |
| Induction | PGM-FI electronic fuel injection |
| Start System | Electric and kick |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | Automatic, V-Matic |
| Clutch | — |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Twin downtube fork, 53 mm / 2.1 in travel |
| Rear Suspension | Single shock, 58 mm / 2.3 in travel |
| Front Brakes | Drum |
| Rear Brakes | Drum, combined braking (CBS) |
| DIMENSION SPECS | |
| Overall Length | 1650 mm / 65.0 in |
| Overall Width | 670 mm / 26.4 in |
| Overall Height | 1015 mm / 40.0 in |
| Seat Height | 720 mm / 28.3 in |
| Wheelbase | 1180 mm / 46.5 in |
| Ground Clearance | 105 mm / 4.1 in |
| Dry Weight | — |
| Wet Weight | 81 kg / 179 lbs |
| WHEEL SPECS | |
| Front Tyre | 80/100-10 |
| Rear Tyre | 80/100-10 |
| FUEL SYSTEM | |
| Fuel Capacity | 4.5 Litres / 1.2 US gal |
| Fuel Consumption | 56.4 km/l (WMTC) |
| Top Speed | — |
The Giorno is a retro-styled 50 cc scooter sold mainly in Japan, with rounded bodywork aimed at style-conscious city riders. The 2015 generation switched to a new liquid-cooled, fuel-injected four-stroke engine. It keeps a lockable underseat bin, front pocket, bag hook and combined braking.
