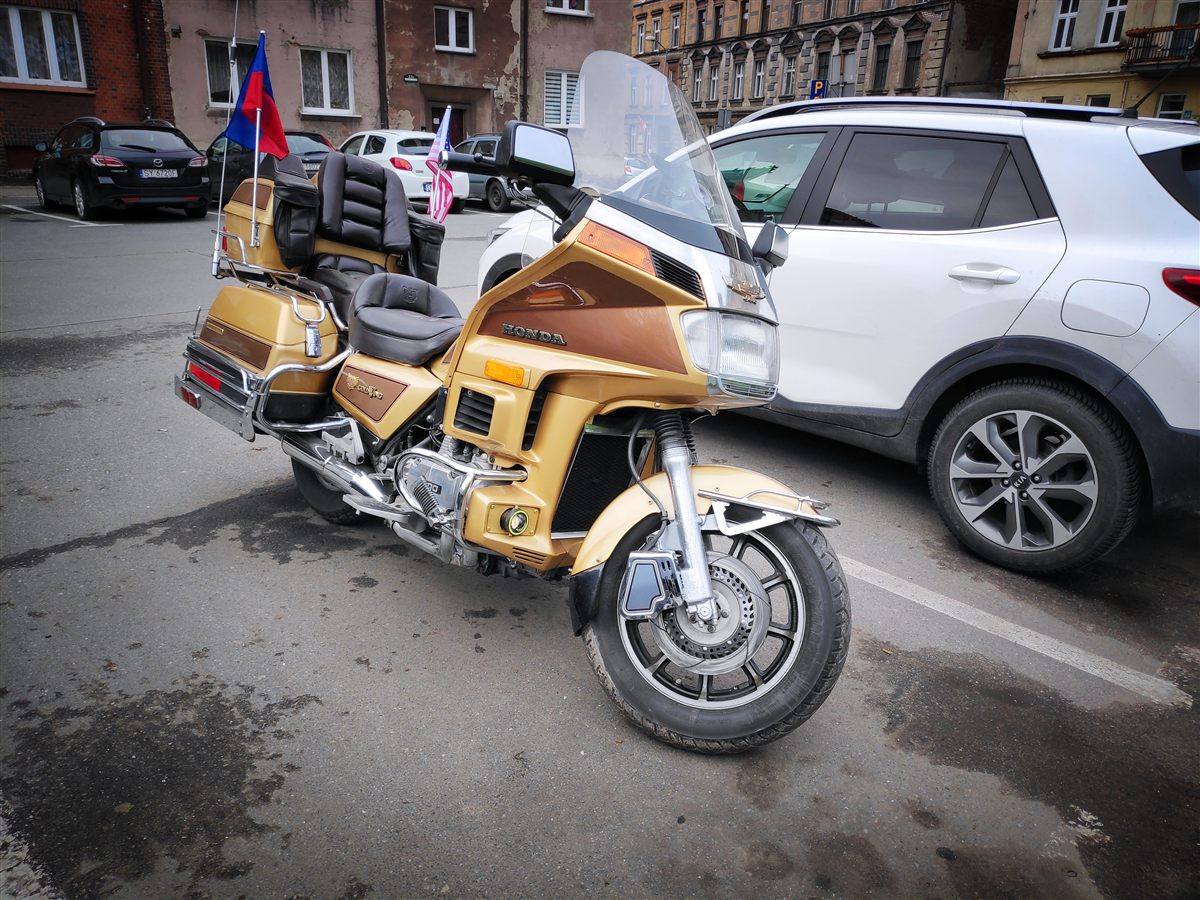

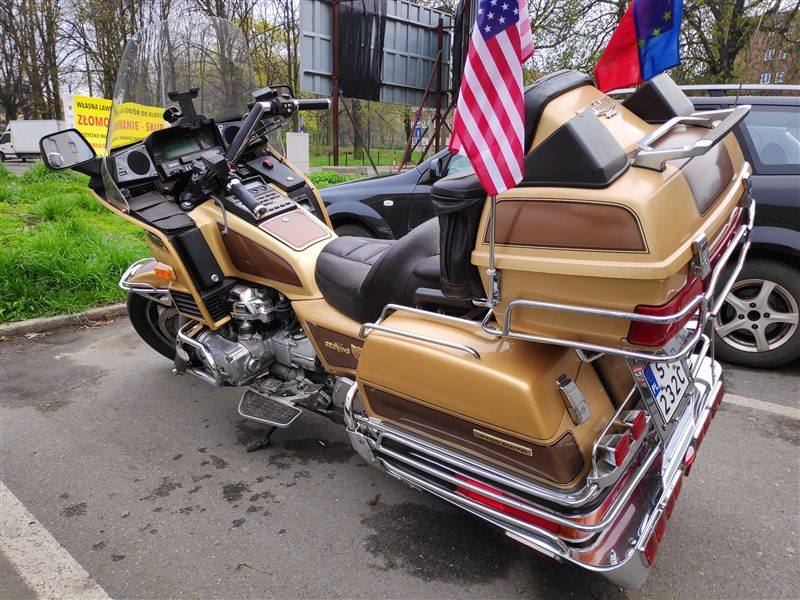

| MODEL | HONDA GL 1200 GOLD WING LIMITED EDITION (10TH ANNIVERSARY) 1985 |
| Year | 1985 |
| Engine Type | Four stroke, opposed boxer four cylinder, SOHC, 2 valves per cylinder |
| Displacement / Capacity | 1182 cc / 72.1 cu in |
| Bore X Stroke | 75.5 x 66 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 70.1 kW / 94 hp @ 7000 rpm |
| Max Torque | 104.9 Nm / 10.7 kgf-m / 77.4 lb-ft @ 5500 rpm |
| Ignition | Electronic |
| Induction | Fuel injection (PGM-FI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | Hydraulic |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic fork with air-assisted springs and 4-position anti-dive, 140 mm / 5.5 in travel |
| Rear Suspension | Twin adjustable shocks, 100 mm / 3.9 in travel |
| Front Brakes | 2 x 276 mm discs, 2 piston calipers |
| Rear Brakes | Single 296 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2355 mm / 92.7 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 780 mm / 30.7 in |
| Wheelbase | 1610 mm / 63.4 in |
| Ground Clearance | — |
| Dry Weight | 355 kg / 782 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 130/90 H16 |
| Rear Tyre | 150/90 H15 |
| FUEL SYSTEM | |
| Fuel Capacity | 22 Litres / 5.8 US gal |
| Fuel Consumption | 5.7 L/100 km / 17.4 km/l / 41 US mpg |
| Top Speed | 243 km/h / 151 mph |
The Limited Edition marked ten years of the Gold Wing and was the first Gold Wing with fuel injection. It was based on the GL1200 tourer but carried extra luxury equipment, which made it noticeably heavier than the Aspencade. Production was limited to 5,372 bikes, all for the North American market.
