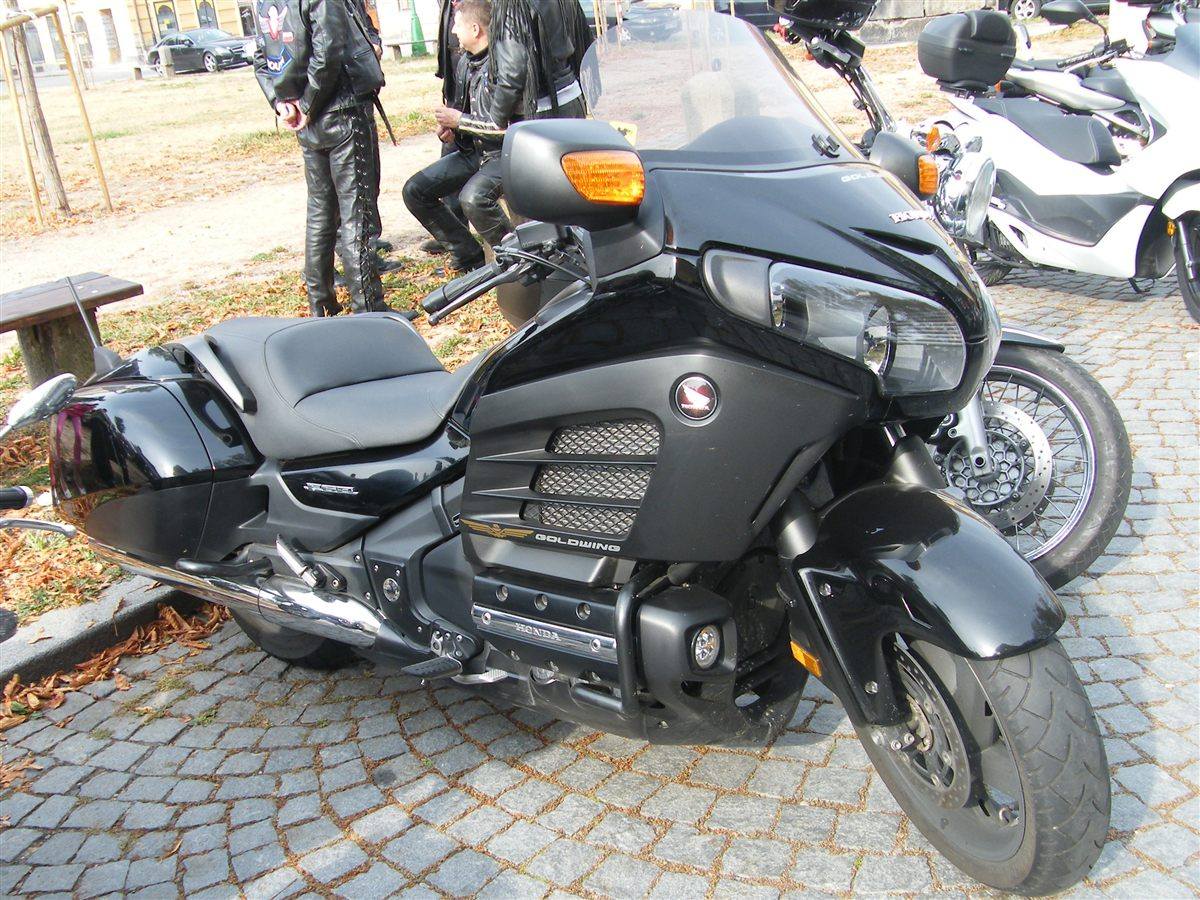

| MODEL | HONDA GL 1800 F6B GOLD WING 2017 |
| Year | 2017 |
| Engine Type | Four stroke, horizontally opposed (boxer) six cylinder, SOHC, 2 valves per cylinder |
| Displacement / Capacity | 1832 cc / 111.8 cu in |
| Bore X Stroke | 74 x 71 mm |
| Compression Ratio | 9.8:1 |
| Cooling System | Liquid cooled |
| Max Power | 86 kW / 118 hp @ 5500 rpm |
| Max Torque | 167 Nm / 17.03 kgf-m / 120.9 lb-ft @ 4000 rpm |
| Ignition | Computer controlled digital with 3-D mapping |
| Induction | PGM-FI electronic fuel injection, 40 mm throttle bore, automatic choke |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed (incl. overdrive) |
| Clutch | Hydraulic |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | Twin-spar aluminium |
| Front Suspension | 45 mm cartridge fork with anti-dive system |
| Rear Suspension | Pro Arm single-side swingarm, Pro-Link single shock with electronic/remote spring preload adjustment (two memory presets) |
| Front Brakes | 2 x 296 mm discs, 3 piston calipers (combined braking) |
| Rear Brakes | Single 316 mm ventilated disc, 3 piston caliper (combined braking) |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 725 mm / 28.5 in |
| Wheelbase | 1689 mm / 66.5 in |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 390 kg / 844 lbs |
| WHEEL SPECS | |
| Front Tyre | 130/70 R18 |
| Rear Tyre | 180/60 R16 |
| FUEL SYSTEM | |
| Fuel Capacity | 25 Litres / 6.6 US gal |
| Fuel Consumption | 34 US mpg / 6.9 L/100 km (EPA estimate) |
| Top Speed | — |
The final model year of the standard F6B, the lighter, blacked-out bagger derived from the GL1800 Gold Wing with a short screen, no top box and twin lockable panniers. Mechanically it continued unchanged with the 1832 cc flat-six, five-speed gearbox and shaft drive; for 2017 the standard bike came in Matte Silver.
