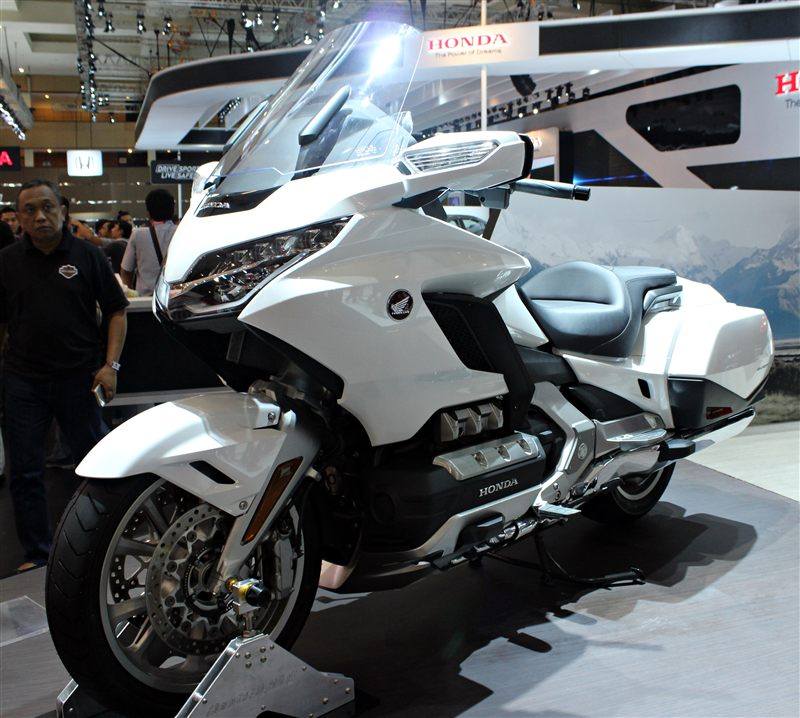

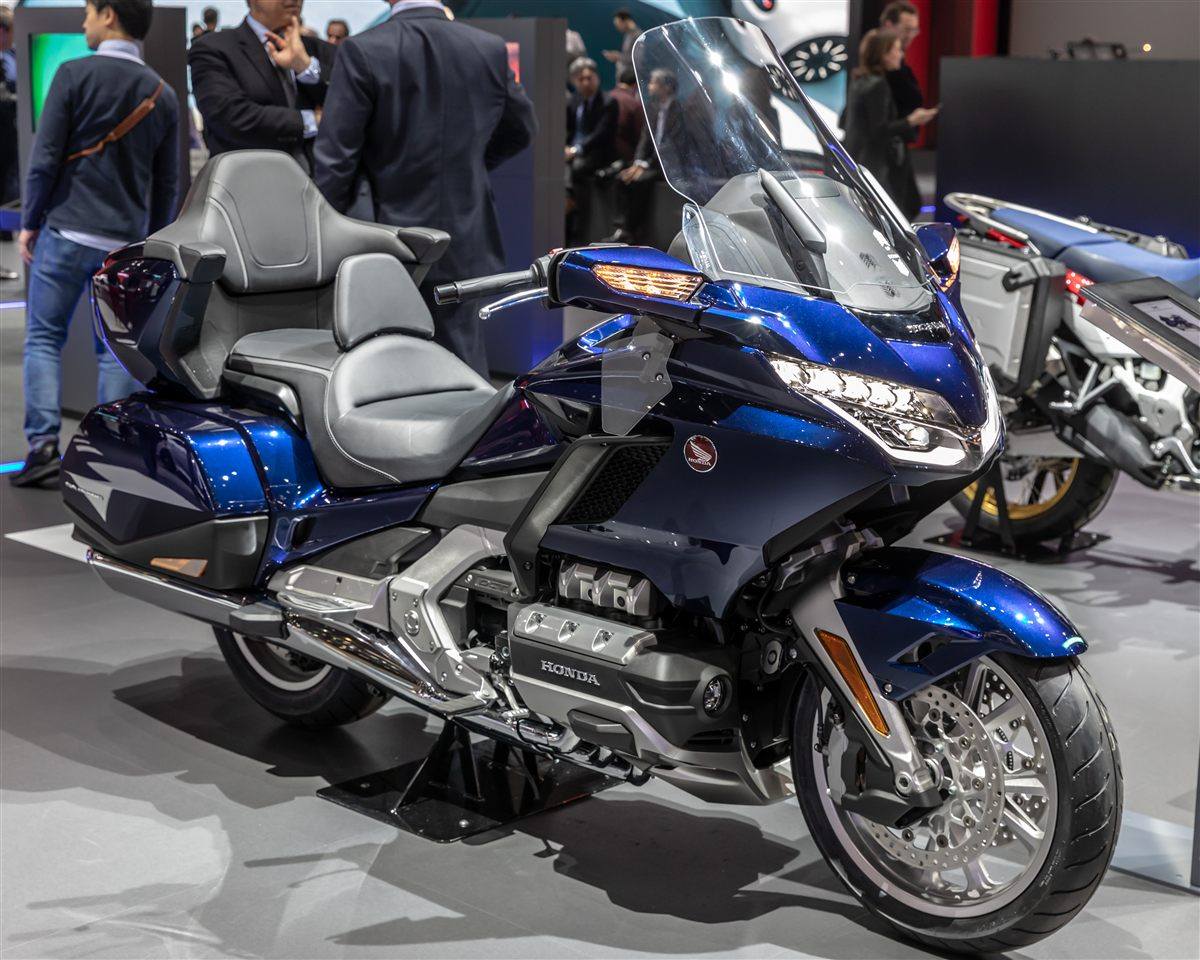

| MODEL | HONDA GL 1800 GOLD WING TOUR / AUTOMATIC-DCT 2022 - 2023 |
| Year | 2022 - 2023 |
| Engine Type | Four-stroke, horizontally opposed six-cylinder (flat six), SOHC, 4 valves per cylinder |
| Displacement / Capacity | 1833 cc / 111.85 cu in |
| Bore X Stroke | 73 x 73 mm |
| Compression Ratio | 10.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 93 kW / 124.7 hp @ 5500 rpm |
| Max Torque | 170 Nm / 125.3 lb-ft @ 4500 rpm |
| Ignition | Computer-controlled digital |
| Induction | PGM-FI electronic fuel injection, 50 mm throttle body |
| Start System | Integrated Starter Generator (ISG) |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed manual with electric reverse, or 7-speed DCT with forward / reverse |
| Clutch | MT: hydraulic, wet, multiplate, coil springs, assist / slipper cam; DCT: hydraulic, wet, multiplate, oil-pressure operated |
| Final Drive | Enclosed shaft |
| CHASSIS SPECS | |
| Frame | Die-cast aluminium, twin tube |
| Front Suspension | Double-wishbone, electrically adjustable damping, 110 mm / 4.3 in travel |
| Rear Suspension | Pro-Link with Showa shock absorber, electrically adjustable preload, 104 mm / 4.1 in travel |
| Front Brakes | 2 x 320 mm floating discs, 6-piston Nissin calipers, sintered pads, combined ABS |
| Rear Brakes | Single 316 mm ventilated disc, 3-piston Nissin caliper, sintered pads, combined ABS |
| DIMENSION SPECS | |
| Overall Length | 2615 mm / 102.9 in |
| Overall Width | 905 mm / 35.6 in (DCT); 925 mm / 36.4 in (MT) |
| Overall Height | 1430 mm / 56.2 in |
| Seat Height | 745 mm / 29.3 in |
| Wheelbase | 1695 mm / 66.7 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | — |
| Wet Weight | 385 kg / 848.7 lbs (MT); 390 kg / 859.8 lbs (DCT with airbag) |
| WHEEL SPECS | |
| Front Tyre | 130/70R18 |
| Rear Tyre | 200/55R16 |
| FUEL SYSTEM | |
| Fuel Capacity | 21.1 Litres / 5.57 US gal |
| Fuel Consumption | 5.5 L/100 km |
| Top Speed | — |
The 2022-23 Gold Wing Tour carries electrically adjustable suspension, a 7-inch TFT screen, smartphone connectivity and full luggage on the 2018-generation flat-six chassis. Europe offered a manual version and a DCT version with airbag, the latter also getting idling stop.
