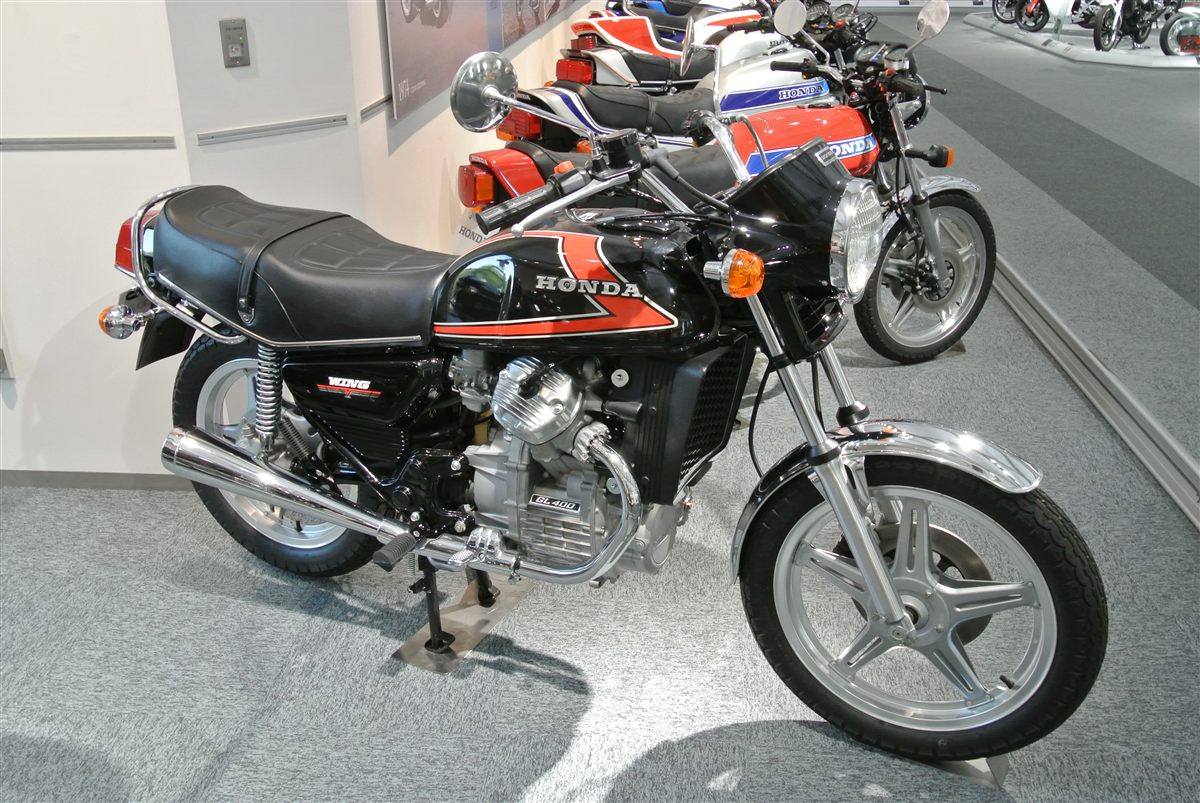

| MODEL | HONDA GL 400 WING 1979 |
| Year | 1979 |
| Engine Type | Four-stroke, longitudinal 80° V-twin, OHV pushrod, 4 valves per cylinder |
| Displacement / Capacity | 396 cc / 24.2 cu in |
| Bore X Stroke | 73 x 47.4 mm |
| Compression Ratio | 10.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 29.8 kW / 40 hp @ 9500 rpm |
| Max Torque | 32 Nm / 23.6 lb-ft @ 7500 rpm |
| Ignition | Transistor |
| Induction | 2 x CV carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | Steel tube and pressed-steel diamond |
| Front Suspension | Telescopic forks |
| Rear Suspension | Dual shocks |
| Front Brakes | Single 275 mm disc, 2 piston caliper |
| Rear Brakes | Drum, leading-trailing |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | 200 kg / 440.9 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 3.50S19-4PR |
| Rear Tyre | 3.75S18-4PR |
| FUEL SYSTEM | |
| Fuel Capacity | 18 Litres / 4.8 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The GL400 was the 400 cc Japanese-market sister of the CX500, using a smaller-bore liquid-cooled 80-degree V-twin with pushrod-operated four-valve heads and shaft drive. It suited Japan's 400 cc licence class and offered a smooth, low-maintenance road bike on Comstar wheels. The 1979 bike was the original version with a single front disc, before the 1981 Wing update brought twin discs and air-assisted forks.
