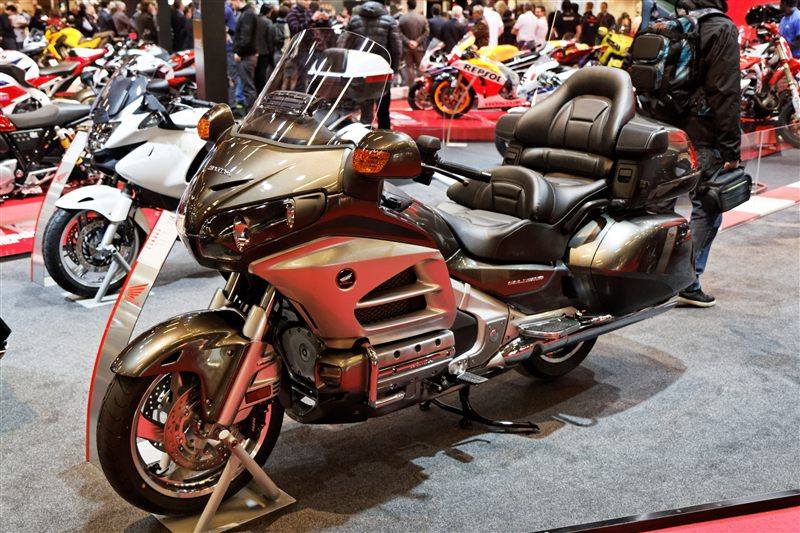

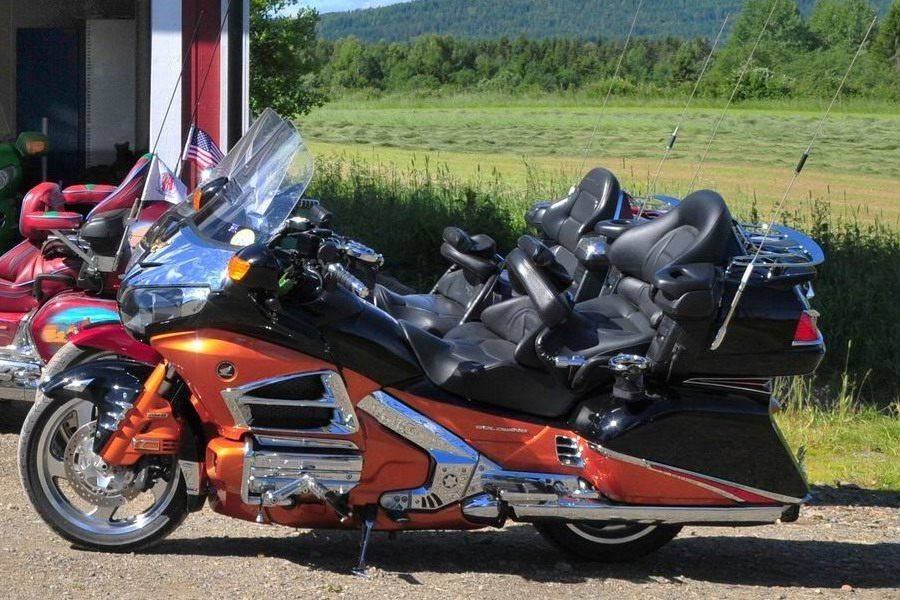

| MODEL | HONDA GLX 1800 GOLD WING 2016 - 2017 |
| Year | 2016 - 2017 |
| Engine Type | Four stroke, horizontally opposed (boxer) six cylinder, SOHC, 2 valves per cylinder |
| Displacement / Capacity | 1832 cc / 111.8 cu in |
| Bore X Stroke | 74 x 71 mm |
| Compression Ratio | 9.8:1 |
| Cooling System | Liquid cooled |
| Max Power | 86 kW / 118 hp @ 5500 rpm |
| Max Torque | 167 Nm / 17.03 kgf-m / 120.9 lb-ft @ 4000 rpm |
| Ignition | Computer controlled digital |
| Induction | PGM-FI electronic fuel injection, 40 mm throttle bore, automatic choke |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed, plus electric reverse |
| Clutch | Hydraulic |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 45 mm fork with anti-dive system, 140 mm / 5.5 in travel |
| Rear Suspension | Pro Arm single-sided swingarm with Pro-Link, electronically adjustable spring preload with two memory presets, 104 mm / 4.1 in travel |
| Front Brakes | 2 x 296 mm discs, 3 piston calipers |
| Rear Brakes | Single 316 mm disc, 3 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2630 mm / 103.5 in |
| Overall Width | 945 mm / 37.2 in |
| Overall Height | 1455 mm / 57.2 in |
| Seat Height | 740 mm / 29.1 in |
| Wheelbase | 1689 mm / 66.5 in |
| Ground Clearance | 125 mm / 4.9 in |
| Dry Weight | — |
| Wet Weight | 410 kg / 904 lbs |
| WHEEL SPECS | |
| Front Tyre | 130/70 R18 |
| Rear Tyre | 180/60 R16 |
| FUEL SYSTEM | |
| Fuel Capacity | 25 Litres / 6.6 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The final run of the long-lived GL1800 design before the completely new 2018 Gold Wing. It was sold in Audio Comfort, Audio Comfort Navi XM and Audio Comfort Navi XM ABS packages, with improved navigation featuring lane guidance and route sharing, SiriusXM traffic and weather, surround-sound audio, heated comfort equipment and combined ABS on the top version.
