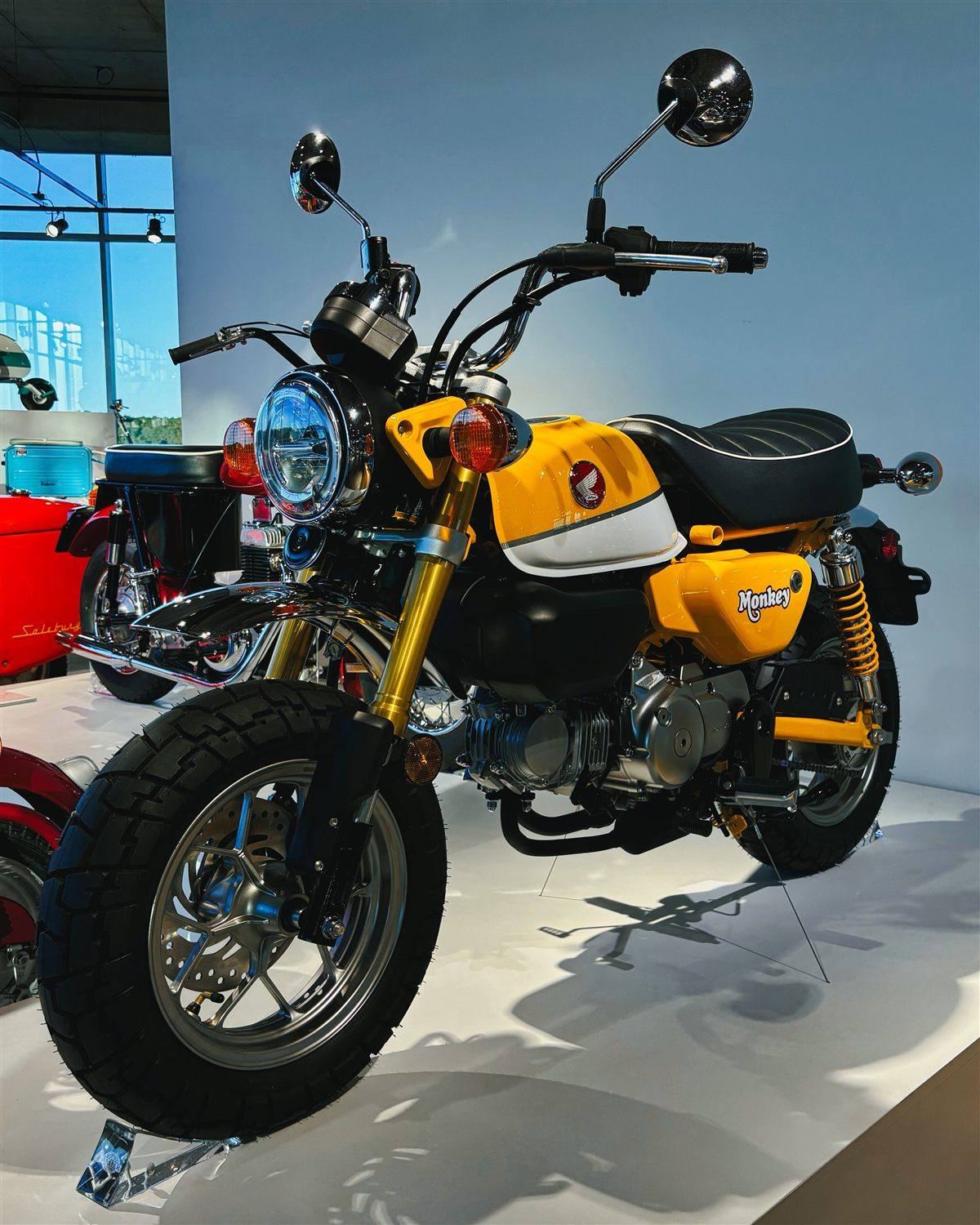

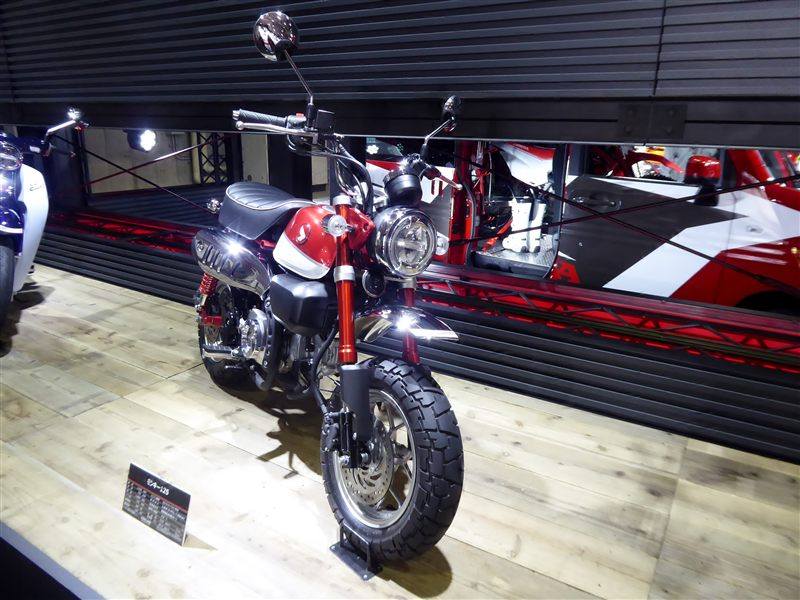

| MODEL | HONDA MONKEY 125 ABS 2020 - 2021 |
| Year | 2020 - 2021 |
| Engine Type | Four stroke, single cylinder, SOHC, 2 valve |
| Displacement / Capacity | 124.9 cc / 7.62 cu in |
| Bore X Stroke | 52.4 x 57.9 mm |
| Compression Ratio | 9.3:1 |
| Cooling System | Air cooled |
| Max Power | 6.9 kW / 9.2 hp @ 7000 rpm |
| Max Torque | 11 Nm / 8.1 lb-ft @ 5250 rpm |
| Ignition | Electronic CDI |
| Induction | PGM-FI electronic fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 4 Speed |
| Clutch | Wet multiplate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel mono-backbone |
| Front Suspension | Upside down telescopic forks, 100 mm / 3.9 in travel |
| Rear Suspension | Dual shocks, 104 mm / 4.1 in travel |
| Front Brakes | Single 220 mm hydraulic disc, IMU-based ABS |
| Rear Brakes | Single 190 mm hydraulic disc |
| DIMENSION SPECS | |
| Overall Length | 1710 mm / 67.3 in |
| Overall Width | 755 mm / 29.7 in |
| Overall Height | 1029 mm / 40.5 in |
| Seat Height | 776 mm / 30.5 in |
| Wheelbase | 1155 mm / 45.4 in |
| Ground Clearance | 160 mm / 6.3 in |
| Dry Weight | — |
| Wet Weight | 107 kg / 235.8 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/80-12 65J |
| Rear Tyre | 130/80-12 69J |
| FUEL SYSTEM | |
| Fuel Capacity | 5.6 Litres / 1.45 US gal |
| Fuel Consumption | 67 km/L (WMTC) |
| Top Speed | — |
For 2020 and 2021 the Monkey 125 carried on essentially unchanged, still with the 52.4 x 57.9 mm 125 cc engine and four-speed gearbox. Updates were limited to colours, while the USD fork, twin shocks, LED lighting and IMU ABS stayed. This was the last version before the 5-speed engine arrived for 2022.
