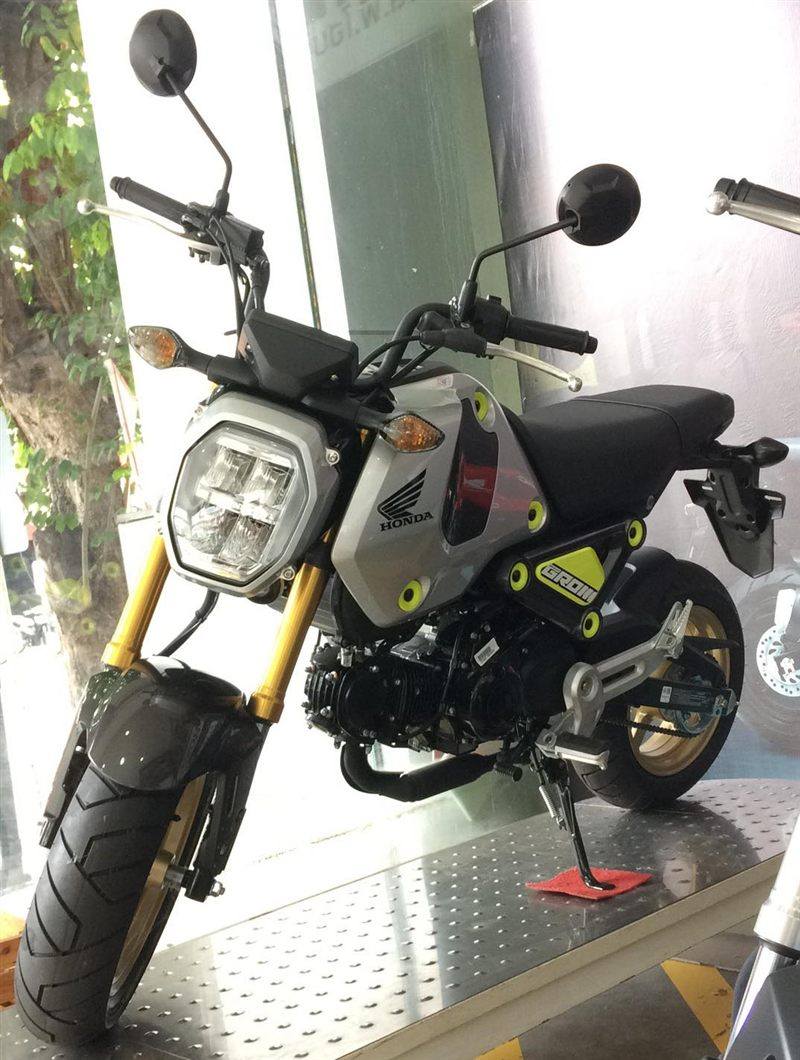

| MODEL | HONDA MSX 125 / GROM 2015 - 2016 |
| Year | 2015 - 2016 |
| Engine Type | Four stroke, single cylinder, SOHC, 2 valve |
| Displacement / Capacity | 124.9 cc / 7.62 cu in |
| Bore X Stroke | 52.4 x 57.9 mm |
| Compression Ratio | 9.3:1 |
| Cooling System | Air cooled |
| Max Power | 7.1 kW / 9.6 hp @ 7000 rpm |
| Max Torque | 10.9 Nm / 8.0 lb-ft @ 5500 rpm |
| Ignition | CDI |
| Induction | PGM-FI electronic fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 4 Speed |
| Clutch | Wet multiplate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel mono-backbone |
| Front Suspension | 31 mm upside-down telescopic forks |
| Rear Suspension | Monoshock, steel square-section swingarm |
| Front Brakes | Single 220 mm disc, hydraulic dual-piston caliper |
| Rear Brakes | Single 190 mm disc, hydraulic single-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 1365 mm / 53.7 in |
| Overall Width | 600 mm / 23.6 in |
| Overall Height | — |
| Seat Height | 765 mm / 30.1 in |
| Wheelbase | 1200 mm / 47.2 in |
| Ground Clearance | 160 mm / 6.3 in |
| Dry Weight | — |
| Wet Weight | 101.7 kg / 224.2 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70-12 |
| Rear Tyre | 130/70-12 |
| FUEL SYSTEM | |
| Fuel Capacity | 5.5 Litres / 1.45 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The MSX125/Grom continued unchanged for 2015, then received a mini-streetfighter restyle for 2016. The update brought a new tank and side panels, stacked LED headlights, an upswept tail with LED light, a raised pillion seat and a stubby under-slung exhaust. The 125 cc four-speed engine, USD fork and disc brakes carried over.
