| MODEL | HONDA NC 700X / DCT 2012 - 2013 |
| Year | 2012 - 2013 |
| Engine Type | Four stroke, parallel twin, SOHC, 4 valves per cylinder |
| Displacement / Capacity | 670 cc / 40.8 cu in |
| Bore X Stroke | 73 x 80 mm |
| Compression Ratio | 10.7:1 |
| Cooling System | Liquid cooled |
| Max Power | 38.1 kW / 51.1 hp @ 6250 rpm |
| Max Torque | 62 Nm / 46 lb-ft @ 4750 rpm |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Induction | PGM-FI electronic fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed manual (DCT: 6-speed dual clutch transmission) |
| Clutch | Wet multiplate (DCT: wet multiplate hydraulic 2-clutch) |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Rigid tube steel diamond |
| Front Suspension | 41 mm telescopic forks, 153 mm / 6.0 in travel |
| Rear Suspension | Pro-Link single monoshock, 150 mm / 5.9 in travel |
| Front Brakes | Single 320 mm hydraulic disc, 3-piston caliper, sintered metal pads |
| Rear Brakes | Single 240 mm hydraulic disc, 1-piston caliper, sintered metal pads |
| DIMENSION SPECS | |
| Overall Length | 2210 mm / 87.0 in |
| Overall Width | 830 mm / 32.7 in |
| Overall Height | 1285 mm / 50.6 in |
| Seat Height | 830 mm / 32.7 in |
| Wheelbase | 1540 mm / 60.6 in |
| Ground Clearance | 165 mm / 6.5 in |
| Dry Weight | — |
| Wet Weight | 218 kg / 481 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70-ZR17 |
| Rear Tyre | 160/60-ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 14.1 Litres / 3.7 US gal |
| Fuel Consumption | 78.8 mpg (WMTC) |
| Top Speed | — |

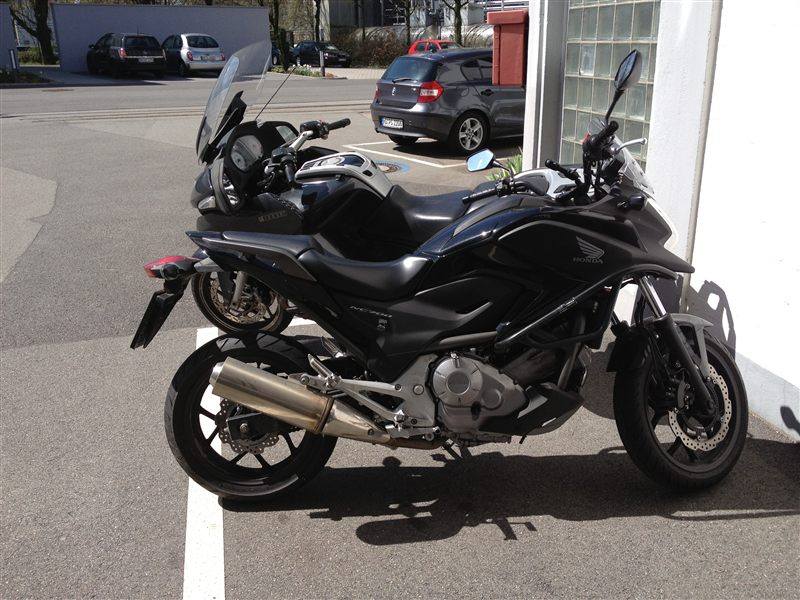

Photo: Cweinandt, CC BY-SA 3.0, via Wikimedia Commons
Photo: Cweinandt, CC BY-SA 3.0, via Wikimedia Commons
The NC700X was the crossover member of the NC700 family, using the same economical 670 cc twin and dummy-tank storage bin as the S but with longer-travel suspension, a taller seat and adventure-style bodywork. Its relaxed, torquey character and very low fuel use made it a big seller in Europe, and Cycle World named it the best standard motorcycle of 2012. A manual gearbox or Honda's dual-clutch automatic were offered.
