| MODEL | HONDA NS 250R 1984 - 1986 |
| Year | 1984 - 1986 |
| Engine Type | Two stroke, 90° V-twin |
| Displacement / Capacity | 249 cc / 15.2 cu in |
| Bore X Stroke | 56 x 50.6 mm |
| Compression Ratio | 7.3:1 |
| Cooling System | Liquid cooled |
| Max Power | 32.8 kW / 45 hp @ 9500 rpm |
| Max Torque | 35 Nm / 25.8 lb-ft @ 8500 rpm |
| Ignition | Electronic CDI, PGM II |
| Induction | Carburettor |
| Start System | Kick |
| TRANSMISSION SPECS | |
| Lubrication | Injected 2-stroke oil |
| Gear Box | 6-speed |
| Clutch | Wet plate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Twin spar aluminium |
| Front Suspension | Telescopic fork |
| Rear Suspension | Swingarm |
| Front Brakes | 2x 276 mm discs, 2-piston calipers |
| Rear Brakes | Single 220 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | 144 kg / 317 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 100/80-17 |
| Rear Tyre | 130/70-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 19 Litres / 5.0 US gal |
| Fuel Consumption | — |
| Top Speed | — |

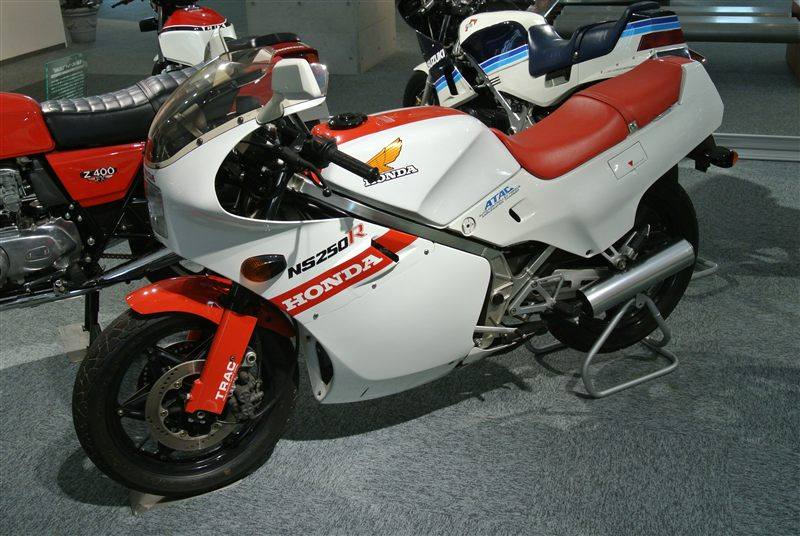

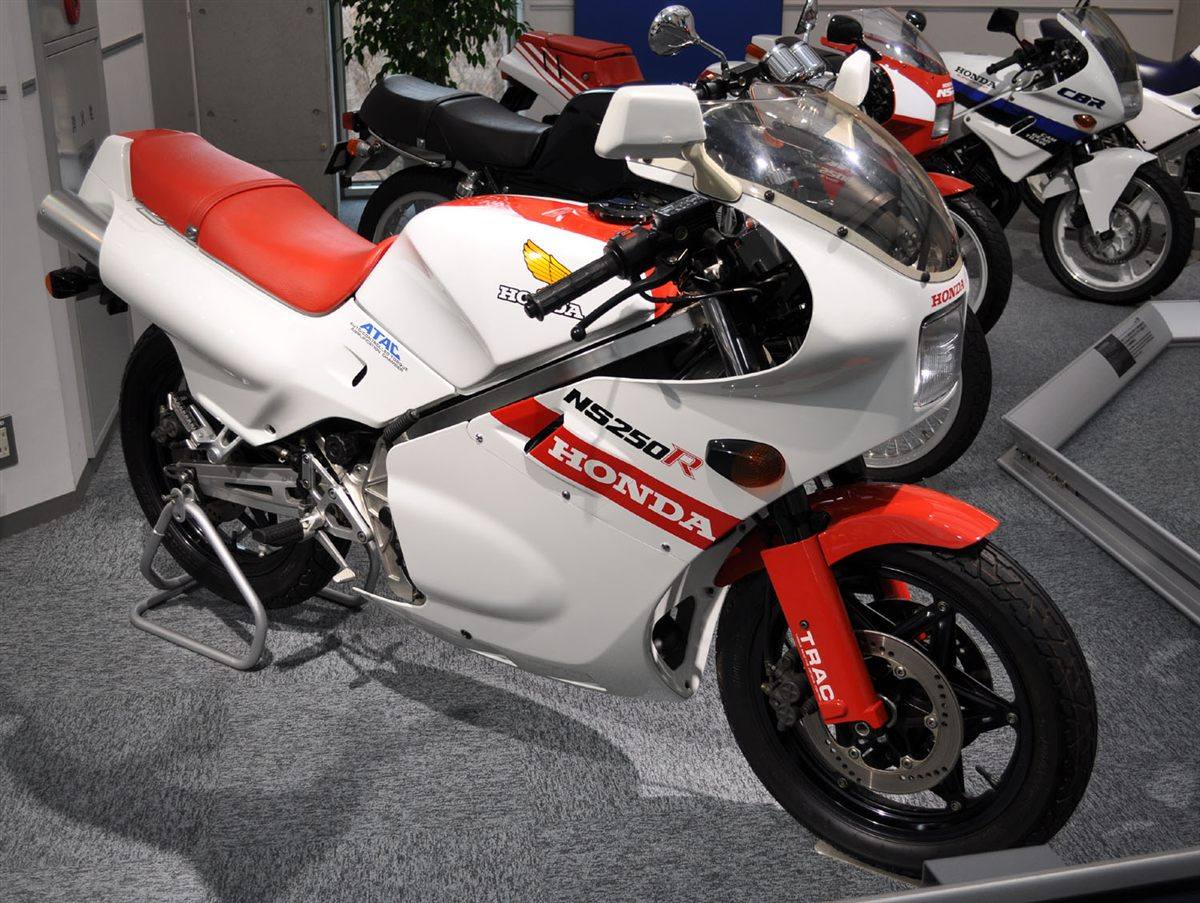

The NS250R was Honda's first real road-going replica of its 250 cc Grand Prix bikes, with a liquid-cooled 90-degree V-twin two-stroke, RC power valves in the exhausts and an aluminium frame. It was a sharp, light handler on fast bends and circuits, but its narrow, peaky power band and two-stroke smoke made it hard work in traffic. It was replaced by the all-new NSR250R.
