| MODEL | HONDA NS 400R 1985 |
| Year | 1985 |
| Engine Type | Two-stroke, 90° V3, reed valve |
| Displacement / Capacity | 387 cc / 23.6 cu in |
| Bore X Stroke | 57 x 50.6 mm |
| Compression Ratio | 6.7:1 |
| Cooling System | Liquid cooled |
| Max Power | 52.5 kW / 72 hp @ 9500 rpm |
| Max Torque | 50 Nm / 5.1 kgf-m / 36.9 lb-ft @ 8000 rpm |
| Ignition | CDI |
| Induction | 3 x 26 mm Keihin carburettors |
| Start System | Kick |
| TRANSMISSION SPECS | |
| Lubrication | Oil injection |
| Gear Box | 6-speed |
| Clutch | Wet |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Double cradle, box-section aluminium |
| Front Suspension | Air-assisted fork, adjustable anti-dive, 120 mm / 4.7 in travel |
| Rear Suspension | Pro-Link, adjustable preload, 100 mm / 3.9 in travel |
| Front Brakes | 2 x 256 mm discs, 2-piston calipers |
| Rear Brakes | Single 220 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2065 mm / 81.2 in |
| Overall Width | 720 mm / 28.3 in |
| Overall Height | 1150 mm / 45.2 in |
| Seat Height | 780 mm / 30.7 in |
| Wheelbase | 1385 mm / 54.5 in |
| Ground Clearance | — |
| Dry Weight | 163 kg / 359 lbs |
| Wet Weight | 183 kg / 403.4 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90-16 |
| Rear Tyre | 110/90-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 19 Litres / 5.0 US gal |
| Fuel Consumption | 30 mpg |
| Top Speed | 202 km/h / 125.5 mph |
Photo: MotorideSA, CC BY-SA 4.0, via Wikimedia Commons

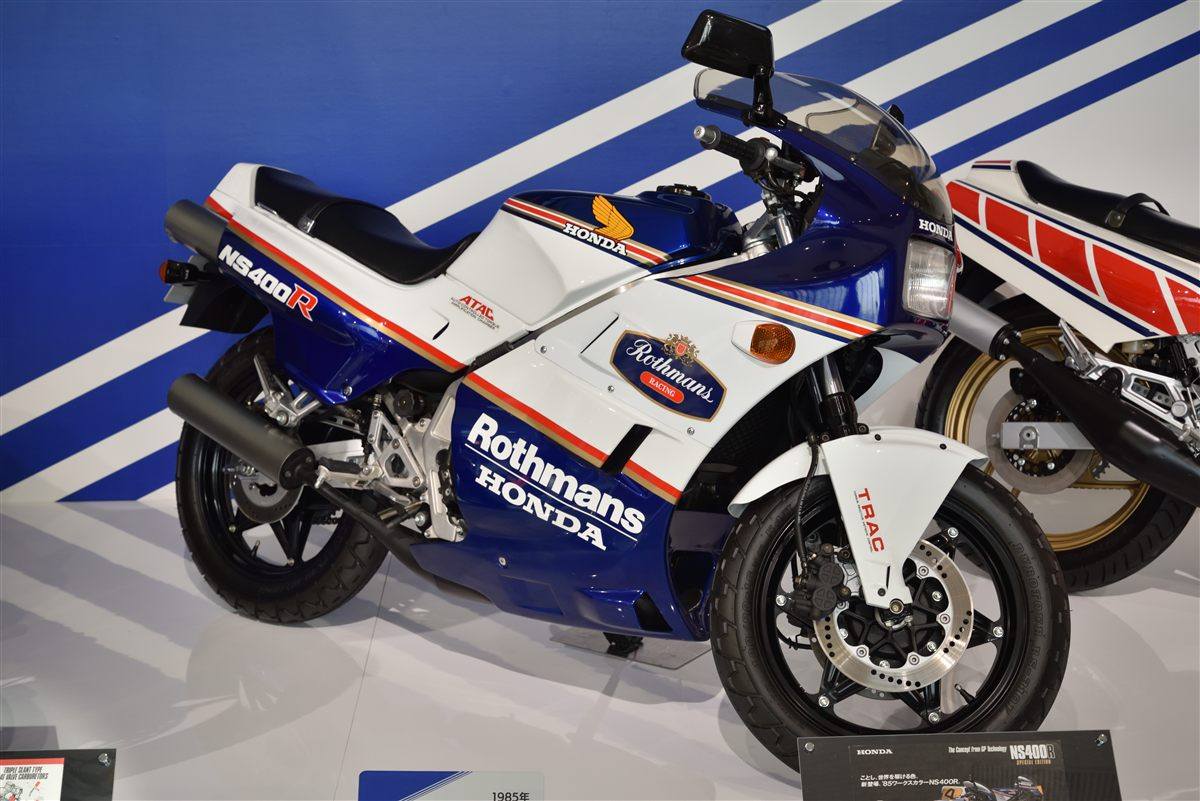

Photo: HSchWP, CC BY-SA 4.0, via Wikimedia Commons
The NS400R was Honda's road-going take on the NS500 V3 that Freddie Spencer rode to the 1983 500cc world title. Its compact liquid-cooled 387 cc V3 two-stroke sits low in a short-wheelbase alloy chassis, giving quick, precise steering and strong brakes. Power arrives smoothly for a two-stroke, building hard from around 5,000 rpm.
