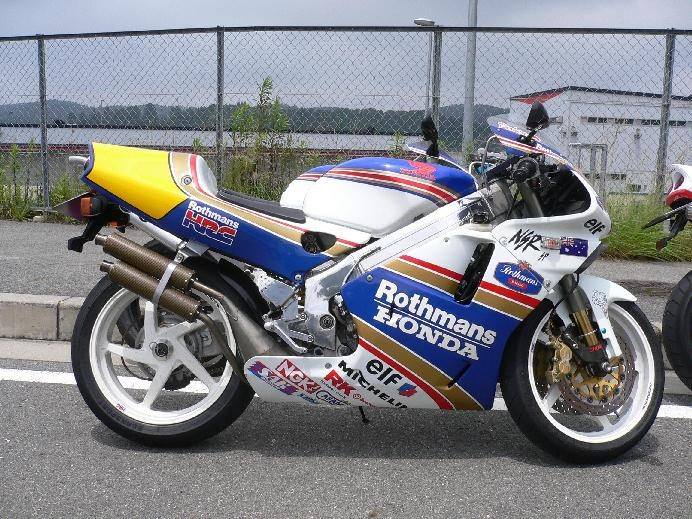

| MODEL | HONDA NSR 250SE 1996 |
| Year | 1996 |
| Engine Type | Two-stroke, 90° V-twin, reed valve, exhaust valve |
| Displacement / Capacity | 249 cc / 15.2 cu in |
| Bore X Stroke | 54 x 54.5 mm |
| Compression Ratio | 7.4:1 |
| Cooling System | Liquid cooled |
| Max Power | 29.4 kW / 40 hp @ 9000 rpm |
| Max Torque | 32.4 Nm / 3.3 kgf-m / 23.9 lb-ft @ 8000 rpm |
| Ignition | PGM-CDI |
| Induction | TB10 carburettor, PGM-IV control |
| Start System | Kick |
| TRANSMISSION SPECS | |
| Lubrication | Separate pump (engine), splash type (transmission) |
| Gear Box | 6-speed, constant mesh |
| Clutch | Dry multi-plate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Aluminium tube type |
| Front Suspension | 41 mm Showa telescopic fork, fully adjustable |
| Rear Suspension | Pro-Arm single-sided swingarm, Pro-Link single Showa shock, adjustable |
| Front Brakes | 2 x discs, 2-piston calipers |
| Rear Brakes | Single disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 1970 mm / 77.5 in |
| Overall Width | 650 mm / 25.5 in |
| Overall Height | 1045 mm / 41.1 in |
| Seat Height | 770 mm / 30.3 in |
| Wheelbase | 1340 mm / 52.7 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | 138 kg / 304.2 lbs |
| Wet Weight | 157 kg / 346 lbs |
| WHEEL SPECS | |
| Front Tyre | 110/70-17 54H |
| Rear Tyre | 150/60-R17 66H |
| FUEL SYSTEM | |
| Fuel Capacity | 16 Litres / 4.2 US gal |
| Fuel Consumption | — |
| Top Speed | — |
With the base R gone, the SE became the entry NSR250 for 1996, offered in two new colour schemes at 720,000 yen. It kept the dry clutch and adjustable suspension, and SE production continued until May 1999, making it the last NSR250 on sale.
