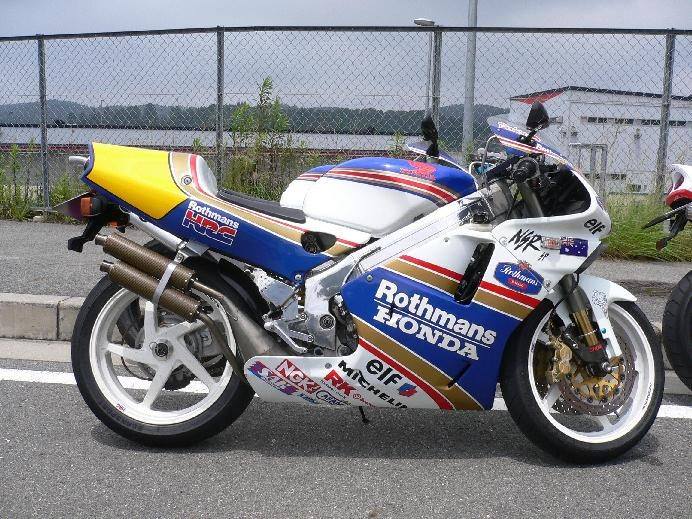

| MODEL | HONDA NSR 250SP 1995 |
| Year | 1995 |
| Engine Type | Two-stroke, 90° V-twin, reed valve, exhaust valve |
| Displacement / Capacity | 249 cc / 15.2 cu in |
| Bore X Stroke | 54 x 54.5 mm |
| Compression Ratio | 7.4:1 |
| Cooling System | Liquid cooled |
| Max Power | 29.4 kW / 40 hp @ 9000 rpm |
| Max Torque | 32.4 Nm / 3.3 kgf-m / 23.9 lb-ft @ 8000 rpm |
| Ignition | PGM-CDI |
| Induction | TB10 carburettor, PGM-IV control |
| Start System | Kick |
| TRANSMISSION SPECS | |
| Lubrication | Separate pump (engine), splash type (transmission) |
| Gear Box | 6-speed, constant mesh |
| Clutch | Multi-plate, coil spring |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Aluminium tube type |
| Front Suspension | 41 mm telescopic fork, air valve, semi-adjustable |
| Rear Suspension | Pro-Arm single-sided swingarm, Pro-Link single shock, non-adjustable |
| Front Brakes | 2 x discs, 2-piston calipers |
| Rear Brakes | Single disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 1970 mm / 77.5 in |
| Overall Width | 650 mm / 25.5 in |
| Overall Height | 1045 mm / 41.1 in |
| Seat Height | 770 mm / 30.3 in |
| Wheelbase | 1340 mm / 52.7 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | 138 kg / 304.2 lbs |
| Wet Weight | 157 kg / 346 lbs |
| WHEEL SPECS | |
| Front Tyre | 110/70-17 54H |
| Rear Tyre | 150/60-R17 66H |
| FUEL SYSTEM | |
| Fuel Capacity | 16 Litres / 4.2 US gal |
| Fuel Consumption | — |
| Top Speed | — |
For 1995 the SP dropped the Rothmans scheme for HRC tricolours with carbon-look decals and high-grip Michelin tyres, marking Mick Doohan's 1994 500cc world title. Mechanically it matched the 1994 MC28 SP, and the run was again around 1,500 bikes.
