| MODEL | HONDA NT 650V REVERE 1993 - 1997 |
| Year | 1993 - 1997 |
| Engine Type | Four stroke, 52° V-twin, SOHC, 3 valves per cylinder |
| Displacement / Capacity | 647 cc / 39.4 cu in |
| Bore X Stroke | 79 x 66 mm |
| Compression Ratio | 9.2:1 |
| Cooling System | Liquid cooled |
| Max Power | 40.9 kW / 56.1 hp @ 7897 rpm |
| Max Torque | 56.9 Nm @ 6053 rpm |
| Ignition | Digital transistorized |
| Induction | 2 x 36 mm equal pressure flat slide carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 41 mm telescopic forks |
| Rear Suspension | Pro-Arm single-sided swingarm, single shock, preload and rebound damping adjustment |
| Front Brakes | Single 316 mm disc, 2 piston caliper |
| Rear Brakes | Single 276 mm disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | 188 kg / 414 lbs |
| Wet Weight | 223 kg / 491.6 lbs |
| WHEEL SPECS | |
| Front Tyre | 110/80-17 |
| Rear Tyre | 150/70-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 19 Litres / 5.0 US gal |
| Fuel Consumption | 40 mpg |
| Top Speed | 104 mph |

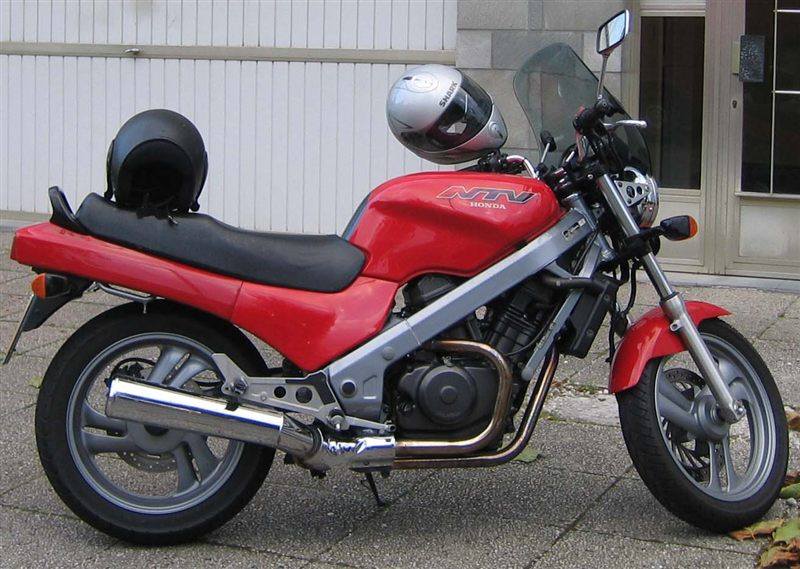

Photo: Wolfgang Lonien, CC BY-SA 2.0, via Wikimedia Commons

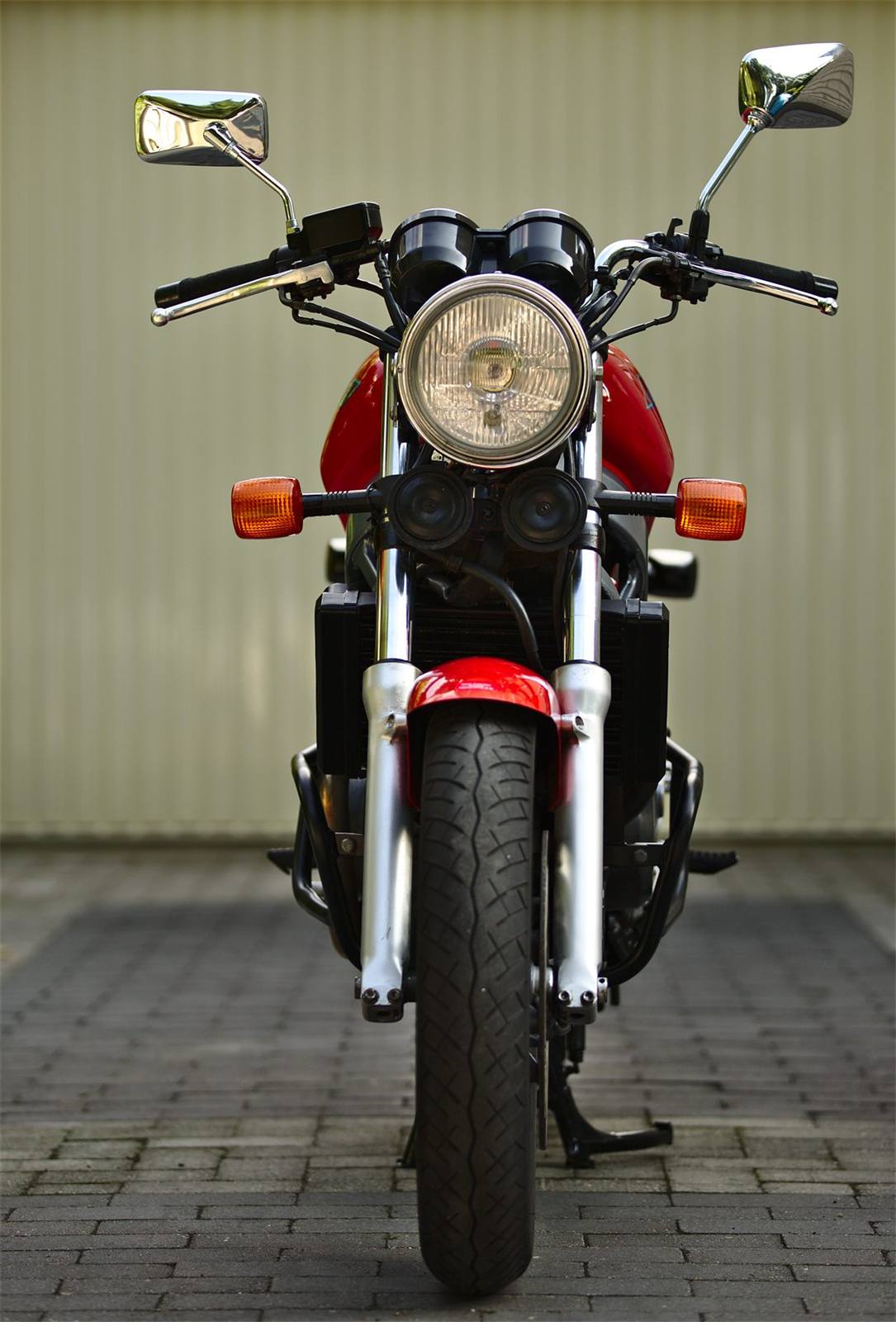

Photo: Gilliom (at Dutch Wikipedia), CC BY-SA 3.0, via Wikimedia Commons
From 1993 the NTV650 replaced the 600 Revere across Europe. It kept the 647 cc V-twin, shaft drive and single-sided swingarm, and in the UK it was sold simply as the NTV. Later bikes were built down to a price, and a longer silencer arrived around 1995. It was the base for the 1998 Deauville tourer.
