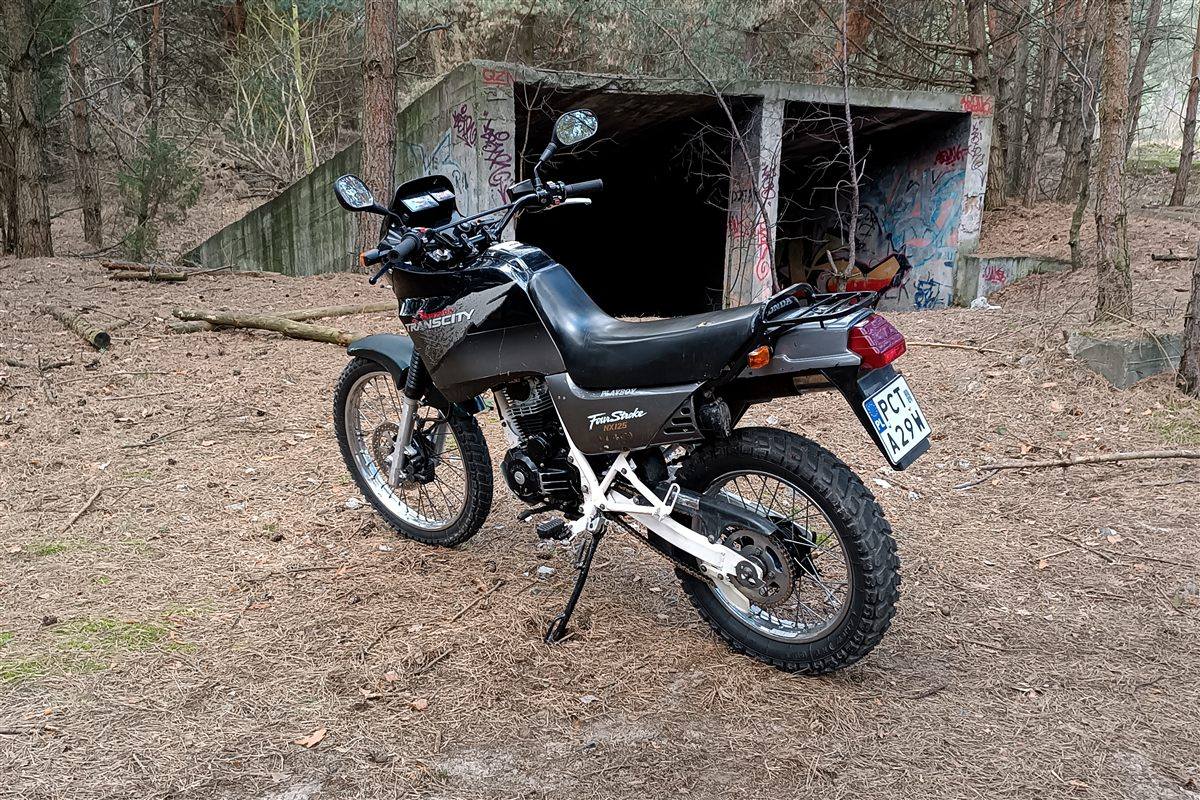

| MODEL | HONDA NX 125 TRANSCITY 1993 - 1996 |
| Year | 1993 - 1996 |
| Engine Type | Four stroke, single cylinder, SOHC, 2 valves |
| Displacement / Capacity | 124.8 cc / 7.6 cu in |
| Bore X Stroke | 56.5 x 49.5 mm |
| Compression Ratio | 9.5:1 |
| Cooling System | Air cooled |
| Max Power | 9.5 kW / 13 hp @ 9000 rpm |
| Max Torque | 12 Nm / 8.9 lb-ft (1.0 kgf-m) @ 7500 rpm |
| Ignition | CDI |
| Induction | Single 24 mm carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Wet multi-plate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel single cradle |
| Front Suspension | 35 mm hydraulic telescopic forks, 204 mm / 8 in wheel travel |
| Rear Suspension | Pro-Link monoshock, 180 mm / 7 in wheel travel |
| Front Brakes | Single 240 mm disc, 2-piston caliper |
| Rear Brakes | 110 mm drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 850 mm / 33.5 in |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | 120 kg / 265 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 3.00-21 |
| Rear Tyre | 4.60-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 9 Litres / 2.4 US gal |
| Fuel Consumption | — |
| Top Speed | 110 km/h / 68 mph |
After domestic NX125 production stopped in Japan in 1993, the Transcity carried on as an export model with the same engine, six-speed gearbox and running gear. It remained a simple, low-cost dual-purpose 125 for commuting and light trail use, sold in markets such as France and Italy.
