| MODEL | HONDA NX 250 1988 - 1990 |
| Year | 1988 - 1990 |
| Engine Type | Four stroke, single cylinder, DOHC, 4 valves |
| Displacement / Capacity | 249 cc / 15.2 cu in |
| Bore X Stroke | 70.0 x 64.8 mm |
| Compression Ratio | 11.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 19 kW / 25.5 hp @ 8500 rpm |
| Max Torque | 22 Nm / 16.2 lb-ft @ 5500 rpm |
| Ignition | CDI |
| Induction | PD6B carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Tubular steel double cradle |
| Front Suspension | 37 mm telescopic forks, 220 mm / 8.7 in wheel travel |
| Rear Suspension | Pro-Link swingarm, 200 mm / 7.9 in wheel travel |
| Front Brakes | Single disc |
| Rear Brakes | Drum |
| DIMENSION SPECS | |
| Overall Length | 2040 mm / 80.3 in |
| Overall Width | 805 mm / 31.7 in |
| Overall Height | 1115 mm / 43.9 in |
| Seat Height | 820 mm / 32.3 in |
| Wheelbase | 1350 mm / 53.1 in |
| Ground Clearance | 250 mm / 9.8 in |
| Dry Weight | 118 kg / 260 lbs |
| Wet Weight | 133 kg / 293 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90-19 |
| Rear Tyre | 120/90-16 |
| FUEL SYSTEM | |
| Fuel Capacity | 9 Litres / 2.4 US gal |
| Fuel Consumption | — |
| Top Speed | — |

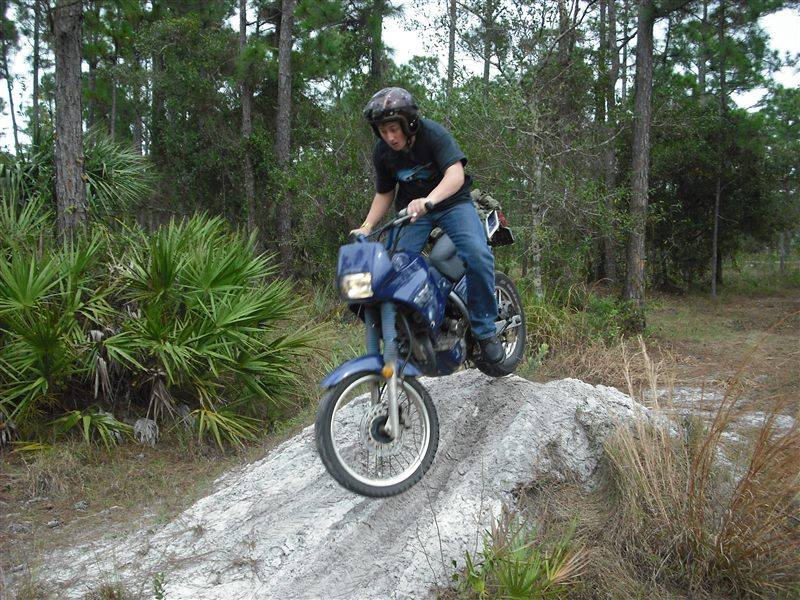

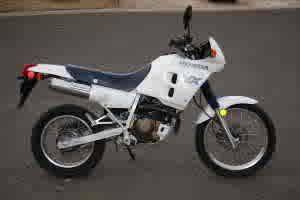

A compact dual-sport sold in the US from 1988 to 1990, unusual for its class in using a liquid-cooled, DOHC four-valve 250 single with electric start and six speeds. Light weight, a modest seat height and a 19/16-inch wheel combination made it nimble in town and on trails. Japan got a dressed-up version called the AX-1 with alloy rims and a rear disc.
