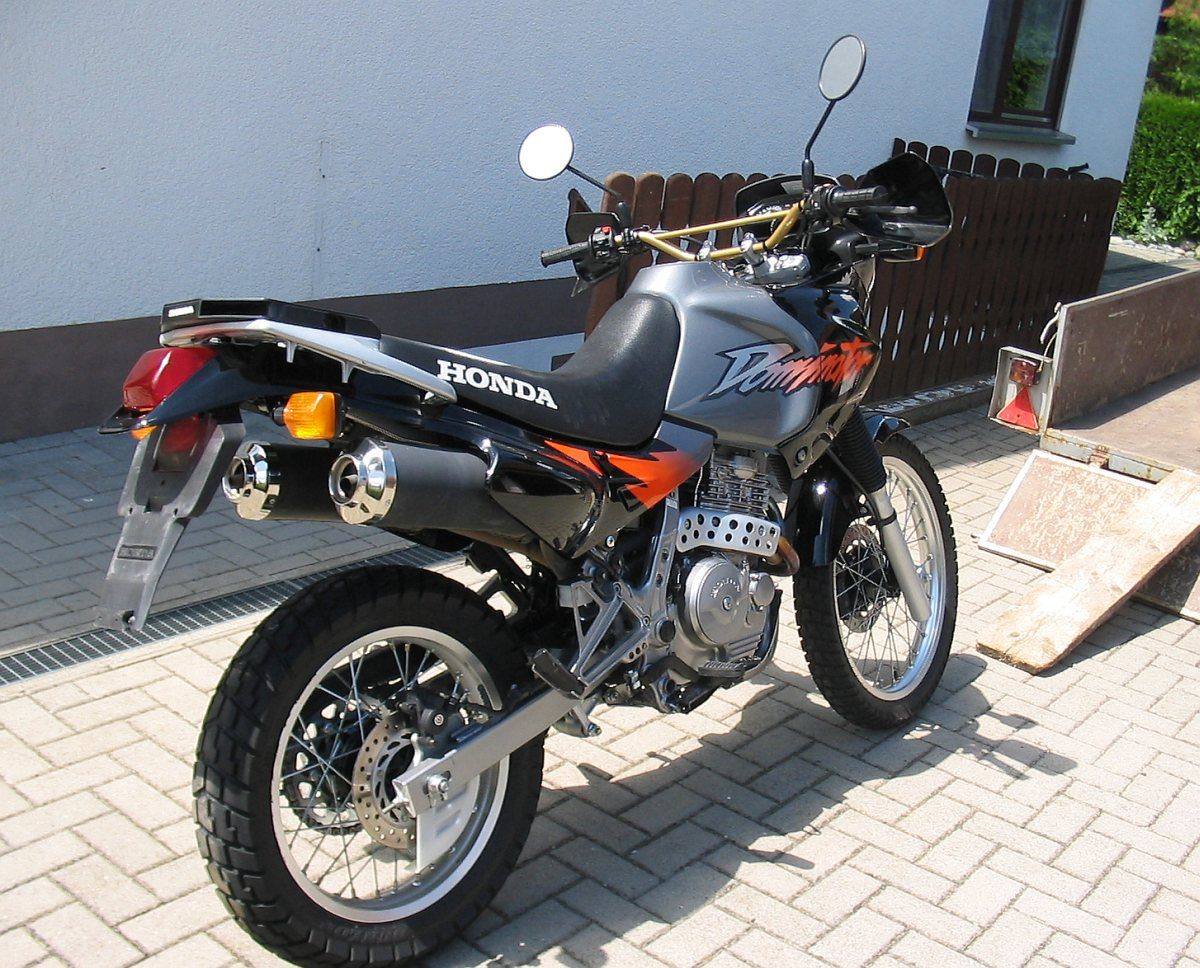

| MODEL | HONDA NX 650 DOMINATOR 1996 |
| Year | 1996 |
| Engine Type | Four-stroke, single cylinder, SOHC, 4 valves |
| Displacement / Capacity | 644 cc / 39.2 cu in |
| Bore X Stroke | 100 x 82 mm |
| Compression Ratio | 8.3:1 |
| Cooling System | Air cooled |
| Max Power | 32 kW / 44 hp @ 6000 rpm |
| Max Torque | 53 Nm / 39 lb-ft @ 5000 rpm |
| Ignition | Digital CDI |
| Induction | Single 40 mm Keihin VE-type carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5-speed |
| Clutch | Wet, multi-plate, cable operated |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel, single cradle |
| Front Suspension | 41 mm leading-axle fork, 220 mm / 8.6 in travel |
| Rear Suspension | Pro-Link single shock, 195 mm / 7.6 in travel |
| Front Brakes | Single 256 mm disc, 2-piston caliper |
| Rear Brakes | Single 220 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 870 mm / 34.3 in |
| Wheelbase | 1435 mm / 56.4 in |
| Ground Clearance | 250 mm / 9.8 in |
| Dry Weight | 163 kg / 359.3 lbs |
| Wet Weight | 178 kg / 392.4 lbs |
| WHEEL SPECS | |
| Front Tyre | 90/90-21 |
| Rear Tyre | 120/90-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 16 Litres / 4.2 US gal |
| Fuel Consumption | 17.8 km/l / 41.9 mpg US |
| Top Speed | 160.8 km/h / 100 mph |
From 1996 final assembly of the Dominator moved from Japan to Honda's Atessa factory in Italy, creating the RD08 version. The move lowered the retail price, though owners later reported that frames and tanks on Italian bikes were less resistant to corrosion. Mechanically it was the same 644 cc single and chassis as before.
