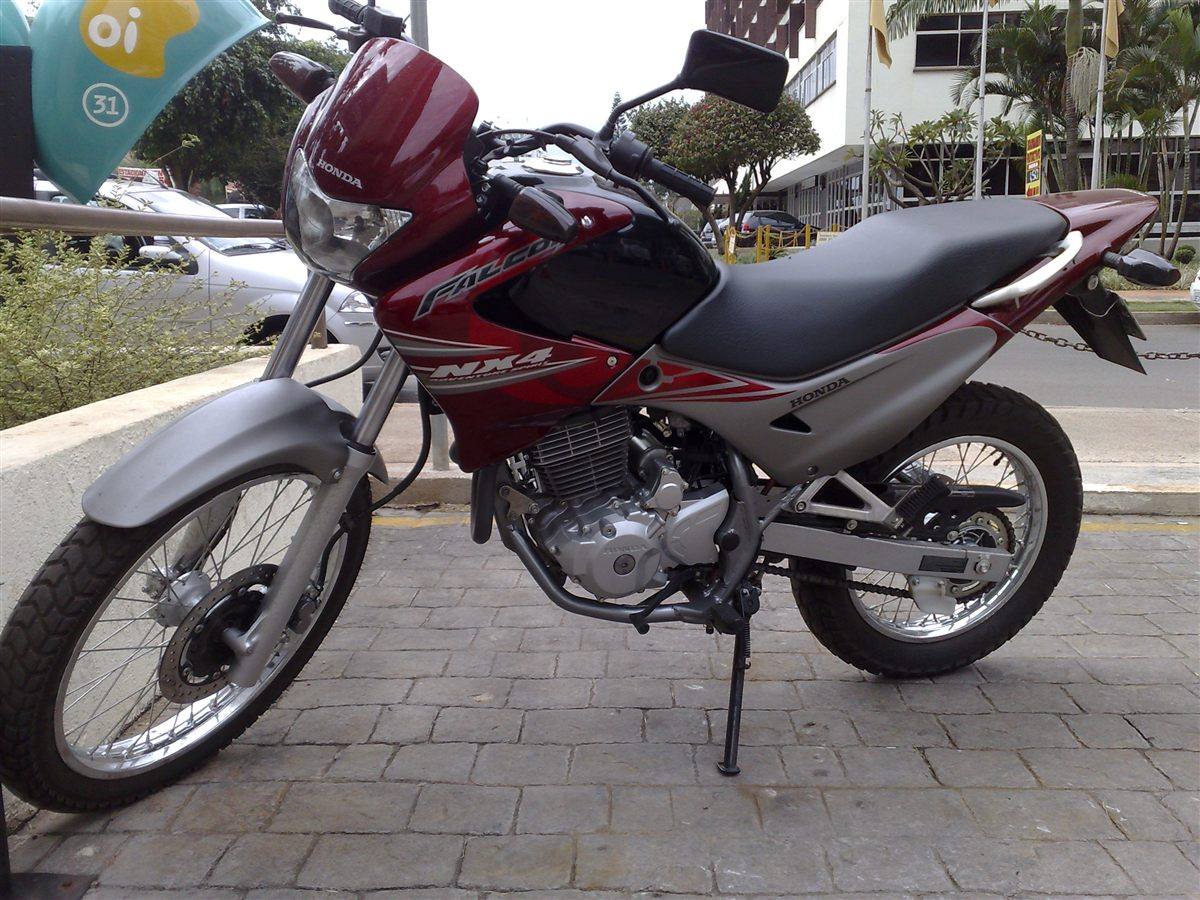

| MODEL | HONDA NX-4 FALCON 1999 - 2008 |
| Year | 1999 - 2008 |
| Engine Type | Four stroke, single cylinder, SOHC, 4 radial valves (RFVC) |
| Displacement / Capacity | 397 cc / 24.2 cu in |
| Bore X Stroke | 85 x 70 mm |
| Compression Ratio | 8.8:1 |
| Cooling System | Air cooled |
| Max Power | 22.8 kW / 30.6 hp @ 6500 rpm |
| Max Torque | 34.4 Nm / 25.3 lb-ft (3.51 kgf-m) @ 6000 rpm |
| Ignition | CDI |
| Induction | 35.3 mm VE carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel double cradle with spine |
| Front Suspension | Telescopic forks, 220 mm / 8.7 in wheel travel |
| Rear Suspension | Pro-Link monoshock, 195 mm / 7.7 in wheel travel |
| Front Brakes | Single 256 mm disc, 2-piston caliper |
| Rear Brakes | Single 220 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2147 mm / 84.5 in |
| Overall Width | 789 mm / 31.1 in |
| Overall Height | — |
| Seat Height | 850 mm / 33.5 in |
| Wheelbase | 1433 mm / 56.4 in |
| Ground Clearance | — |
| Dry Weight | 151 kg / 333 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 90/90-21 |
| Rear Tyre | 120/90-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 15 Litres / 4.0 US gal |
| Fuel Consumption | 20 km/L (city) |
| Top Speed | 150 km/h / 93 mph |
Honda Brazil's successor to the NX 350 Sahara, using a 397 cc air-cooled RFVC single related to the XR400 engine, a five-speed box and disc brakes at both ends. It was a tough, road-friendly trail bike with a roughly 300 km range, widely used in Brazil including by the army. Tighter Brazilian emissions limits ended carburetted production in 2008.
