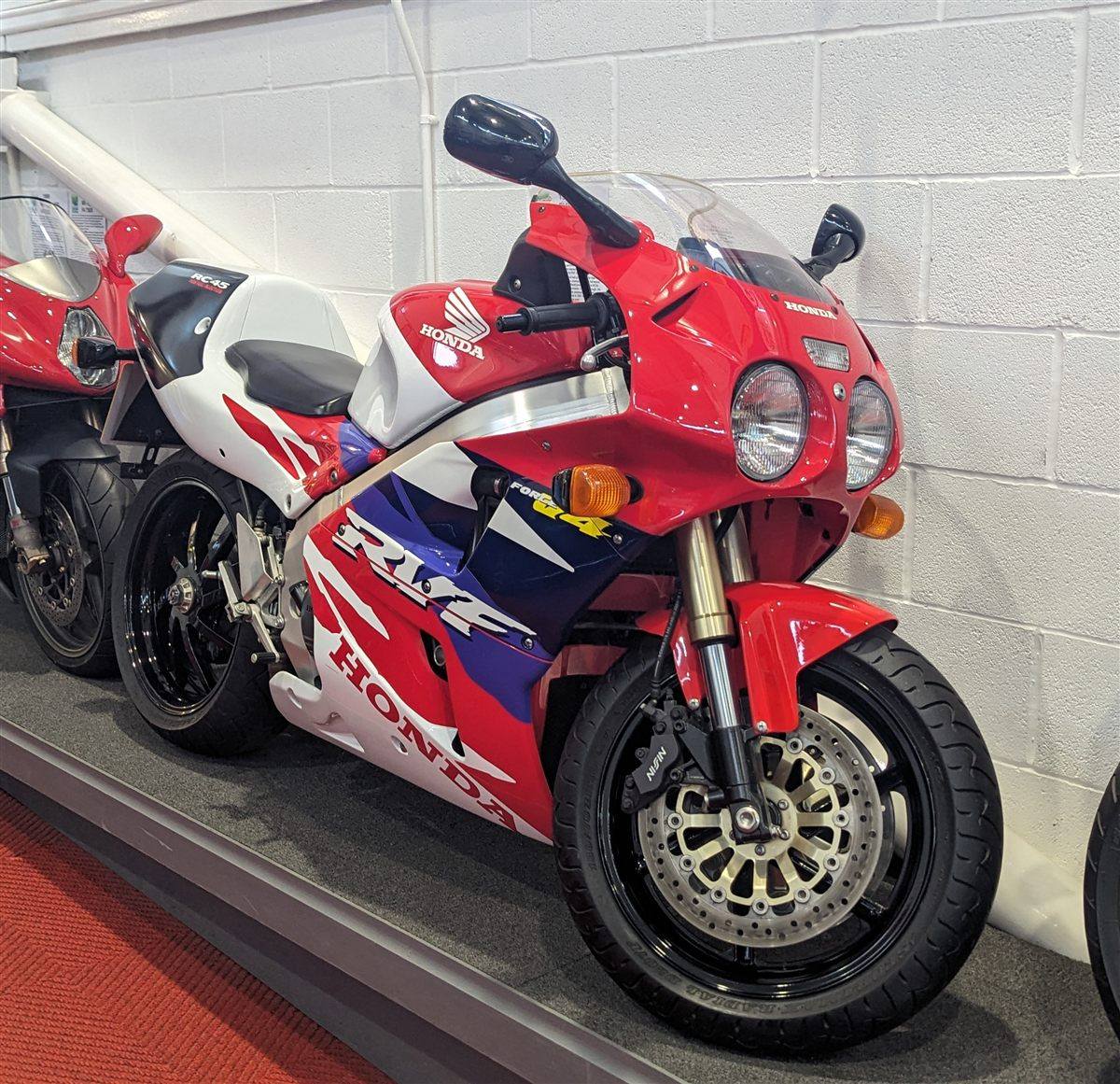

| MODEL | HONDA RC 45 RVF 750 1994 - 1995 |
| Year | 1994 - 1995 |
| Engine Type | Four stroke, 90° V-four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 749 cc / 45.7 cu in |
| Bore X Stroke | 72 x 46 mm |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 87.6 kW / 119 hp @ 12000 rpm |
| Max Torque | 75 Nm / 56 lb-ft @ 10000 rpm |
| Ignition | Digital transistorized, electric advance |
| Induction | PGM-FI programmed fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Wet multiplate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Aluminium twin spar, diamond type |
| Front Suspension | 41 mm USD fork, adjustable preload, compression and rebound |
| Rear Suspension | Pro-Link, adjustable preload, compression and rebound |
| Front Brakes | 2 x 310 mm discs, 4 piston calipers |
| Rear Brakes | Single 220 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2110 mm / 83.0 in |
| Overall Width | 710 mm / 27.9 in |
| Overall Height | 1100 mm / 43.3 in |
| Seat Height | 770 mm / 30.3 in |
| Wheelbase | 1407 mm / 55.3 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | 189 kg / 416.7 lbs |
| Wet Weight | 215 kg / 467.3 lbs |
| WHEEL SPECS | |
| Front Tyre | 130/60 ZR16 |
| Rear Tyre | 190/50 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 18 Litres / 4.0 US gal |
| Fuel Consumption | 15.1 km/l |
| Top Speed | 258.5 km/h / 160.6 mph |
The RVF750R, or RC45, replaced the RC30 as Honda's World Superbike homologation model. It kept the V4, gear-driven cams and single-sided swingarm idea but shared no parts with its predecessor, and moved to PGM-FI fuel injection with a new 72 x 46 mm engine. On the road it felt little faster than the RC30, but once Honda sorted its rear traction it won at Suzuka and in World Superbike.
