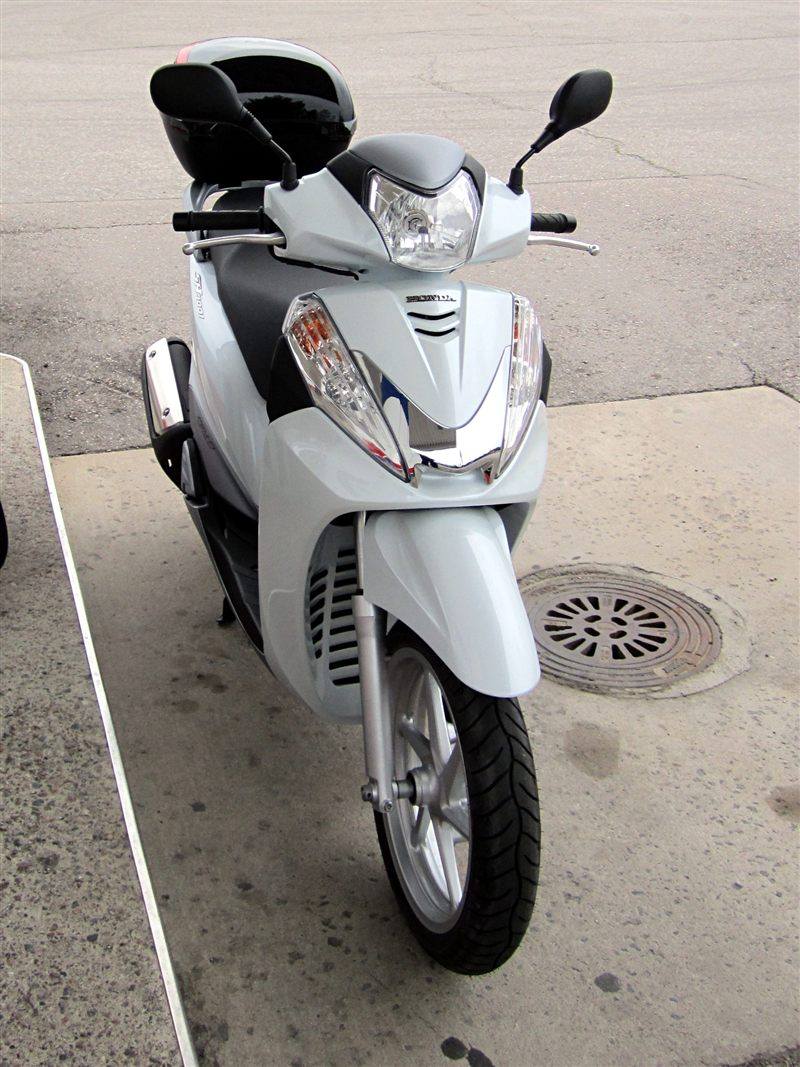

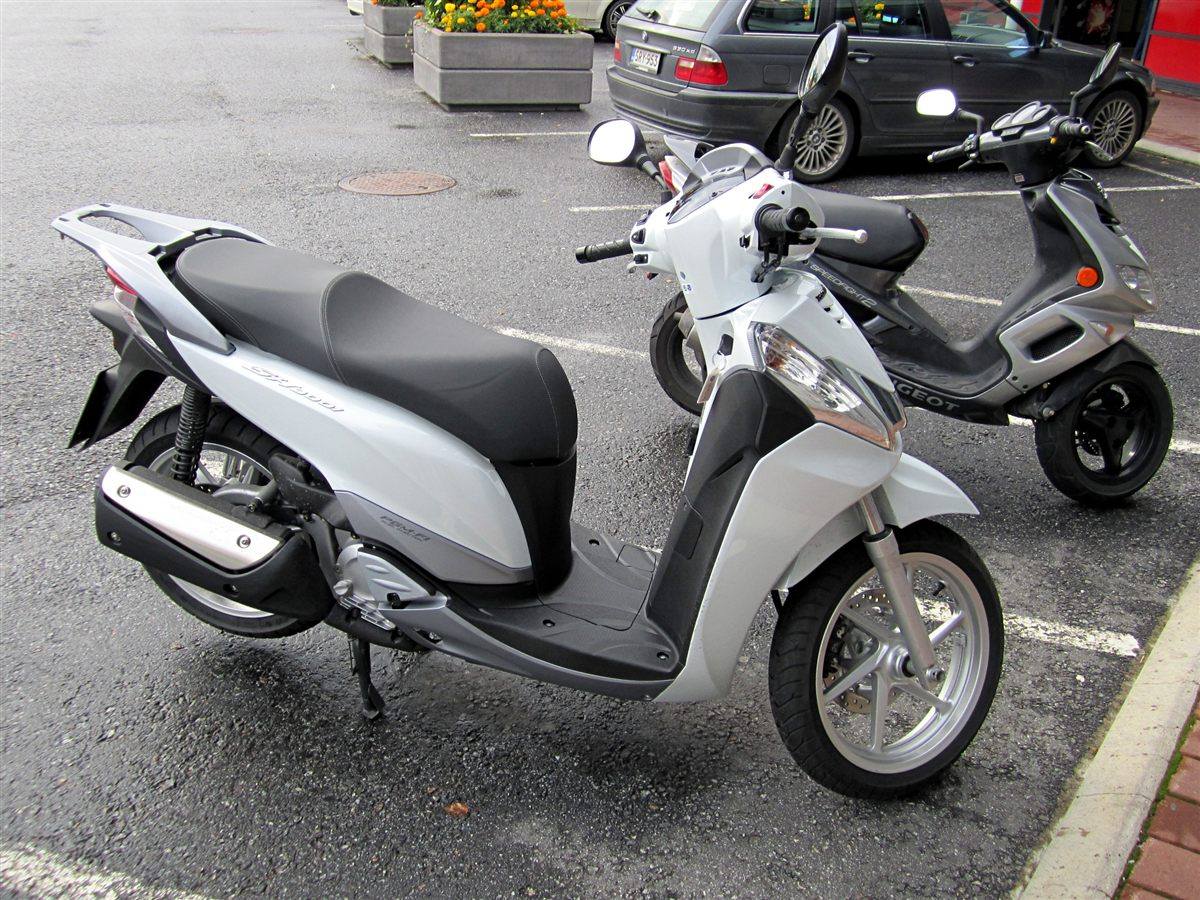

| MODEL | HONDA SH 300I 2011 - 2020 |
| Year | 2011 - 2020 |
| Engine Type | Four stroke, single cylinder, SOHC, 4 valves |
| Displacement / Capacity | 279 cc / 17.0 cu in |
| Bore X Stroke | 72 x 68.5 mm |
| Compression Ratio | 10.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 20 kW / 27.1 hp @ 8500 rpm |
| Max Torque | 26.5 Nm / 19.5 lb-ft @ 6500 rpm |
| Ignition | Digital transistorised with electronic advance |
| Induction | PGM-FI electronic fuel injection, 34 mm throttle bore |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | V-Matic automatic (CVT) |
| Clutch | Automatic, centrifugal |
| Final Drive | V-belt |
| CHASSIS SPECS | |
| Frame | Steel tube underbone |
| Front Suspension | 35 mm telescopic fork, 102 mm travel |
| Rear Suspension | Dual-damper unit swingarm, 95 mm travel |
| Front Brakes | Single 256 mm disc, 3-piston caliper, combined braking (ABS optional) |
| Rear Brakes | Single 256 mm disc, single-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2100 mm / 82.7 in |
| Overall Width | 730 mm / 28.7 in |
| Overall Height | 1220 mm / 48.0 in |
| Seat Height | 785 mm / 30.9 in |
| Wheelbase | 1422 mm / 56.0 in |
| Ground Clearance | 136 mm / 5.4 in |
| Dry Weight | 161.8 kg / 356.7 lbs |
| Wet Weight | 170 kg / 374.7 lbs |
| WHEEL SPECS | |
| Front Tyre | 110/70-16 |
| Rear Tyre | 130/70-16 |
| FUEL SYSTEM | |
| Fuel Capacity | 9.1 Litres / 2.4 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The SH300i, first launched in 2007, was the big-wheel commuter at the top of Honda's SH scooter family. The 2011 update gave it new bodywork, new wheels, a better seat and revised frame, suspension and chassis settings for sharper handling. Its 279 cc fuel-injected single gave brisk performance with a V-Matic automatic drive, combined disc brakes (ABS optional) and underseat storage. It was later updated for Euro 4 and smart-key operation before the SH350i took over in 2021.
