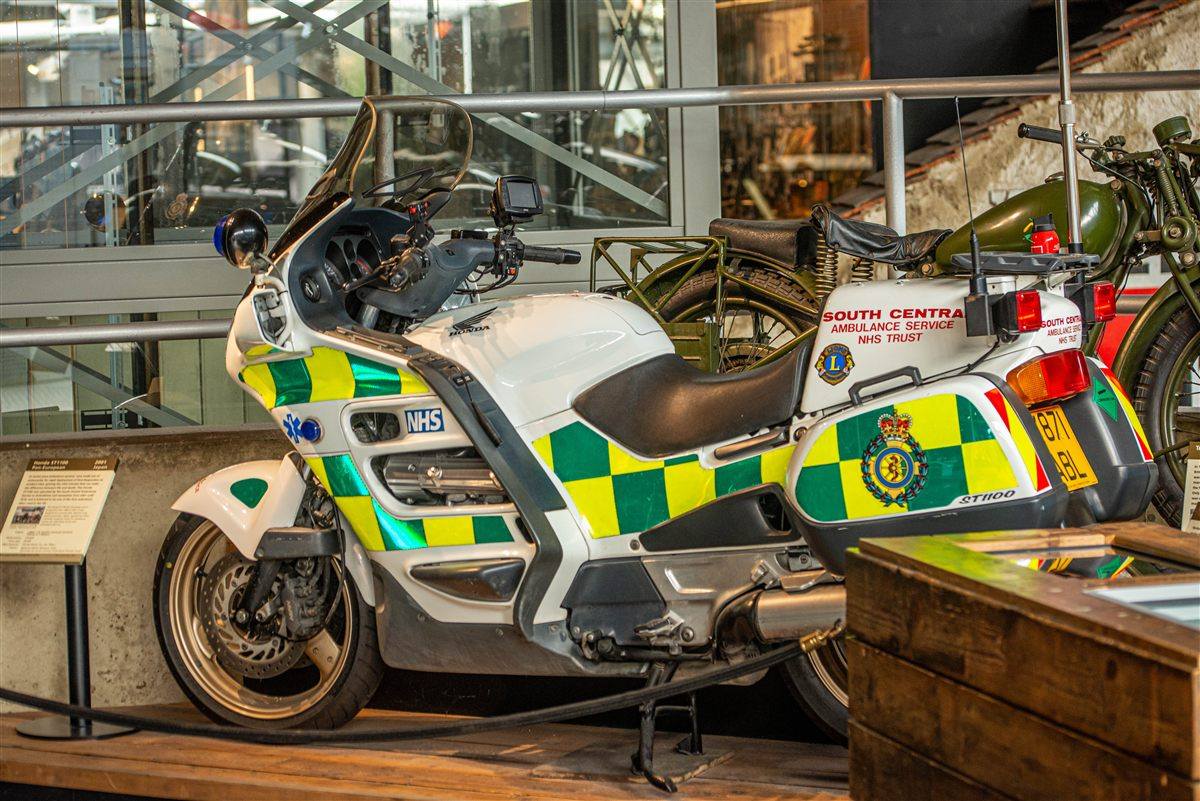

| MODEL | HONDA ST 1100 PAN EUROPEAN 1990 - 1991 |
| Year | 1990 - 1991 |
| Engine Type | Four stroke, longitudinal 90° V4, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1084 cc / 66.2 cu in |
| Bore X Stroke | 73 x 64.8 mm |
| Compression Ratio | 10.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 74 kW / 101.4 hp @ 7500 rpm |
| Max Torque | 111 Nm / 11.3 kgf-m @ 6000 rpm |
| Ignition | Computer-controlled digital transistorised |
| Induction | 4x 34.5 mm CV carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | Steel tube |
| Front Suspension | 41 mm telescopic fork |
| Rear Suspension | Single shock, adjustable preload and rebound damping |
| Front Brakes | 2x 296 mm discs, 3 piston calipers |
| Rear Brakes | Single 296 mm disc, 3 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2285 mm / 90.0 in |
| Overall Width | 935 mm / 36.8 in |
| Overall Height | 1405 mm / 55.3 in |
| Seat Height | 800 mm / 31.5 in |
| Wheelbase | 1555 mm / 61.2 in |
| Ground Clearance | — |
| Dry Weight | 283 kg / 624 lbs |
| Wet Weight | 317 kg / 699 lbs |
| WHEEL SPECS | |
| Front Tyre | 110/80 V18 |
| Rear Tyre | 160/70 V17 |
| FUEL SYSTEM | |
| Fuel Capacity | 28 Litres / 7.4 US gal |
| Fuel Consumption | 17.1 km/l |
| Top Speed | 222.3 km/h / 138.1 mph |
The original ST1100 Pan European was Honda's purpose-built long-distance sports-tourer, developed with input from its European importers for high-speed motorway travel. Its longitudinal 1084 cc V4 sat in a steel frame with shaft drive, a full fairing, a 28-litre tank and integrated panniers, trading outright sportiness for smooth, relaxed mile-eating.
