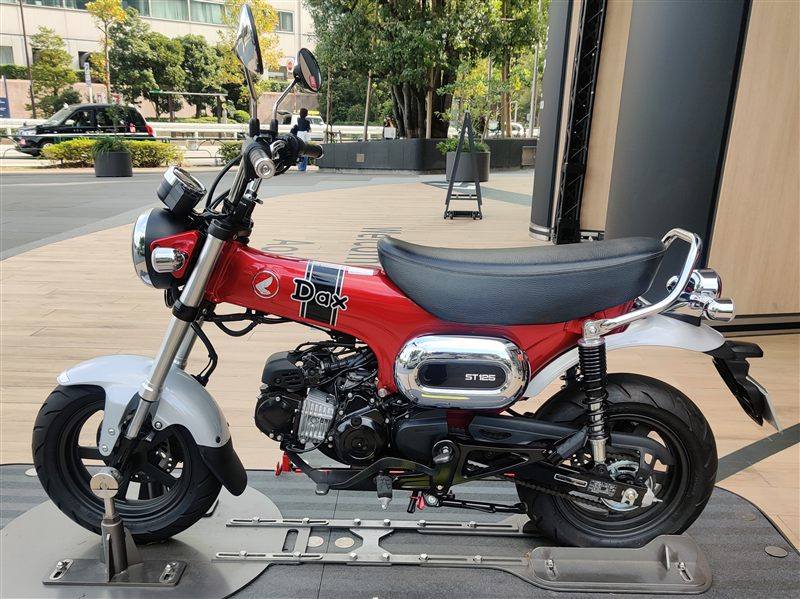

| MODEL | HONDA ST 125 DAX 2026 |
| Year | 2026 |
| Engine Type | Four stroke, single cylinder, SOHC, 2 valves |
| Displacement / Capacity | 124 cc / 7.6 cu in |
| Bore X Stroke | 50.0 x 63.1 mm |
| Compression Ratio | 10.0:1 |
| Cooling System | Air cooled |
| Max Power | 6.9 kW / 9.2 hp @ 7000 rpm |
| Max Torque | 10.8 Nm / 7.9 lb-ft @ 5000 rpm |
| Ignition | Electronic CDI |
| Induction | PGM-FI electronic fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 4 Speed rotary |
| Clutch | Wet multiplate, automatic centrifugal |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Pressed steel T-shaped backbone |
| Front Suspension | 31 mm USD telescopic forks, 100 mm travel |
| Rear Suspension | Dual shocks, 120 mm travel |
| Front Brakes | Single 220 mm hydraulic disc, IMU-based ABS |
| Rear Brakes | Single 190 mm hydraulic disc |
| DIMENSION SPECS | |
| Overall Length | 1760 mm / 69.2 in |
| Overall Width | 760 mm / 29.9 in |
| Overall Height | 1020 mm / 40.1 in |
| Seat Height | 775 mm / 30.5 in |
| Wheelbase | 1200 mm / 47.2 in |
| Ground Clearance | 180 mm / 7.0 in |
| Dry Weight | — |
| Wet Weight | 107 kg / 235.8 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70-12 51L |
| Rear Tyre | 130/70-12 56L |
| FUEL SYSTEM | |
| Fuel Capacity | 3.8 Litres / 1.0 US gal |
| Fuel Consumption | 66.7 km/l (WMTC) |
| Top Speed | — |
For 2026 the ST125 Dax carries on with the same retro T-frame, 124 cc air-cooled single and clutch-lever-free four-speed gearbox, updated to meet Euro 5+ emissions rules. Changes are mainly colours (including Pearl Horizon White) rather than hardware, keeping its role as an easy, fun two-up city bike.
