| MODEL | HONDA ST 1300 P POLICE BIKE 2005 |
| Year | 2005 |
| Engine Type | Four stroke, longitudinal 90° V-four, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1261 cc / 76.9 cu in |
| Bore X Stroke | 78 x 66 mm |
| Compression Ratio | 10.8:1 |
| Cooling System | Liquid cooled |
| Max Power | 87 kW / 118 hp @ 8000 rpm |
| Max Torque | 117 Nm / 11.93 kgf-m @ 6500 rpm |
| Ignition | Computer-controlled digital transistorised |
| Induction | PGM-FI electronic fuel injection, 36 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 5 Speed |
| Clutch | Wet, multiple discs, cable operated |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | Aluminium-alloy triple-box-section pressure-cast dual-spar, cast aluminium-alloy swingarm |
| Front Suspension | 45 mm air-assist telescopic fork, 117 mm / 4.6 in travel |
| Rear Suspension | Single-side shock, adjustable preload and rebound damping, 133 mm / 5.2 in travel |
| Front Brakes | 2 x 310 mm discs, 3-piston calipers (Combined ABS / linked) |
| Rear Brakes | Single 316 mm disc, 3-piston caliper (Combined ABS / linked) |
| DIMENSION SPECS | |
| Overall Length | 2282 mm / 89.8 in |
| Overall Width | 935 mm / 36.8 in (incl. panniers) |
| Overall Height | 1332 mm / 52.4 in |
| Seat Height | 790 mm / 31.1 in |
| Wheelbase | 1491 mm / 58.7 in |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR18 |
| Rear Tyre | 170/60 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 29 Litres / 7.7 US gal |
| Fuel Consumption | — |
| Top Speed | — |

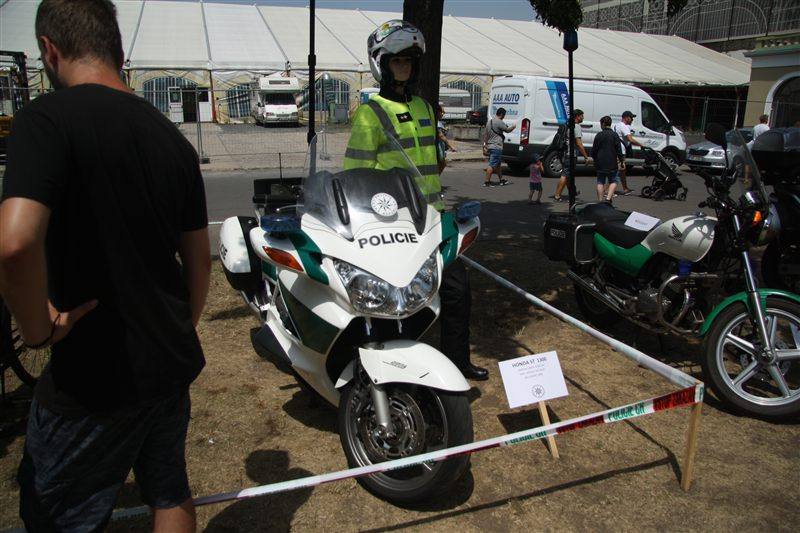

Photo: Motohide Miwa, CC BY 2.0, via Wikimedia Commons

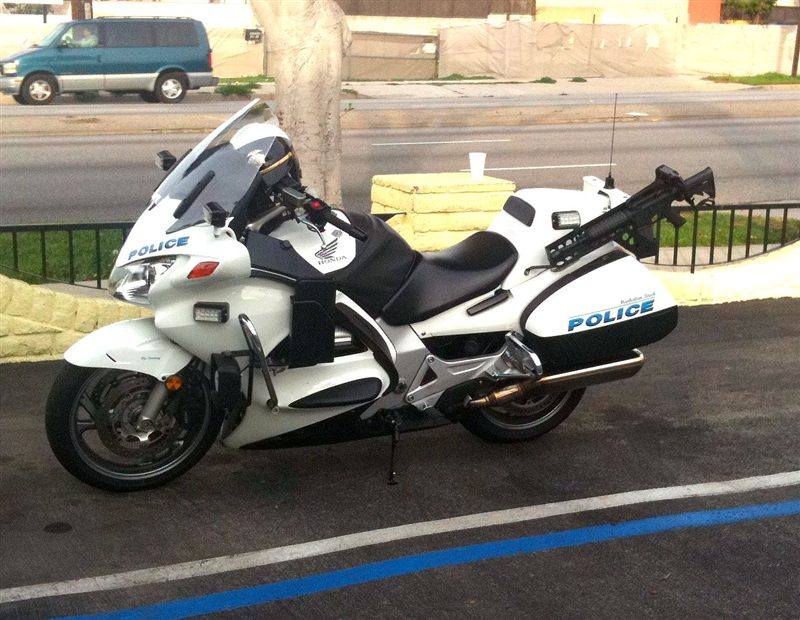

Photo: Jiří Sedláček, CC BY-SA 4.0, via Wikimedia Commons
The ST1300P was the emergency-services version of the ST1300 Pan European, using the same 1261 cc fuel-injected V4, aluminium chassis and shaft drive. It added a solo seat, raised and wider handlebars, a patrol-calibrated speedometer, mounting points for lights, sirens, antennas and radio gear, engine guards and weatherproofed electrical covers, with combined ABS braking. It served with police and ambulance services in the US, UK and across Europe.
