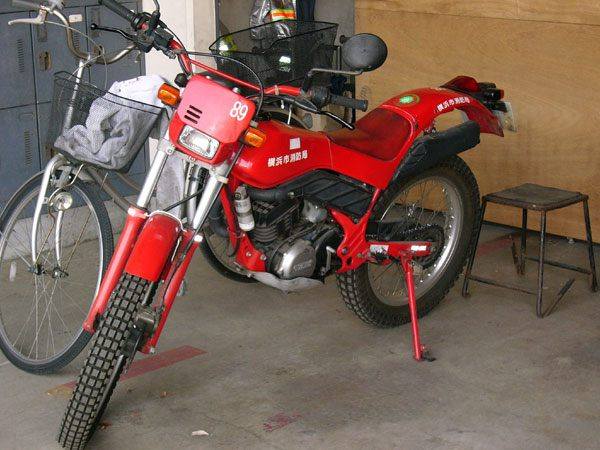

| MODEL | HONDA TLM 220R 1988 |
| Year | 1988 |
| Engine Type | Two stroke, single cylinder, piston reed valve |
| Displacement / Capacity | 216 cc / 13.2 cu in |
| Bore X Stroke | 69.0 x 58.0 mm / 2.72 x 2.28 in |
| Compression Ratio | 6.8:1 |
| Cooling System | Air cooled |
| Max Power | 9.6 kW / 13 PS @ 5500 rpm |
| Max Torque | 19.6 Nm / 2.0 kgf-m / 14.5 lb-ft @ 3500 rpm |
| Ignition | CDI magneto |
| Induction | PE63 carburettor |
| Start System | Kick |
| TRANSMISSION SPECS | |
| Lubrication | Separate oil injection, 0.6 L oil tank in frame |
| Gear Box | 6-speed, constant mesh, return shift |
| Clutch | Wet, multi-plate, coil spring |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Diamond |
| Front Suspension | Telescopic fork |
| Rear Suspension | Pro-Link swingarm, stepless compression damping adjustment |
| Front Brakes | Hydraulic disc, opposed-piston caliper |
| Rear Brakes | Mechanical leading-trailing drum |
| DIMENSION SPECS | |
| Overall Length | 2010 mm / 79.1 in |
| Overall Width | 820 mm / 32.3 in |
| Overall Height | 1080 mm / 42.5 in |
| Seat Height | 770 mm / 30.3 in |
| Wheelbase | 1320 mm / 52.0 in |
| Ground Clearance | 310 mm / 12.2 in |
| Dry Weight | 89 kg / 196 lbs |
| Wet Weight | 95 kg / 209 lbs |
| WHEEL SPECS | |
| Front Tyre | 2.75-21 4PR |
| Rear Tyre | 4.00-18 4PR |
| FUEL SYSTEM | |
| Fuel Capacity | 6 Litres / 1.6 US gal |
| Fuel Consumption | 52.3 km/L (50 km/h steady-speed test) |
| Top Speed | — |
The TLM220R replaced the TLM200R in 1988, with the two-stroke single enlarged from 193 cc to 216 cc for more mid-range torque, a heavier flywheel and a stronger, lighter-action clutch. It was the first Japanese production trials bike with a hydraulic front disc, and the rear shock gained adjustable damping. It stayed in production until 1994, when Honda stopped making road-legal trials bikes.
