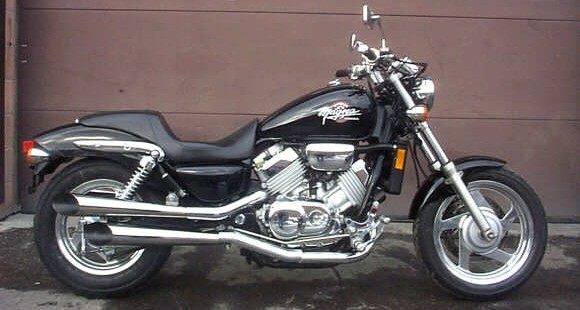

| MODEL | HONDA VF 750C MAGNA 1995 - 1996 |
| Year | 1995 - 1996 |
| Engine Type | Four stroke, 90° V-four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 748 cc / 45.6 cu in |
| Bore X Stroke | 70 x 48.6 mm |
| Compression Ratio | 10.8:1 |
| Cooling System | Liquid cooled |
| Max Power | 64.9 kW / 87 hp @ 9000 rpm |
| Max Torque | 69.6 Nm / 51.3 lb-ft @ 7250 rpm |
| Ignition | CDI |
| Induction | 4x 32 mm Keihin CV carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 5 Speed |
| Clutch | Wet, multiplate |
| Final Drive | 530 chain, 40/16 |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 41 mm air-assisted forks, 120 mm / 4.7 in travel |
| Rear Suspension | Dual shocks, spring preload adjustable, 100 mm / 3.9 in travel |
| Front Brakes | Single 315 mm disc |
| Rear Brakes | 180 mm drum |
| DIMENSION SPECS | |
| Overall Length | 2514 mm / 93 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 710 mm / 28 in |
| Wheelbase | 1651 mm / 65 in |
| Ground Clearance | — |
| Dry Weight | 228 kg / 504 lbs |
| Wet Weight | 249 kg / 550 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/80-17, tubeless |
| Rear Tyre | 150/80-15, tubeless |
| FUEL SYSTEM | |
| Fuel Capacity | 13 Litres / 3.5 US gal |
| Fuel Consumption | — |
| Top Speed | — |
For 1995-96 the VFR-engined Magna continued with the same low cradle frame, five-speed gearbox, chain drive and four-pipe megaphone exhausts introduced in 1993. Changes were mostly to colours, and the bike kept its reputation as a hot-rod cruiser with a high-revving V-four instead of a V-twin.
