Honda Vfr 1200F / Dct 2014 Specs & Photos

Spec sheet

MODEL	HONDA VFR 1200F / DCT 2014
Year	2014
Engine Type	Four stroke, 76° V4, SOHC (Unicam), 4 valves per cylinder
Displacement / Capacity	1237 cc / 75.4 cu in
Bore X Stroke	81 x 60 mm
Compression Ratio	12.0:1
Cooling System	Liquid cooled
Max Power	127 kW / 170 hp @ 10000 rpm
Max Torque	129 Nm / 95.1 lb-ft @ 8750 rpm
Ignition	Digital transistorized with electronic advance
Induction	PGM-FI electronic fuel injection
Start System	Electric
TRANSMISSION SPECS
Lubrication	—
Gear Box	6 Speed manual, or 6 Speed dual-clutch transmission (DCT) with two automatic modes and manual mode
Clutch	Wet, multi-plate slipper type, hydraulically operated
Final Drive	Shaft
CHASSIS SPECS
Frame	Twin-spar cast aluminium; single-sided aluminium swingarm
Front Suspension	41 mm inverted HMAS cartridge telescopic fork, adjustable spring preload, 120 mm / 4.7 in travel
Rear Suspension	Pro-Link HMAS gas shock, 25-position spring preload adjustment, 120 mm / 4.7 in travel
Front Brakes	2 x 320 mm floating discs, 6-piston radial calipers, Combined ABS
Rear Brakes	Single 276 mm disc, 2-piston caliper, Combined ABS
DIMENSION SPECS
Overall Length	2244 mm / 88.3 in
Overall Width	752 mm / 29.6 in
Overall Height	1222 mm / 48.1 in
Seat Height	815 mm / 32.1 in
Wheelbase	1545 mm / 60.8 in
Ground Clearance	—
Dry Weight	—
Wet Weight	267 kg / 589 lbs (manual); 277 kg / 611 lbs (DCT)
WHEEL SPECS
Front Tyre	120/70 ZR17 M/C (58W)
Rear Tyre	190/55 ZR17 M/C (75W)
FUEL SYSTEM
Fuel Capacity	18.5 Litres / 4.9 US gal
Fuel Consumption	17.8 km/l
Top Speed	251.2 km/h / 156 mph

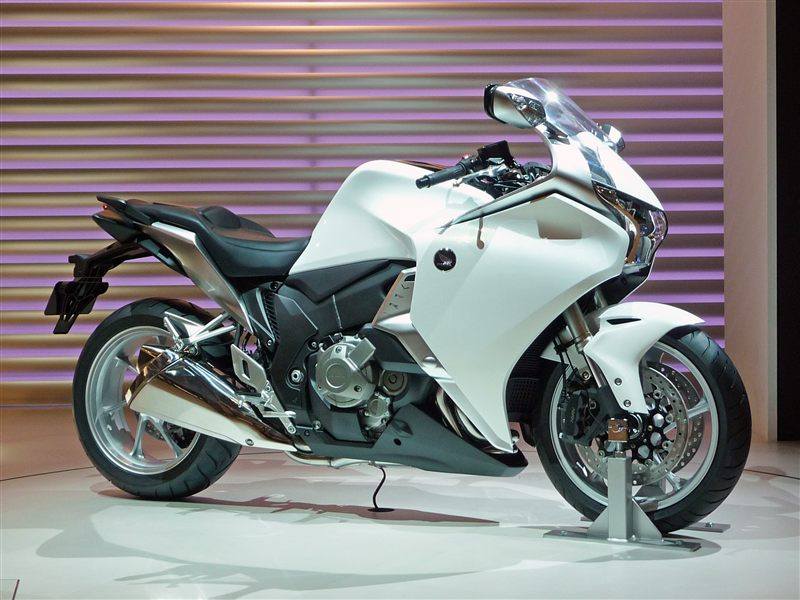

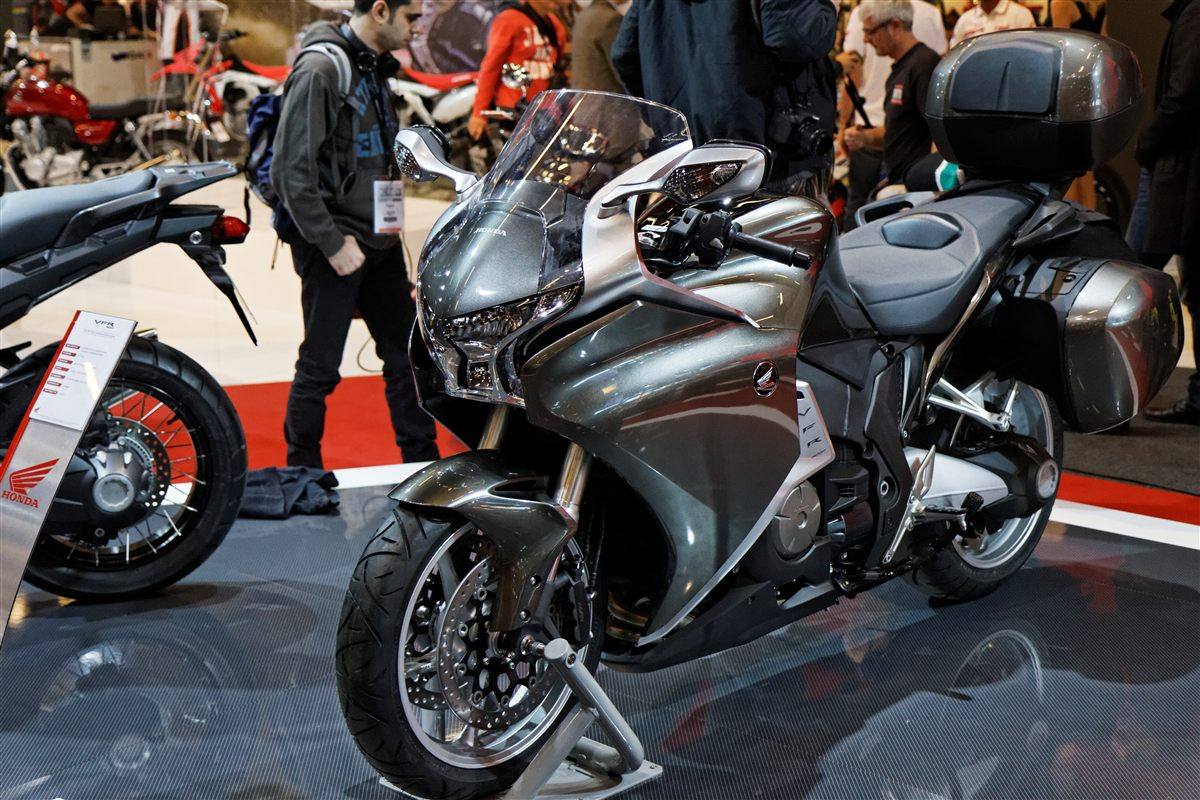

Photo gallery

Photo: PekePON, CC BY-SA 4.0, via Wikimedia Commons

Honda file

By 2014 the VFR1200F was offered in manual and DCT forms with combined ABS and traction control as standard, and the range had been joined by the VFR1200X Crosstourer adventure model using a detuned version of the same engine. The road bike itself was little changed from the 2012 update.

HONDA VFR 1200F / DCT 2014
