| MODEL | HONDA VFR 1200X CROSSTOURER 2014 |
| Year | 2014 |
| Engine Type | Four stroke, 76° V-4, SOHC, 4 valves per cylinder |
| Displacement / Capacity | 1237 cc / 69.2 cu in |
| Bore X Stroke | 81 x 60 mm |
| Compression Ratio | 12.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 95 kW / 127 hp @ 7750 rpm |
| Max Torque | 126 Nm / 92.9 lb-ft @ 6500 rpm |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Induction | PGM-FI electronic fuel injection, 44 mm throttle bore |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed (Dual Clutch Transmission optional) |
| Clutch | Wet, multiplate |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | Diamond; aluminium twin-spar |
| Front Suspension | 43 mm inverted telescopic forks, hydraulic damping, preload and rebound adjustable |
| Rear Suspension | Pro-Link with gas-charged damper, preload and stepless rebound damping adjustment |
| Front Brakes | 2x 310 mm discs, ABS |
| Rear Brakes | Single 276 mm disc, ABS |
| DIMENSION SPECS | |
| Overall Length | 2285 mm / 90.0 in |
| Overall Width | 915 mm / 36.0 in |
| Overall Height | 1335 mm / 52.6 in |
| Seat Height | 850 mm / 33.5 in |
| Wheelbase | 1595 mm / 62.8 in |
| Ground Clearance | 180 mm / 7.1 in |
| Dry Weight | — |
| Wet Weight | 275 kg / 610 lbs |
| WHEEL SPECS | |
| Front Tyre | 110/80-R19 |
| Rear Tyre | 150/70-R17 |
| FUEL SYSTEM | |
| Fuel Capacity | 21 Litres / 5.6 US gal |
| Fuel Consumption | — |
| Top Speed | — |

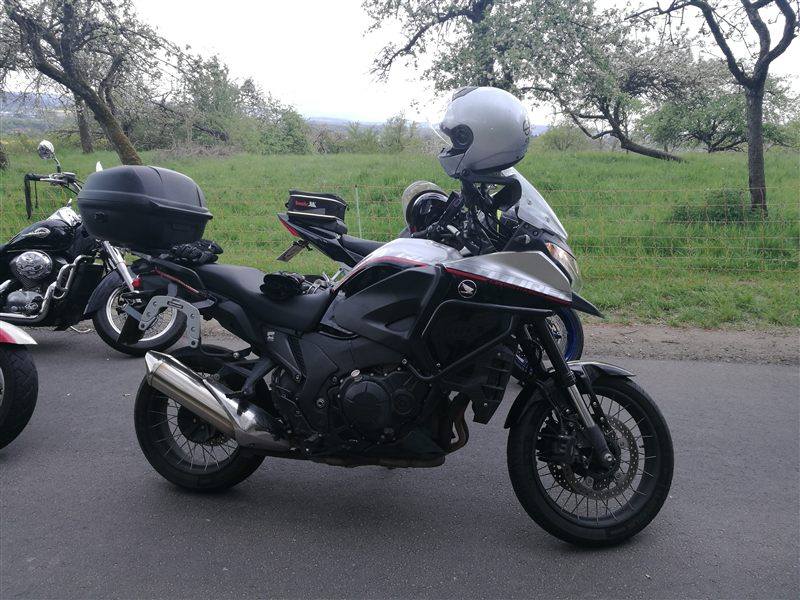

Photo: Thesupermat, CC BY-SA 3.0, via Wikimedia Commons
Photo: Cweinandt, CC BY-SA 4.0, via Wikimedia Commons
For 2014 the Crosstourer was again listed with the same figures as before. It is a large V4 adventure-tourer aimed at long highway trips and broken roads rather than serious off-road riding. Hand guards, an adjustable screen and an integrated luggage rack were part of the package.
