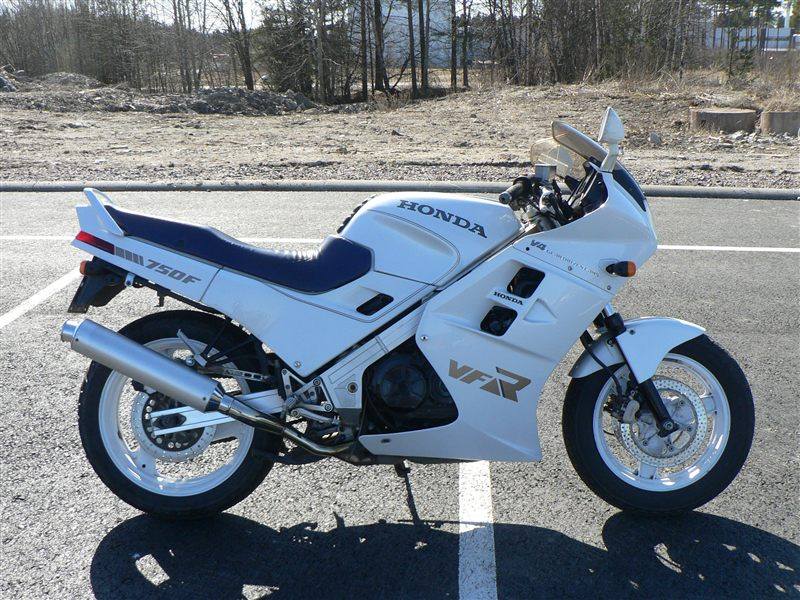

| MODEL | HONDA VFR 750F-G 1986 |
| Year | 1986 |
| Engine Type | Four stroke, 90° V-four cylinder, gear-driven DOHC, 4 valves per cylinder |
| Displacement / Capacity | 748 cc / 45.6 cu in |
| Bore X Stroke | 70 x 48.6 mm |
| Compression Ratio | 10.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 77.4 kW / 106 hp @ 10500 rpm |
| Max Torque | 66 Nm / 6.7 kgf-m / 48.7 lb-ft @ 7500 rpm |
| Ignition | Transistorized |
| Induction | 4x 34.5 mm Keihin VD carburetors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Forced pressure, wet sump |
| Gear Box | 6 Speed |
| Clutch | Wet multiplate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Aluminium twin-spar |
| Front Suspension | 37 mm Showa air-assisted telescopic fork with TRAC anti-dive, 140 mm / 5.5 in travel |
| Rear Suspension | Pro-Link, preload adjustable with remote adjuster, 105 mm / 4.1 in travel |
| Front Brakes | 2x 276 mm discs, 2 piston calipers |
| Rear Brakes | Single 256 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | 1475 mm / 58.1 in |
| Ground Clearance | — |
| Dry Weight | 198 kg / 437 lbs |
| Wet Weight | 222 kg / 489.4 lbs |
| WHEEL SPECS | |
| Front Tyre | 110/90 V16 |
| Rear Tyre | 130/80 V18 |
| FUEL SYSTEM | |
| Fuel Capacity | 20 Litres / 5.3 US gal |
| Fuel Consumption | 5.3 L/100 km / 18.6 km/l / 44 US mpg |
| Top Speed | 237 km/h / 147 mph |
The 1986 VFR750F (RC24) was a ground-up replacement for the VF750F Interceptor, whose cam-chain-driven V4 had earned a poor reliability record. Honda kept the 90-degree V4 layout but switched to gear-driven camshafts, a 180-degree crank and a light aluminium twin-spar frame, with 16-inch front and 18-inch rear wheels. It quickly became the benchmark all-round sports bike of its day.
