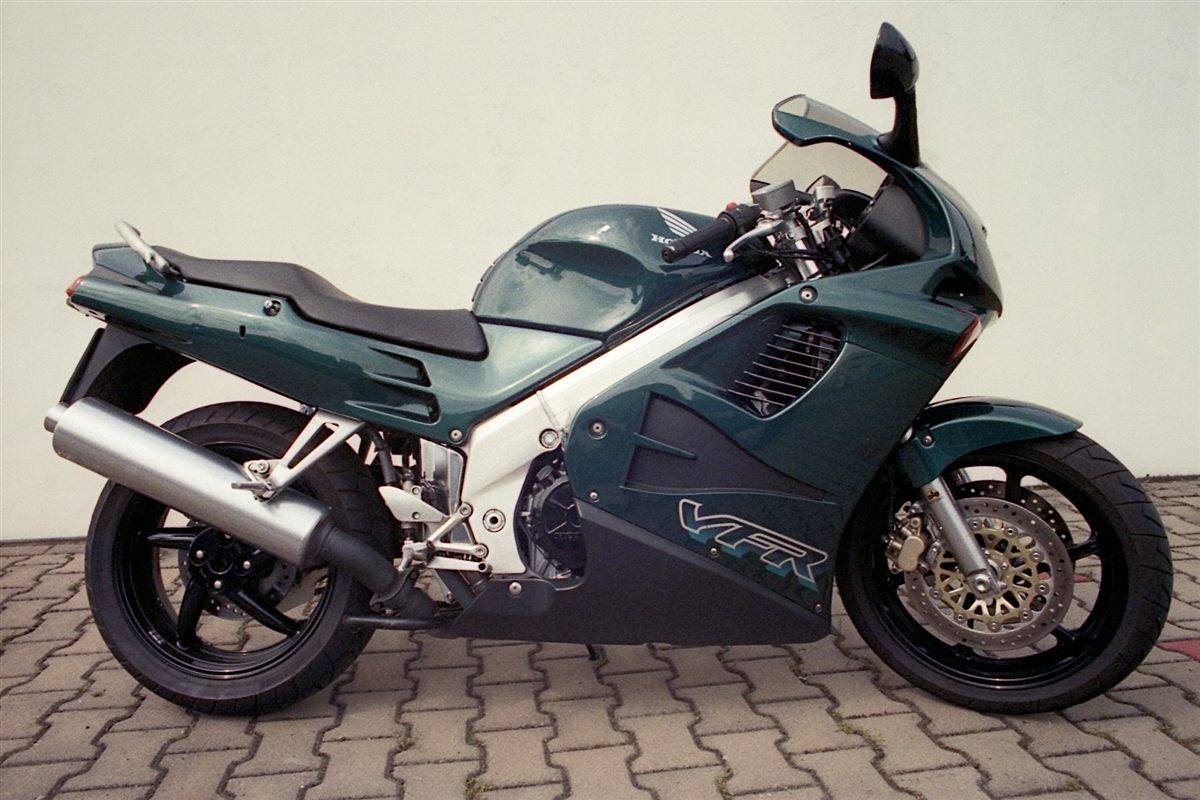

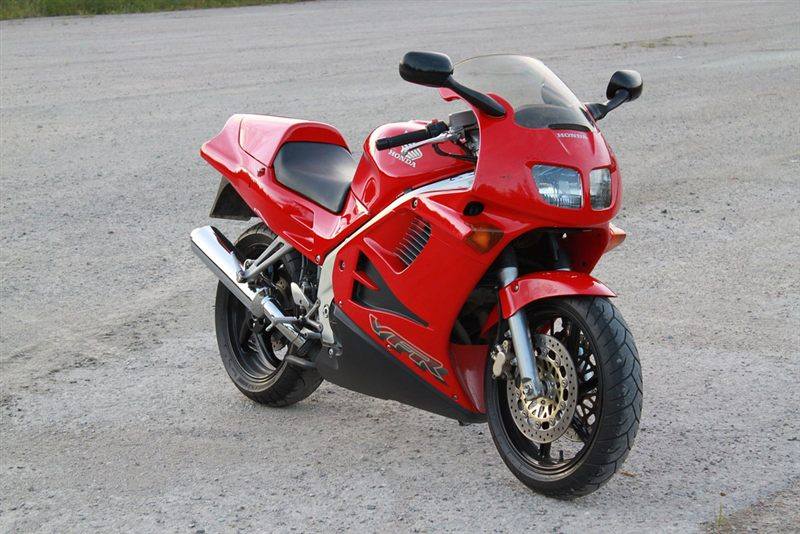

| MODEL | HONDA VFR 750F-V 1997 |
| Year | 1997 |
| Engine Type | Four stroke, 90° V-four cylinder, gear-driven DOHC, 4 valves per cylinder |
| Displacement / Capacity | 748 cc / 45.6 cu in |
| Bore X Stroke | 70 x 48.6 mm |
| Compression Ratio | 11.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 76.6 kW / 105 hp @ 10000 rpm |
| Max Torque | 72.6 Nm / 7.4 kgf-m / 53.5 lb-ft @ 8000 rpm |
| Ignition | Digital full transistor ignition |
| Induction | 4x 36 mm Keihin CV carburetors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 Speed |
| Clutch | Wet, multiple discs, cable operated |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Aluminium twin-spar |
| Front Suspension | 41 mm telescopic fork, no external adjustment, 140 mm / 5.5 in travel |
| Rear Suspension | Pro-Link with single-sided Pro-Arm swingarm, adjustable preload, 130 mm / 5.1 in travel |
| Front Brakes | 2x 296 mm discs, 2 piston calipers |
| Rear Brakes | Single 256 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 800 mm / 31.5 in |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | 209 kg / 461 lbs |
| Wet Weight | 226 kg / 498 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 VR17 |
| Rear Tyre | 170/60 VR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 21 Litres / 5.5 US gal |
| Fuel Consumption | 6.3 L/100 km / 15.8 km/l / 37.2 US mpg |
| Top Speed | 232.7 km/h / 144.6 mph |
The 1997 V-model was the final year of the carburetted VFR750F, unchanged in substance from the 1994-96 RC36-II. Production ended that year and the line moved on to the fuel-injected 781 cc VFR800Fi in 1998.
