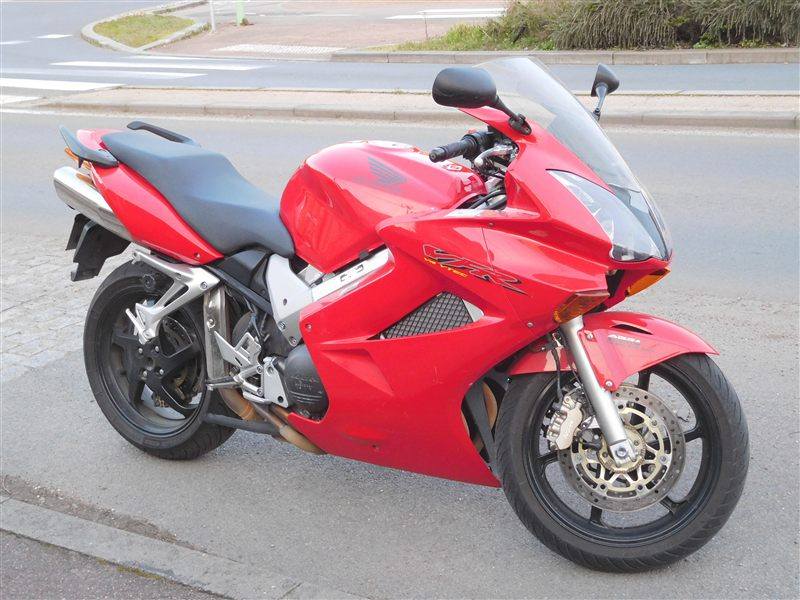

| MODEL | HONDA VFR 800F V-TEC ABS 2009 |
| Year | 2009 |
| Engine Type | Four stroke, 90° V-four cylinder, DOHC, 4 valves per cylinder, VTEC |
| Displacement / Capacity | 781.7 cc / 47.7 cu in |
| Bore X Stroke | 72 x 48 mm |
| Compression Ratio | 11.6:1 |
| Cooling System | Liquid cooled |
| Max Power | 80 kW / 109 PS @ 10500 rpm |
| Max Torque | 80 Nm / 59 lb-ft @ 8750 rpm |
| Ignition | — |
| Induction | PGM-FI electronic fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 Speed |
| Clutch | Wet, multiple discs |
| Final Drive | #530 O-ring-sealed chain |
| CHASSIS SPECS | |
| Frame | Aluminium, twin spar |
| Front Suspension | 43 mm H.M.A.S. cartridge-type telescopic fork, spring-preload adjustable |
| Rear Suspension | Pro-Arm single-sided swingarm, Pro-Link gas-charged H.M.A.S. damper, preload and rebound adjustable, 120 mm / 4.7 in travel |
| Front Brakes | 2x 296 mm discs, 3-piston calipers (linked) |
| Rear Brakes | Single 256 mm disc, 3-piston caliper (linked) |
| DIMENSION SPECS | |
| Overall Length | 2120 mm / 83.5 in |
| Overall Width | 735 mm / 28.9 in |
| Overall Height | 1195 mm / 47.0 in |
| Seat Height | 805 mm / 31.7 in |
| Wheelbase | 1440 mm / 56.7 in |
| Ground Clearance | — |
| Dry Weight | 218 kg / 480.6 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 22 Litres / 5.8 US gal |
| Fuel Consumption | — |
| Top Speed | 244 km/h / 152 mph |

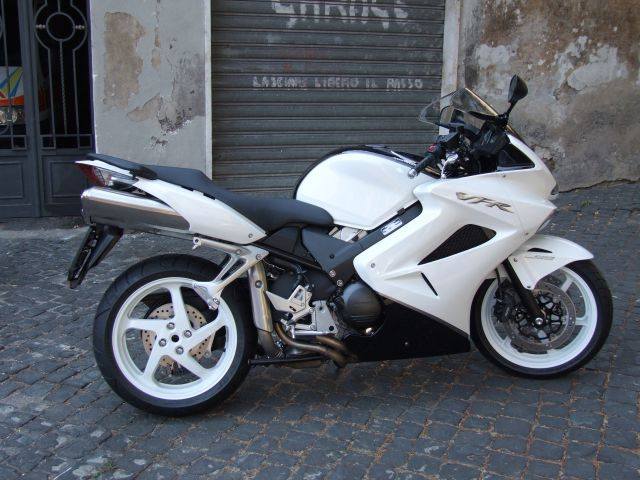

For 2009 the VFR800 V-TEC ABS saw little more than a new white colour option. It leaned further toward comfortable touring than outright sport, and in the US it was the final model year before the larger VFR1200F took over the line.
